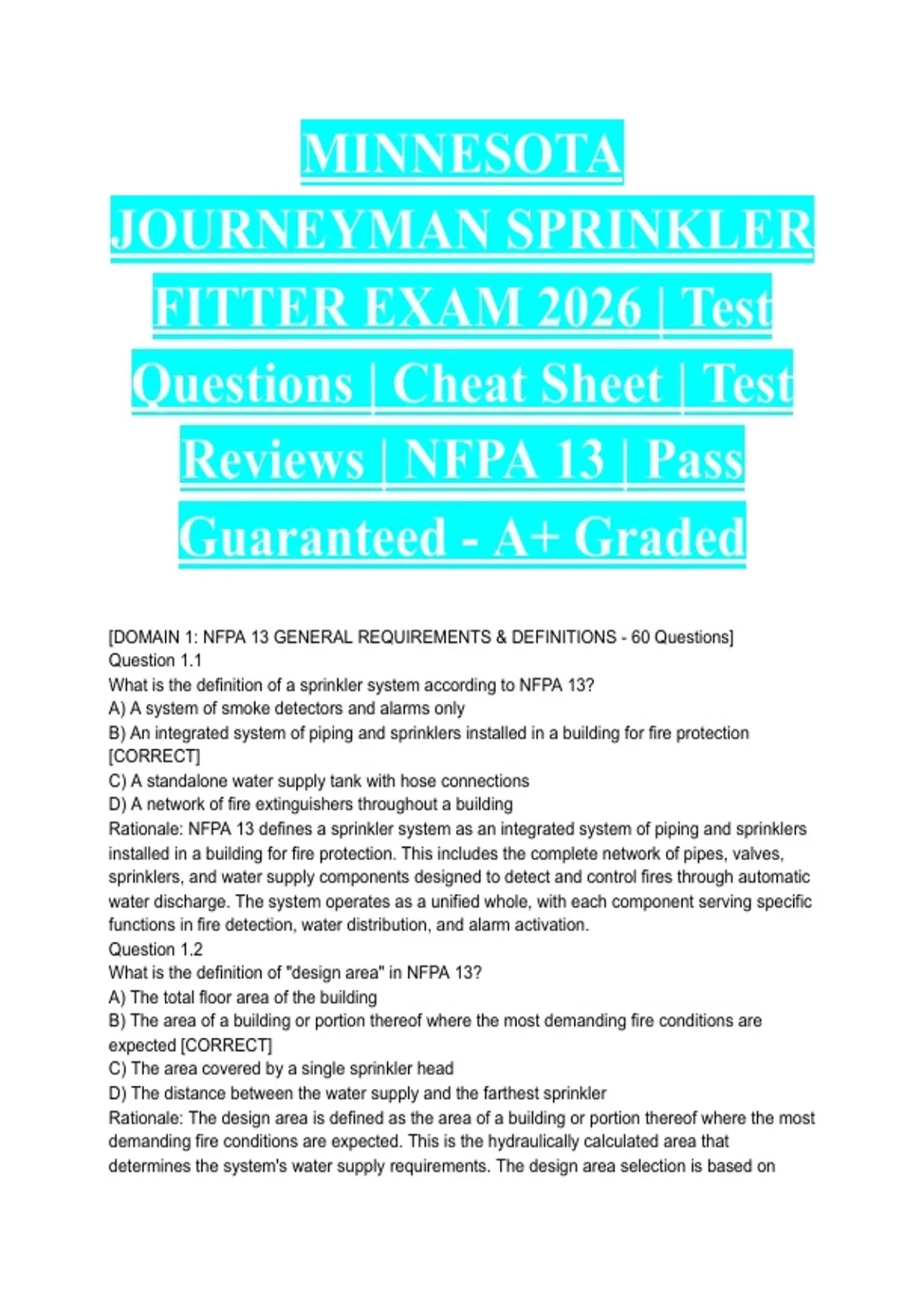

INNESOTA
M
JOURNEYMAN SPRINKLER
FITTER EXAM 2026 | Test
Questions | Cheat Sheet | Test
Reviews | NFPA 13 | Pass
Guaranteed - A+ Graded
[DOMAIN 1: NFPA 13 GENERAL REQUIREMENTS & DEFINITIONS - 60 Questions]
Question 1.1
What is the definition of a sprinkler system according to NFPA 13?
A) A system of smoke detectors and alarms only
B) An integrated system of piping and sprinklers installed in a building for fire protection
[CORRECT]
C) A standalone water supply tank with hose connections
D) A network of fire extinguishers throughout a building
Rationale: NFPA 13 defines a sprinkler system as an integrated system of piping and sprinklers
installed in a building for fire protection. This includes the complete network of pipes, valves,
sprinklers, and water supply components designed to detect and control fires through automatic
water discharge. The system operates as a unified whole, with each component serving specific
functions in fire detection, water distribution, and alarm activation.
Question 1.2
What is the definition of "design area" in NFPA 13?
A) The total floor area of the building
B) The area of a building or portion thereof where the most demanding fire conditions are
expected [CORRECT]
C) The area covered by a single sprinkler head
D) The distance between the water supply and the farthest sprinkler
Rationale: The design area is defined as the area of a building or portion thereof where the most
demanding fire conditions are expected. This is the hydraulically calculated area that
determines the system's water supply requirements. The design area selection is based on
, ccupancy classification, hazard level, and building configuration, representing the worst-case
o
scenario that the system must be capable of controlling. NFPA 13 provides specific criteria for
determining design area size and location based on these factors.
Question 1.3
What is the definition of "density" in sprinkler system design?
A) The weight of the pipe material per foot
B) The flow rate of water per square foot of floor area (gpm/ft²) [CORRECT]
C) The number of sprinklers per room
D) The pressure in the water main
Rationale: Density is defined as the flow rate of water per square foot of floor area, expressed in
gallons per minute per square foot (gpm/ft²). This is a fundamental design parameter in NFPA
13 that determines how much water must be applied over the design area to control a fire.
Different occupancy classifications have different density requirements, ranging from 0.1 gpm/ft²
for light hazard to higher densities for extra hazard occupancies. The density requirement
directly impacts hydraulic calculations and water supply sizing.
Question 1.4
What is the definition of "remote area"?
A) The area farthest from the fire department connection
B) The area of the system hydraulically most demanding, located in the most remote portion of
the system [CORRECT]
C) The area with the highest ceiling
D) The area with the most sprinklers installed
Rationale: The remote area is the area of the system that is hydraulically most demanding,
typically located in the most remote portion of the system from the water supply. This area
requires the highest pressure and flow due to friction loss in the piping network and elevation
changes. NFPA 13 hydraulic calculations must demonstrate that the system can deliver the
required density over the remote area with adequate pressure at the most demanding sprinkler,
ensuring system performance regardless of fire location within the protected area.
Question 1.5
What is the temperature rating range for "Ordinary" temperature sprinklers?
A) 100-125°F
B) 135-170°F [CORRECT]
C) 175-225°F
D) 250-300°F
Rationale: Ordinary temperature sprinklers have a temperature rating of 135-170°F. These are
the most common sprinklers used in typical building environments where normal ambient
temperatures do not exceed 100°F. The 135°F minimum provides a safety margin above normal
building temperatures (typically 70-80°F), while the 170°F maximum ensures activation before
flashover conditions. Selection of the proper temperature rating is critical to prevent premature
activation from normal heat sources or delayed activation in fire conditions.
Question 1.6
What is the temperature rating range for "Intermediate" temperature sprinklers?
A) 135-170°F
B) 175-225°F [CORRECT]
, ) 250-300°F
C
D) 325-375°F
Rationale: Intermediate temperature sprinklers are rated for 175-225°F. These are used in areas
where ambient temperatures may be elevated, such as near uninsulated skylights, attics, or
boiler rooms, but where temperatures do not reach the levels requiring high-temperature
sprinklers. The intermediate rating provides protection in moderately hot environments while still
ensuring fire-responsive activation. Proper temperature selection prevents nuisance activations
from normal environmental heat while ensuring timely response to actual fire conditions.
Question 1.7
What is the temperature rating range for "High" temperature sprinklers?
A) 175-225°F
B) 250-300°F [CORRECT]
C) 325-375°F
D) 400-475°F
Rationale: High temperature sprinklers are rated for 250-300°F. These are installed in areas with
high normal ambient temperatures, such as commercial kitchens, drying ovens, or industrial
processes generating significant heat. The higher rating accommodates these environmental
conditions while still providing fire protection. Selection must balance the need to avoid
activation from process heat against the requirement for timely fire suppression, considering the
specific hazards and normal operating conditions of the protected space.
Question 1.8
What is the temperature rating range for "Extra High" temperature sprinklers?
A) 250-300°F
B) 325-375°F [CORRECT]
C) 400-475°F
D) 500-575°F
Rationale: Extra High temperature sprinklers are rated for 325-375°F. These specialized
sprinklers are used in extremely high-temperature environments such as foundries,
metalworking facilities, or areas near high-temperature industrial equipment. The very high
activation temperature accommodates severe environmental conditions while still providing
automatic fire protection. These sprinklers are rarely used in typical commercial or residential
applications and require careful engineering analysis to ensure they will activate in actual fire
conditions despite the high ambient temperatures.
Question 1.9
What is the temperature rating range for "Very Extra High" temperature sprinklers?
A) 325-375°F
B) 400-475°F [CORRECT]
C) 500-575°F
D) 650-750°F
Rationale: Very Extra High temperature sprinklers are rated for 400-475°F. These are among
the highest temperature-rated sprinklers available for standard fire protection applications, used
in extreme environments such as glass manufacturing, steel mills, or areas adjacent to
high-temperature furnaces. The selection of such high-temperature sprinklers requires careful
