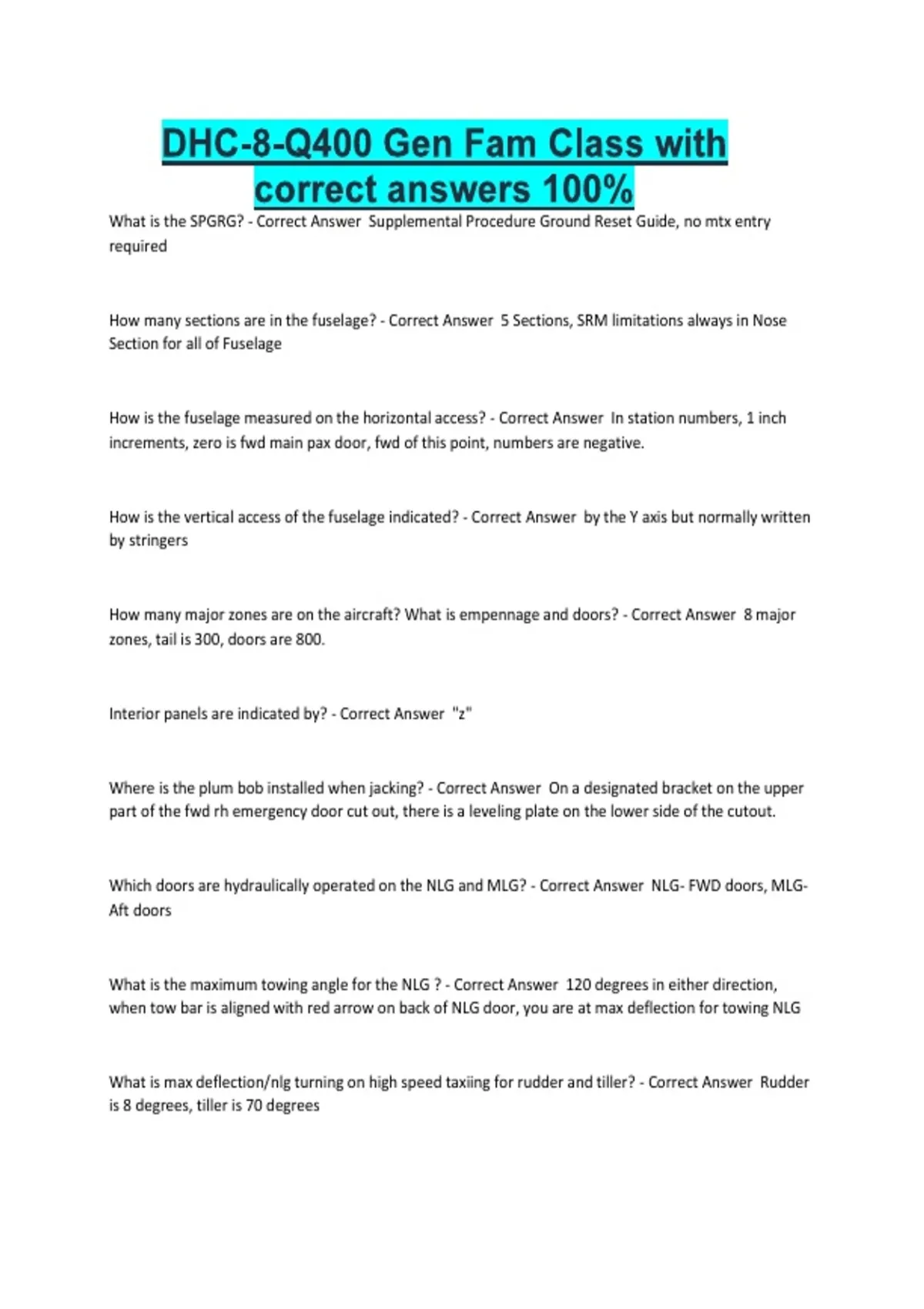

What is the SPGRG? - Correct Answer Supplemental Procedure Ground Reset Guide, no mtx entry
required
How many sections are in the fuselage? - Correct Answer 5 Sections, SRM limitations always in Nose
Section for all of Fuselage
How is the fuselage measured on the horizontal access? - Correct Answer In station numbers, 1 inch
increments, zero is fwd main pax door, fwd of this point, numbers are negative.
How is the vertical access of the fuselage indicated? - Correct Answer by the Y axis but normally written
by stringers
How many major zones are on the aircraft? What is empennage and doors? - Correct Answer 8 major
zones, tail is 300, doors are 800.
Interior panels are indicated by? - Correct Answer "z"
Where is the plum bob installed when jacking? - Correct Answer On a designated bracket on the upper
part of the fwd rh emergency door cut out, there is a leveling plate on the lower side of the cutout.
Which doors are hydraulically operated on the NLG and MLG? - Correct Answer NLG- FWD doors, MLG-
Aft doors
What is the maximum towing angle for the NLG ? - Correct Answer 120 degrees in either direction,
when tow bar is aligned with red arrow on back of NLG door, you are at max deflection for towing NLG
What is max deflection/nlg turning on high speed taxiing for rudder and tiller? - Correct Answer Rudder
is 8 degrees, tiller is 70 degrees
, What has the largest turning radius on the aircraft while towing? - Correct Answer Wing tips
How do you lock the landing gear in position for MTX or while parked? - Correct Answer MLG has pins
behind FO near castor lock pin for NLG axel jacking, NLG has handle on outside of nose, above dc power
connection, pull handle, turn clockwise to lock NLG in down position.
Where are the pins to lock landing gear doors? - Correct Answer FWD PAX door near or on
Where are the grounding points for parking and MTX on the aircraft? - Correct Answer On each MLG
drag strut
The lower side of the Vertical LE makes up what antenna? - Correct Answer HF antenna
Which trimming tab on the ailerons is a ground adjustable trim ? - Correct Answer RH inner tab, if
disconnect, require FCF and Pilot buyback
The engine nacelle has how many sections? - Correct Answer 3; fwd-engine, mid-wheel well/hydro, and
aft-exhaust
Where does the air go in the engine intake? - Correct Answer 25% goes through, exhaust, 75% used for
AC and engine functions
What system does the engine use to prevent damage on the engine mounts caused by the high torque
of the rotating prop? - Correct Answer HTCS Hydraulic Torque Compensation System
What pressurized door has no indication sensors on it? - Correct Answer Flight deck escape hatch
How many sensors are on the doors in total? And which door only has one sensor? - Correct Answer 11
in total, emergency exit door on rh fwd fuselage.
Which two doors have pressurized seals? - Correct Answer FWD pax door and Aft cargo door
