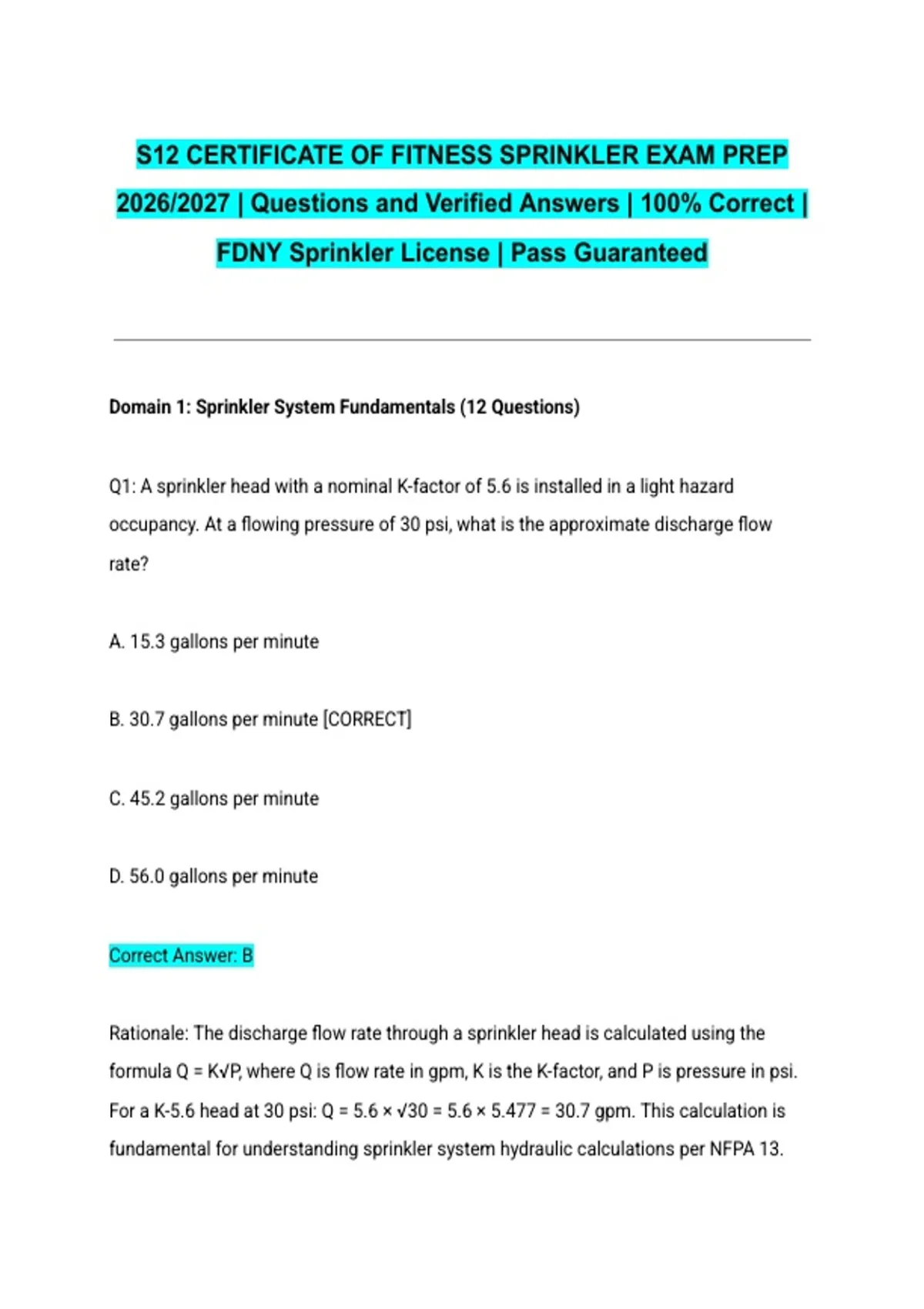

S12 CERTIFICATE OF FITNESS SPRINKLER EXAM PREP
2026/2027 | Questions and Verified Answers | 100% Correct |
FDNY Sprinkler License | Pass Guaranteed
Domain 1: Sprinkler System Fundamentals (12 Questions)
Q1: A sprinkler head with a nominal K-factor of 5.6 is installed in a light hazard
occupancy. At a flowing pressure of 30 psi, what is the approximate discharge flow
rate?
A. 15.3 gallons per minute
B. 30.7 gallons per minute [CORRECT]
C. 45.2 gallons per minute
D. 56.0 gallons per minute
Correct Answer: B
Rationale: The discharge flow rate through a sprinkler head is calculated using the
formula Q = K√P, where Q is flow rate in gpm, K is the K-factor, and P is pressure in psi.
For a K-5.6 head at 30 psi: Q = 5.6 × √30 = 5.6 × 5.477 = 30.7 gpm. This calculation is
fundamental for understanding sprinkler system hydraulic calculations per NFPA 13.
,Option A incorrectly uses linear multiplication (5.6 × 30 ÷ 11). Option C uses the wrong
square root value. Option D confuses the K-factor with the flow rate at 100 psi.
Q2: During a routine inspection, you observe glass bulb sprinkler heads with orange
color coding. What temperature rating do these heads have?
A. 135°F (57°C)
B. 155°F (68°C)
C. 175°F (79°C)
D. 200°F (93°C) [CORRECT]
Correct Answer: D
Rationale: Per NFPA 13, glass bulb sprinkler heads use standardized color coding for
temperature ratings: Orange indicates 200°F (93°C). Red indicates 155°F (68°C), yellow
indicates 175°F (79°C), and green indicates 200°F (93°C) for certain head types. The
S12 Certificate of Fitness holder must be able to identify temperature ratings for proper
system maintenance. Option A (135°F) is uncoded or natural brass. Option B (155°F) is
red. Option C (175°F) is yellow. Failure to recognize temperature ratings can result in
improper head replacement and system failure during fire conditions.
,Q3: A building owner asks why their ordinary hazard occupancy requires a higher
sprinkler design density than a light hazard occupancy. What is the primary technical
reason?
A. Ordinary hazard occupancies have higher ceiling heights requiring greater water
distribution
B. Ordinary hazard occupancies contain higher fuel loads and faster fire growth rates
[CORRECT]
C. Ordinary hazard occupancies use different pipe materials requiring higher pressure
D. Ordinary hazard occupancies have less reliable water supplies
Correct Answer: B
Rationale: NFPA 13 establishes design densities based on occupancy hazard
classification. Ordinary hazard occupancies (Group 2) contain moderate quantities of
combustible materials with moderate rates of heat release, requiring 0.20 gpm/ft² over
1,500 ft² vs. light hazard's 0.10 gpm/ft² over 1,500 ft². The higher fuel load and faster
fire growth necessitate greater water application rates for control or suppression.
Option A confuses ceiling height with hazard classification (NFPA 13 has specific
extended coverage requirements for high ceilings). Option C is incorrect—pipe material
doesn't determine design density. Option D is incorrect—water supply reliability is
addressed separately from design density calculations.
, Q4: You are inspecting a warehouse with ESFR (Early Suppression Fast Response)
sprinkler heads. What is the primary operational difference between ESFR and standard
control-mode sprinklers?
A. ESFR heads operate at lower water pressures
B. ESFR heads are designed to suppress fires rather than just control them [CORRECT]
C. ESFR heads require monthly testing instead of quarterly
D. ESFR heads can only be used with wet pipe systems
Correct Answer: B
Rationale: ESFR sprinklers are specifically designed for high-challenge fire hazards such
as high-piled storage. Unlike control-mode sprinklers that control the fire until the fire
department arrives, ESFR sprinklers are designed to suppress the fire by discharging
high-velocity water deep into the fire plume, achieving suppression without in-rack
sprinklers. Per NFPA 13, ESFR systems require specific design criteria including
minimum operating pressures (typically 50 psi) and K-factors of 14.0 or greater. Option
A is incorrect—ESFR heads often require higher pressures. Option C is incorrect—testing
frequencies remain per NFPA 25 standards. Option D is incorrect—ESFR can be used
with various system types, though primarily wet pipe.
Q5: A sprinkler head's thermal sensitivity is measured by its Response Time Index (RTI).
What does a lower RTI value indicate?
