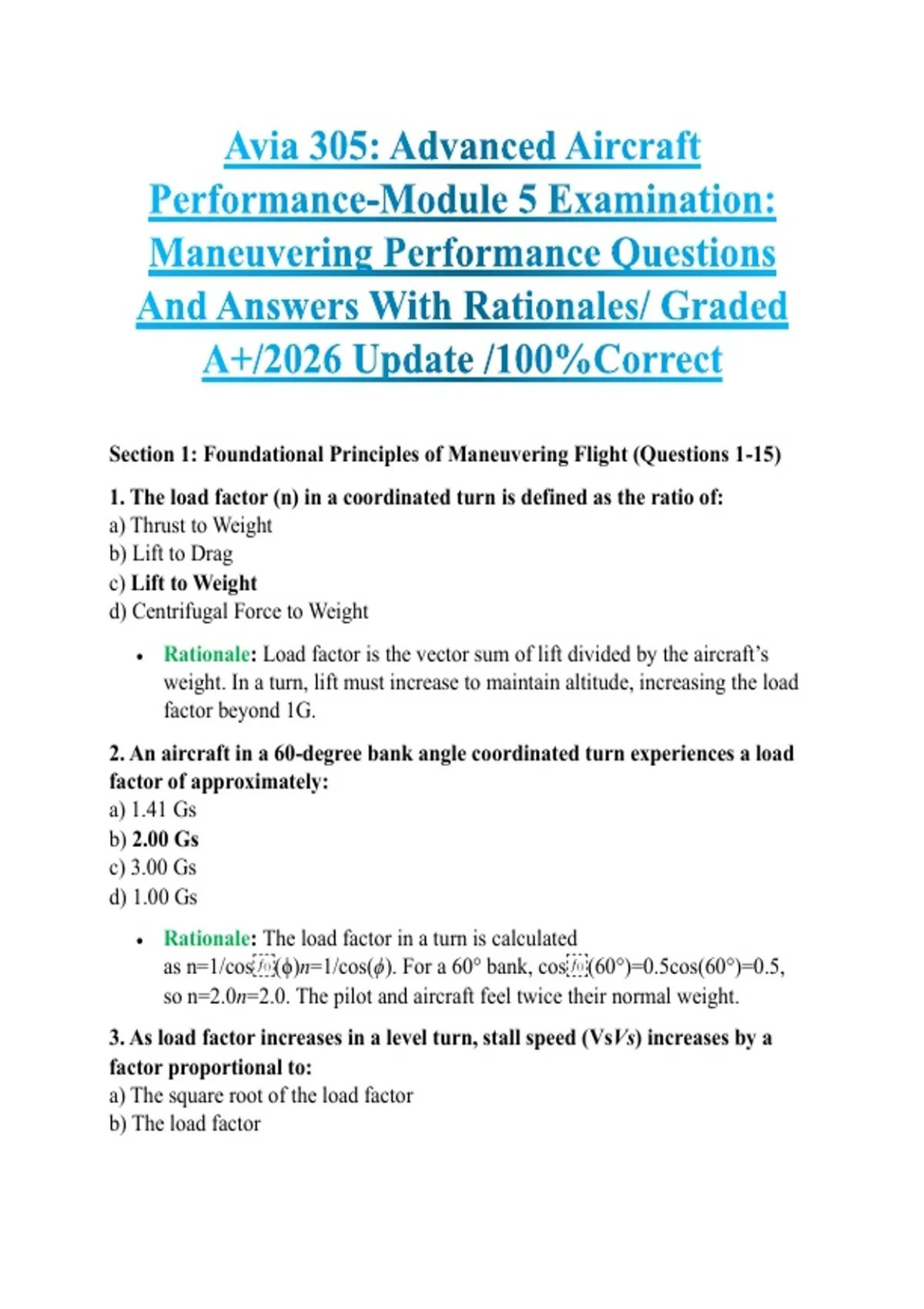

Avia 305: Advanced Aircraft
Performance-Module 5 Examination:
Maneuvering Performance Questions
And Answers With Rationales/ Graded
A+/2026 Update /100%Correct
Section 1: Foundational Principles of Maneuvering Flight (Questions 1-15)
1. The load factor (n) in a coordinated turn is defined as the ratio of:
a) Thrust to Weight
b) Lift to Drag
c) Lift to Weight
d) Centrifugal Force to Weight
• Rationale: Load factor is the vector sum of lift divided by the aircraft’s
weight. In a turn, lift must increase to maintain altitude, increasing the load
factor beyond 1G.
2. An aircraft in a 60-degree bank angle coordinated turn experiences a load
factor of approximately:
a) 1.41 Gs
b) 2.00 Gs
c) 3.00 Gs
d) 1.00 Gs
• Rationale: The load factor in a turn is calculated
as n=1/cos(ϕ)n=1/cos(ϕ). For a 60° bank, cos(60°)=0.5cos(60°)=0.5,
so n=2.0n=2.0. The pilot and aircraft feel twice their normal weight.
3. As load factor increases in a level turn, stall speed (VsVs) increases by a
factor proportional to:
a) The square root of the load factor
b) The load factor
,c) The square of the load factor
d) The inverse of the load factor
• Rationale: Stall speed in a turn is Vs=Vs1g×nVs=Vs1g×n. The increased
wing loading requires a higher airspeed to achieve the critical angle of
attack.
4. The term “Corner Speed” (VCVC or V∗V∗) refers to the airspeed that
provides:
a) Maximum endurance
b) Maximum instantaneous turn rate
c) Maximum range
d) Minimum sink rate
• Rationale: Corner speed is the intersection of the structural limit (maximum
G) and the aerodynamic limit (stall angle of attack). At this speed, the
aircraft achieves its highest possible instantaneous turn rate.
5. In a coordinated turn, if the bank angle is increased while maintaining
altitude, the required lift must increase. This is achieved primarily by:
a) Decreasing the angle of attack
b) Increasing the angle of attack or increasing airspeed
c) Decreasing thrust
d) Applying opposite aileron
• Rationale: To maintain altitude in a turn, the vertical component of lift must
equal weight. As bank increases, the pilot must increase total lift by
increasing angle of attack (pulling back on the yoke/stick) and/or increasing
airspeed with power.
6. The load factor limit for a Normal Category aircraft (per 14 CFR Part 23)
is typically:
a) +3.8G to -1.52G
b) +3.8G to -1.52G (for normal)
c) +4.4G to -1.76G
d) +6.0G to -3.0G
• Rationale: While the question asks for Normal Category, the specific
correct pairing for Normal is +3.8 to -1.52. Utility is +4.4/-1.76, and
Acrobatic is +6.0/-3.0.
, 7. The radius of a turn (R) at a constant bank angle is directly proportional to:
a) The square root of velocity
b) Velocity squared (V2V2)
c) Load factor
d) The inverse of velocity
• Rationale: The turn radius formula is R=V2/(g×tan(ϕ))R=V2/(g×tan(ϕ)).
If velocity doubles, the radius quadruples, assuming constant bank angle.
8. Which of the following best describes “sustained turn performance”?
a) The smallest possible turn radius achievable for a split second
b) The maximum load factor before structural failure
c) The maximum turn rate achievable without losing airspeed or altitude
d) The turn rate achieved at stall speed
• Rationale: Sustained turn performance is limited by engine thrust. It is the
turn rate (or load factor) that the aircraft can maintain indefinitely without
decelerating or descending.
9. During a “max performance” turn, the limiting factor transitioning from
instantaneous to sustained turn capability is usually:
a) Wing structural limits
b) Thrust-to-weight ratio
c) Control surface deflection limits
d) Center of Gravity position
• Rationale: Instantaneous turns are limited by structure (G-limit) or
aerodynamics (CLmax). Sustained turns are limited by thrust; if drag
exceeds thrust, the aircraft will slow down and cannot maintain the turn.
10. What happens to the turn radius if the velocity is reduced by half while
maintaining a constant bank angle?
a) It is reduced by half
b) It is doubled
c) It is reduced to one quarter
d) It remains unchanged
• Rationale: Since R∝V2R∝V2, halving the velocity reduces the radius
to (1/2)2=1/4(1/2)2=1/4 of the original.
