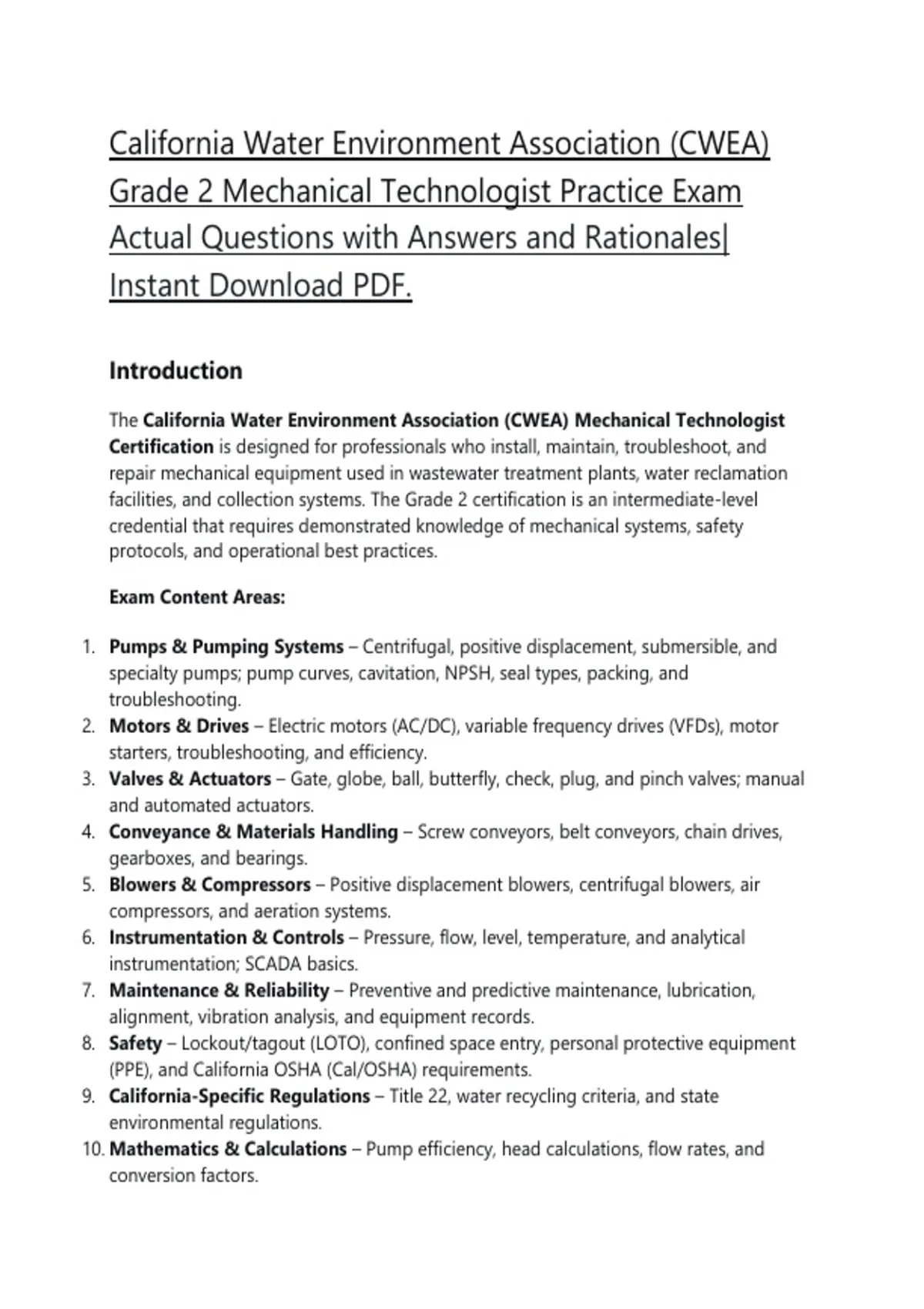

California Water Environment Association (CWEA)
Grade 2 Mechanical Technologist Practice Exam
Actual Questions with Answers and Rationales|
Instant Download PDF.
Introduction
The California Water Environment Association (CWEA) Mechanical Technologist
Certification is designed for professionals who install, maintain, troubleshoot, and
repair mechanical equipment used in wastewater treatment plants, water reclamation
facilities, and collection systems. The Grade 2 certification is an intermediate-level
credential that requires demonstrated knowledge of mechanical systems, safety
protocols, and operational best practices.
Exam Content Areas:
1. Pumps & Pumping Systems – Centrifugal, positive displacement, submersible, and
specialty pumps; pump curves, cavitation, NPSH, seal types, packing, and
troubleshooting.
2. Motors & Drives – Electric motors (AC/DC), variable frequency drives (VFDs), motor
starters, troubleshooting, and efficiency.
3. Valves & Actuators – Gate, globe, ball, butterfly, check, plug, and pinch valves; manual
and automated actuators.
4. Conveyance & Materials Handling – Screw conveyors, belt conveyors, chain drives,
gearboxes, and bearings.
5. Blowers & Compressors – Positive displacement blowers, centrifugal blowers, air
compressors, and aeration systems.
6. Instrumentation & Controls – Pressure, flow, level, temperature, and analytical
instrumentation; SCADA basics.
7. Maintenance & Reliability – Preventive and predictive maintenance, lubrication,
alignment, vibration analysis, and equipment records.
8. Safety – Lockout/tagout (LOTO), confined space entry, personal protective equipment
(PPE), and California OSHA (Cal/OSHA) requirements.
9. California-Specific Regulations – Title 22, water recycling criteria, and state
environmental regulations.
10. Mathematics & Calculations – Pump efficiency, head calculations, flow rates, and
conversion factors.
,Section 1: Pumps & Pumping Systems
1. What is the primary function of a centrifugal pump?
A) To trap liquid in a chamber and move it by positive displacement
B) To impart velocity to liquid and convert velocity to pressure
C) To move liquid using a rotating screw
D) To lift liquid using compressed air
Answer: B) To impart velocity to liquid and convert velocity to pressure
Explanation: Centrifugal pumps use an impeller to impart velocity to the liquid. As the
liquid leaves the impeller, the velocity is converted to pressure in the volute or diffuser.
This distinguishes them from positive displacement pumps, which trap and displace a fixed
volume of liquid.
2. What does NPSH (Net Positive Suction Head) refer to?
A) The total head developed by the pump
B) The pressure required to prevent cavitation at the pump suction
C) The static head from the water source to the pump
D) The discharge pressure measured at the pump outlet
Answer: B) The pressure required to prevent cavitation at the pump suction
Explanation: NPSH is the absolute pressure at the pump suction minus the vapor pressure
of the liquid. NPSH available (NPSHa) must exceed NPSH required (NPSHr) to prevent
cavitation, which can cause pitting, noise, vibration, and pump damage.
3. Which of the following is a common cause of cavitation in a centrifugal pump?
A) Discharge valve fully open
B) Suction lift too high or inlet restriction
,C) Motor running too fast
D) Impeller worn out
Answer: B) Suction lift too high or inlet restriction
Explanation: Cavitation occurs when the pressure at the pump suction drops below the
vapor pressure of the liquid, causing vapor bubbles to form and collapse. Common causes
include excessive suction lift, clogged suction strainers, undersized suction piping, or
operating at high flow rates.
4. What is the purpose of a mechanical seal in a centrifugal pump?
A) To prevent leakage between the pump casing and the shaft
B) To lubricate the bearings
C) To balance the impeller
D) To provide alignment between motor and pump
Answer: A) To prevent leakage between the pump casing and the shaft
Explanation: Mechanical seals are used to prevent leakage of pumped fluid along the
rotating shaft where it passes through the pump casing. They consist of stationary and
rotating faces that are pressed together by spring tension and hydraulic pressure.
5. What is the most common type of packing material used in pump stuffing
boxes?
A) Graphite-impregnated braided packing
B) Teflon tape
C) Rubber O-rings
D) Metal compression rings
Answer: A) Graphite-impregnated braided packing
Explanation: Braided packing (often graphite-impregnated) is the most common packing
material for pump stuffing boxes. It is designed to allow a controlled amount of leakage
for lubrication and cooling. The packing is compressed by a gland follower to control the
leak rate.
, 6. What does the term "shutoff head" mean on a centrifugal pump curve?
A) The head developed at maximum flow
B) The head developed at zero flow (discharge valve closed)
C) The head at which the pump operates most efficiently
D) The head required to overcome static lift
Answer: B) The head developed at zero flow (discharge valve closed)
Explanation: Shutoff head is the point on the pump curve where flow is zero and discharge
head is at its maximum. It occurs when the discharge valve is closed. Operating at shutoff
head for extended periods can cause overheating and damage.
7. What is the primary advantage of a variable frequency drive (VFD) on a pump?
A) Reduces motor starting current
B) Allows flow control without throttling valves
C) Extends motor life
D) All of the above
Answer: D) All of the above
Explanation: VFDs provide multiple benefits: they reduce inrush current during starting
(soft start), allow precise flow control by varying pump speed (eliminating throttling
losses), and reduce wear on mechanical components, extending equipment life.
8. Which type of pump is best suited for handling sludge with high solids content?
A) Centrifugal pump
B) Progressive cavity pump
C) Vertical turbine pump
D) Regenerative turbine pump
Answer: B) Progressive cavity pump
Explanation: Progressive cavity pumps (also called eccentric screw pumps) are positive
displacement pumps well-suited for handling viscous fluids, sludges, and liquids with high
