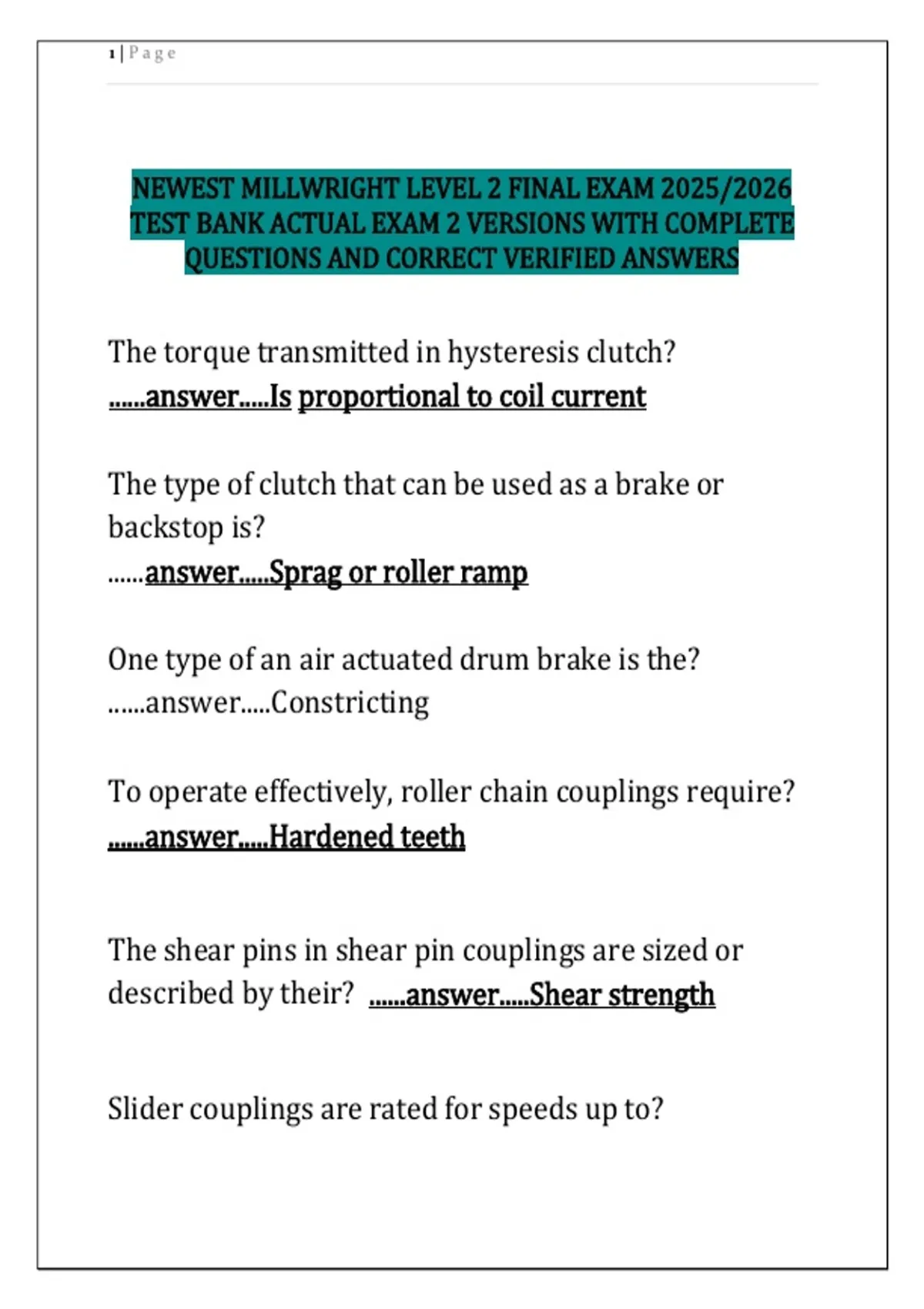

NEWEST MILLWRIGHT LEVEL 2 FINAL EXAM 2025/2026
TEST BANK ACTUAL EXAM 2 VERSIONS WITH COMPLETE
QUESTIONS AND CORRECT VERIFIED ANSWERS
The torque transmitted in hysteresis clutch?
......answer.....Is proportional to coil current
The type of clutch that can be used as a brake or
backstop is?
......answer.....Sprag or roller ramp
One type of an air actuated drum brake is the?
......answer.....Constricting
To operate effectively, roller chain couplings require?
......answer.....Hardened teeth
The shear pins in shear pin couplings are sized or
described by their? ......answer.....Shear strength
Slider couplings are rated for speeds up to?
,2|Page
......answer.....100Rpm
Which type of coupling is constructed with a spigot
and a recess in the faces? ......answer.....Flanged
A compression coupling is a? ......answer.....Rigid
coupling and has a tapered bore
The coupling that allows the flexing element to be
changed without disturbing the coupling hubs is the?
......answer.....Rubber tire
In a fluid coupling, the highest vortex occurs at?
......answer.....Start up
The coupling with the most torsional capacity over the
elastomeric type, would be? ......answer.....Metallic grid
,3|Page
With bushed pin couplings, the elastomer allows for
good?
......answer.....Good thermal ability and slight
misalignment
The type of coupling that is best suited where a larger
amount of offset exists is the? ......answer.....Offset
coupling
Fluid couplings should never be filled more than what
%
......answer.....80%
Rubber tire couplings can tolerate angular
misalignment up to?
......answer.....4 degrees
Universal joint couplings of the bearing and cross
design perform best at angles of? ......answer.....15
degrees or less
, 4|Page
The teeth of a flexible grid coupling are contoured or
curved to allow for? ......answer.....Angular
misalignment
Metal beam or helical couplings are limited to shaft
sizes up to?
......answer.....1.5 inches
Radial brakes are classed as? ......answer.....Internal and
external
Brakes are classed as? ......answer.....Radial and axial
Small Square jaw clutches must be engaged at?
......answer.....10 rpm or less
The clutch with the slowest engagement time is the?
......answer.....Manually activated clutch
