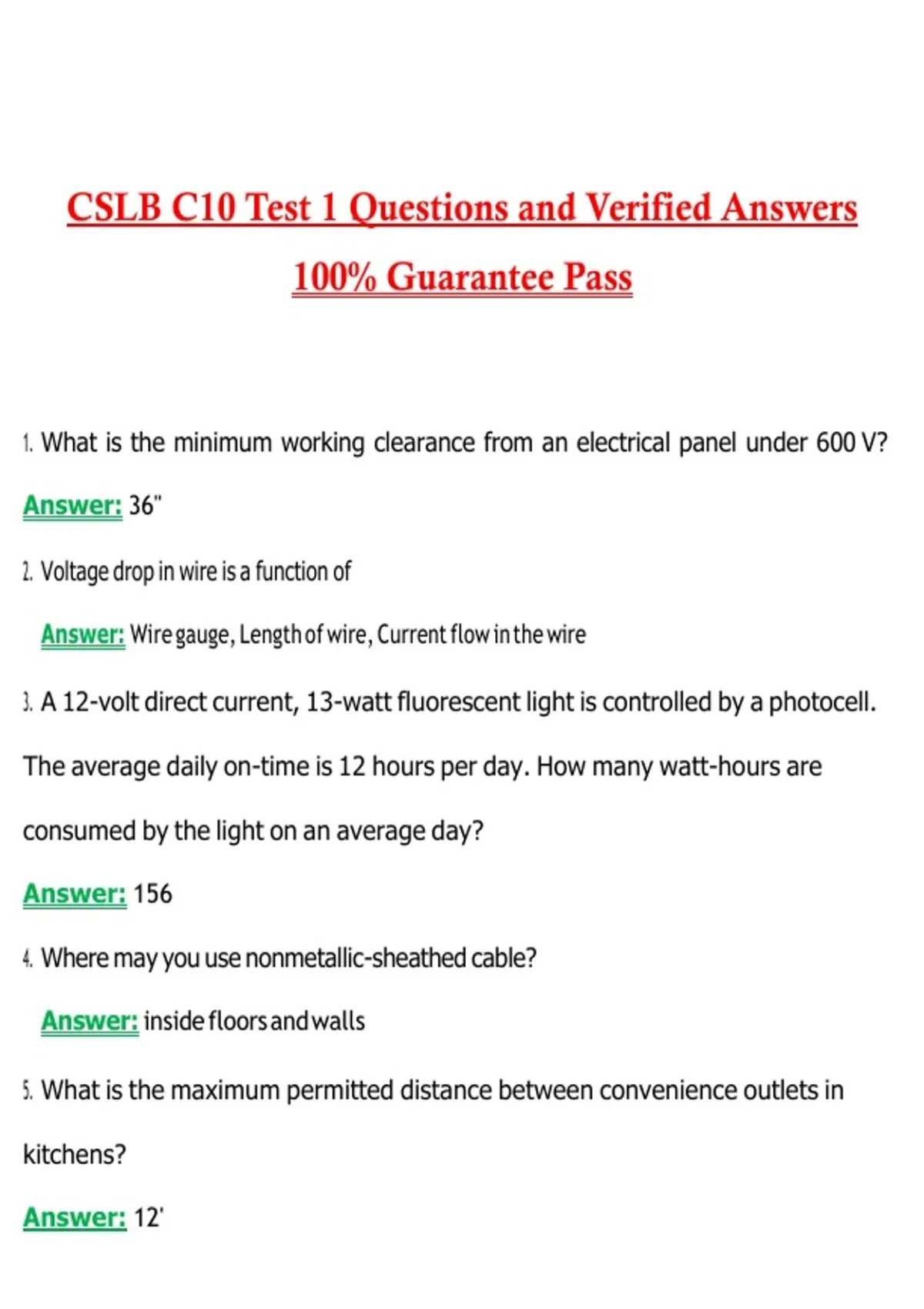

CSLB C10 Test 1 Questions and Verified Answers
100% Guarantee Pass
1. What is the minimum working clearance from an electrical panel under 600 V?
Answer: 36"
2. Voltage drop in wire is a function of
Answer: Wire gauge, Length of wire, Current flow in the wire
3. A 12-volt direct current, 13-watt fluorescent light is controlled by a photocell.
The average daily on-time is 12 hours per day. How many watt-hours are
consumed by the light on an average day?
Answer: 156
4. Where may you use nonmetallic-sheathed cable?
Answer: inside floors and walls
5. What is the maximum permitted distance between convenience outlets in
kitchens?
Answer: 12'
,6. The minimum permitted size fixture wire is
Answer: No. 18
7. What is an Erickson coupling used for?
Answer: to connect two sections of rigid conduit when one section cannot be turned
8. The smallest size grounding conductor permitted for service entrance is
Answer: No. 8 copper
9. For an electric appliance with a 17.5 A load, the overcurrent device must not
exceed
Answer: 25 amps
10. A 5 kW appliance is used for 5 hours. At $0.014 per kWh, the cost of running
the appliance is
Answer: $0.35
11. If the plumber accidentally cuts installed wires, to whom should you report the
problem?
Answer: general contractor
12. What is the maximum distance to an outlet from any point along the wall
behind a kitchen counter?
Answer: 24"
, 13. Which of the following materials is not corrosive?
Answer: enamel
14. 65 street lights are fed by a 2275-volt series circuit. What is the voltage across
each light?
Answer: 35 V
15. What do you not take into consideration when doing load demand calcula-
tions?
Answer: small portable heating and cooling appliances
16. The symbol represents a
Answer: relay coil
17. A fixture that weighs more than must be supported independently of
an outlet box.
Answer: 50 lb.
18. After installing a new A/C how would you test it?
Answer: turn on the breaker and check voltage
19. The symptoms of shock are
Answer: pale skin; sweaty; fast pulse
