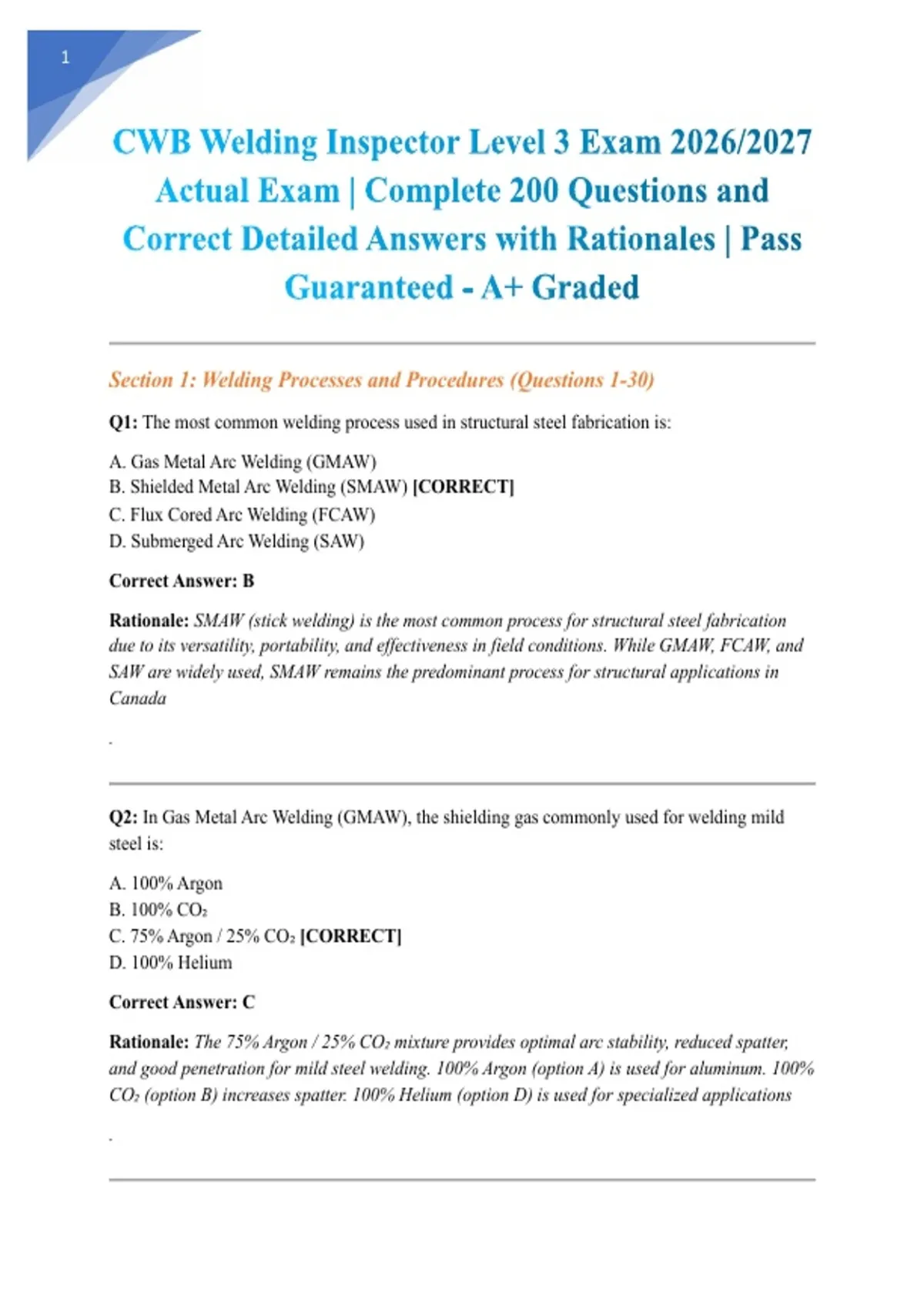

CWB Welding Inspector Level 3 Exam 2026/2027
Actual Exam | Complete 200 Questions and
Correct Detailed Answers with Rationales | Pass
Guaranteed - A+ Graded
Section 1: Welding Processes and Procedures (Questions 1-30)
Q1: The most common welding process used in structural steel fabrication is:
A. Gas Metal Arc Welding (GMAW)
B. Shielded Metal Arc Welding (SMAW) [CORRECT]
C. Flux Cored Arc Welding (FCAW)
D. Submerged Arc Welding (SAW)
Correct Answer: B
Rationale: SMAW (stick welding) is the most common process for structural steel fabrication
due to its versatility, portability, and effectiveness in field conditions. While GMAW, FCAW, and
SAW are widely used, SMAW remains the predominant process for structural applications in
Canada
.
Q2: In Gas Metal Arc Welding (GMAW), the shielding gas commonly used for welding mild
steel is:
A. 100% Argon
B. 100% CO₂
C. 75% Argon / 25% CO₂ [CORRECT]
D. 100% Helium
Correct Answer: C
Rationale: The 75% Argon / 25% CO₂ mixture provides optimal arc stability, reduced spatter,
and good penetration for mild steel welding. 100% Argon (option A) is used for aluminum. 100%
CO₂ (option B) increases spatter. 100% Helium (option D) is used for specialized applications
.
,2
Q3: The welding process that uses a continuous tubular electrode filled with flux is:
A. SMAW
B. GMAW
C. FCAW [CORRECT]
D. GTAW
Correct Answer: C
Rationale: Flux Cored Arc Welding (FCAW) uses a continuous tubular electrode containing flux.
SMAW (option A) uses solid covered electrodes. GMAW (option B) uses solid wire. GTAW
(option D) uses non-consumable tungsten electrodes
.
Q4: In Submerged Arc Welding (SAW), the weld zone is protected by:
A. Shielding gas
B. Flux that completely covers the arc [CORRECT]
C. Vacuum environment
D. Inert gas backing
Correct Answer: B
Rationale: SAW uses a granular flux that completely covers the arc and weld pool, protecting it
from atmospheric contamination. This allows for high deposition rates and deep penetration
without spatter
.
Q5: Which welding process is characterized by a non-consumable tungsten electrode?
A. SMAW
B. GMAW
C. GTAW [CORRECT]
D. FCAW
Correct Answer: C
Rationale: Gas Tungsten Arc Welding (GTAW/TIG) uses a non-consumable tungsten electrode.
Filler metal is added separately if needed. Options A, B, and D all use consumable electrodes
.
,3
Q6: The primary advantage of using pulsed current in GMAW is:
A. Increased travel speed
B. Better control of heat input and reduced distortion [CORRECT]
C. Elimination of shielding gas
D. Ability to weld without filler metal
Correct Answer: B
Rationale: Pulsed GMAW provides better control of heat input, reducing distortion and allowing
better control of the weld pool. This is particularly beneficial for thin materials and out-of-
position welding
.
Q7: In SMAW, the coating on the electrode serves to:
A. Increase electrical conductivity only
B. Stabilize the arc and provide shielding gas and slag [CORRECT]
C. Add weight to the electrode
D. Prevent the electrode from bending
Correct Answer: B
Rationale: The electrode coating serves multiple functions: stabilizing the arc, generating
protective shielding gas, forming protective slag, and adding alloying elements. These functions
are critical to weld quality
.
Q8: Which welding position is most difficult for welders to qualify in?
A. Flat (1G/1F)
B. Horizontal (2G/2F)
C. Vertical (3G/3F)
D. Overhead (4G/4F) [CORRECT]
Correct Answer: D
Rationale: The overhead position (4G/4F) is generally considered the most difficult due to
gravity working against the weld pool, increased risk of weld metal dropping, and awkward
positioning for the welder
.
, 4
Q9: A welding procedure specification (WPS) must include:
A. Only the welding process
B. Essential variables that affect weld properties [CORRECT]
C. Only the welder's name
D. Only the inspection schedule
Correct Answer: B
Rationale: A WPS must document all essential variables that affect the mechanical properties of
the weld, including process, base metal, filler metal, electrical characteristics, and technique.
This ensures reproducible weld quality
.
Q10: The heat input in welding is calculated using:
A. Voltage only
B. Amperage only
C. Voltage × Amperage × 60 / Travel Speed [CORRECT]
D. Travel speed only
Correct Answer: C
Rationale: Heat input (J/mm or kJ/mm) = (Voltage × Amperage × 60) / Travel Speed (mm/min).
This formula determines the energy applied per unit length of weld, which affects microstructure
and properties
.
Q11: Preheat in welding is primarily used to:
A. Increase travel speed
B. Prevent hydrogen-induced cracking and reduce cooling rate [CORRECT]
C. Eliminate the need for filler metal
D. Reduce the amperage required
Correct Answer: B
Rationale: Preheat slows the cooling rate, reduces hardness in the heat-affected zone (HAZ),
and helps prevent hydrogen-induced cracking (cold cracking) in susceptible steels. This is
critical for high-carbon and high-strength steels
