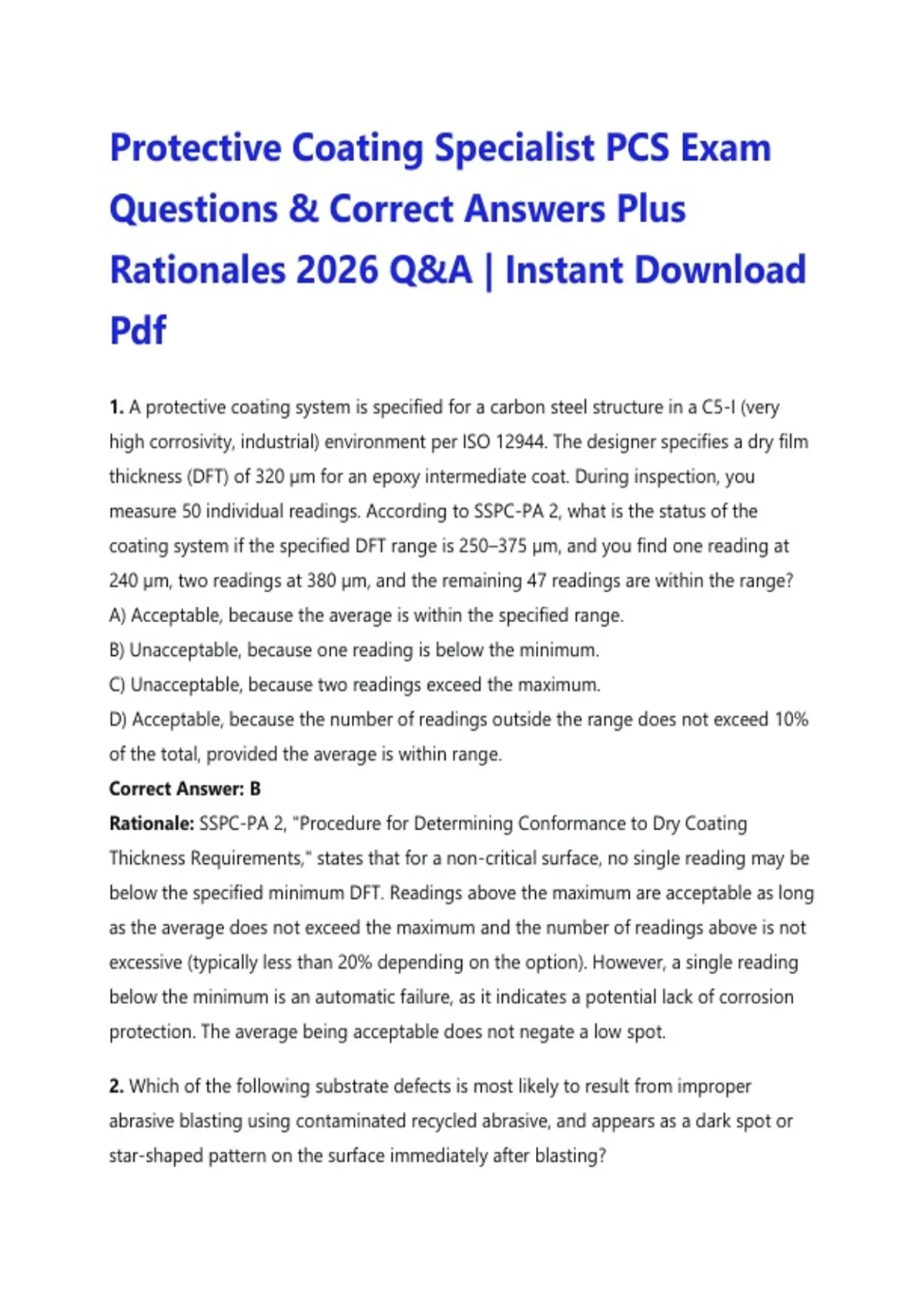

Protective Coating Specialist PCS Exam
Questions & Correct Answers Plus
Rationales 2026 Q&A | Instant Download
Pdf
1. A protective coating system is specified for a carbon steel structure in a C5-I (very
high corrosivity, industrial) environment per ISO 12944. The designer specifies a dry film
thickness (DFT) of 320 µm for an epoxy intermediate coat. During inspection, you
measure 50 individual readings. According to SSPC-PA 2, what is the status of the
coating system if the specified DFT range is 250–375 µm, and you find one reading at
240 µm, two readings at 380 µm, and the remaining 47 readings are within the range?
A) Acceptable, because the average is within the specified range.
B) Unacceptable, because one reading is below the minimum.
C) Unacceptable, because two readings exceed the maximum.
D) Acceptable, because the number of readings outside the range does not exceed 10%
of the total, provided the average is within range.
Correct Answer: B
Rationale: SSPC-PA 2, "Procedure for Determining Conformance to Dry Coating
Thickness Requirements," states that for a non-critical surface, no single reading may be
below the specified minimum DFT. Readings above the maximum are acceptable as long
as the average does not exceed the maximum and the number of readings above is not
excessive (typically less than 20% depending on the option). However, a single reading
below the minimum is an automatic failure, as it indicates a potential lack of corrosion
protection. The average being acceptable does not negate a low spot.
2. Which of the following substrate defects is most likely to result from improper
abrasive blasting using contaminated recycled abrasive, and appears as a dark spot or
star-shaped pattern on the surface immediately after blasting?
,A) Laminations
B) Slivers
C) Embedded grit
D) Flash rust
Correct Answer: C
Rationale: Embedded grit occurs when blasting abrasive particles become lodged in the
steel surface. This is particularly problematic with recycled abrasive that may contain fine
particles, oil, or other contaminants. These embedded particles can initiate premature
coating failure by acting as corrosion cells or causing osmotic blistering. Laminations
and slivers are rolling defects from the steel mill. Flash rust is caused by humidity or
moisture after blasting, not by the abrasive itself.
3. A coating specification requires a "sweep blast" to SSPC-SP 7/NACE No. 4. What is the
primary purpose of this surface preparation method when applied over an existing
intact coating?
A) To remove all visible oil, grease, and other contaminants down to bare metal.
B) To create a deep, angular anchor profile for maximum mechanical adhesion.
C) To roughen the surface and remove loosely adhering material to improve intercoat
adhesion.
D) To completely remove the existing coating and all rust to achieve a near-white metal
finish.
Correct Answer: C
Rationale: SSPC-SP 7/NACE No. 4, "Brush-Off Blast Cleaning," is used to remove loose
mill scale, rust, and coating, leaving a surface with a uniform appearance of tightly
adherent material. It does not aim for bare metal (like SP 5 or SP 10) but instead
provides a "swept" surface profile to enhance mechanical bonding of a new coating
system. It is commonly used for maintenance painting where full removal of a sound
existing coating is neither necessary nor practical.
4. In a high-performance coating system for immersion service, an epoxy coating is
specified. What is the most critical factor regarding the induction time (sweat-in or dwell
,time) for a two-component polyamide epoxy?
A) It allows solvents to evaporate, preventing solvent entrapment.
B) It allows the exothermic reaction to begin, ensuring proper cross-linking and
adhesion.
C) It allows the coating to cool down to ambient temperature after mixing.
D) It allows the pot life to be extended by delaying the catalyst activation.
Correct Answer: B
Rationale: Induction time is the period after mixing the base and curing agent but
before application, allowing the chemical reaction (cross-linking) to initiate. This partial
reaction is crucial for the coating to develop its full properties, including adhesion,
chemical resistance, and hardness. Applying the coating without proper induction can
result in poor cure, low gloss, and reduced barrier properties. Pot life is the usable
time after induction, during which the viscosity remains suitable for application.
5. A coating inspector is using a magnetic pull-off gage to measure DFT on a structural
steel beam. The gage reads 12.5 mils. However, the specification requires a DFT of 8–10
mils. What is the most likely cause of this erroneous high reading if the inspector is
using the gage correctly?
A) The coating is not fully cured, causing the magnet to sink in.
B) The surface profile is too high, creating an air gap between the probe and the
coating.
C) The gage was not calibrated on a bare, representative substrate with a similar profile.
D) The coating contains a high level of zinc, which is non-magnetic.
Correct Answer: C
Rationale: Magnetic pull-off gages measure the force required to pull a magnet from a
coated surface. If the gage is calibrated on a smooth, unprofiled surface but used on a
surface with a significant anchor profile, the peaks of the profile will artificially increase
the distance between the magnet and the steel, leading to a higher-than-actual DFT
reading. Calibration must be performed on a bare substrate that matches the surface
profile of the test piece to ensure accuracy.
, 6. Which type of corrosion is characterized by a localized, often hemispherical cavity
that forms beneath the coating film, typically due to a concentration cell or a galvanic
reaction at a microscopic defect?
A) Uniform corrosion
B) Pitting corrosion
C) Crevice corrosion
D) Filiform corrosion
Correct Answer: B
Rationale: Pitting corrosion is a highly localized form of corrosion that leads to the
creation of small holes or pits in the metal. Under coatings, it often initiates at a pinhole
or mechanical damage, where a small anodic area forms relative to the larger cathodic
area of the intact coating. This aggressive localized attack can lead to rapid penetration
of the substrate. Uniform corrosion is widespread and even; crevice corrosion occurs in
shielded areas; filiform corrosion occurs under thin films, often on aluminum or steel,
with a worm-like pattern.
7. You are inspecting a tank lining project. The specification calls for a 100% spark test
(holiday detection) on a dielectric lining. What is the primary purpose of this test?
A) To measure the thickness of the lining.
B) To verify the adhesion of the lining to the substrate.
C) To detect discontinuities such as pinholes, voids, and thin spots in the lining.
D) To ensure the lining is fully cured and has the correct dielectric strength.
Correct Answer: C
Rationale: A holiday detector applies a voltage between a probe and the conductive
substrate. If a discontinuity (pinhole, void, crack) exists in the non-conductive coating, a
spark will jump, completing the circuit. This identifies locations where the coating is not
continuous, which, if left undetected, would be points of rapid localized corrosion in
immersion service. It does not measure thickness (though thickness is related to the
voltage used), adhesion, or cure state directly.
