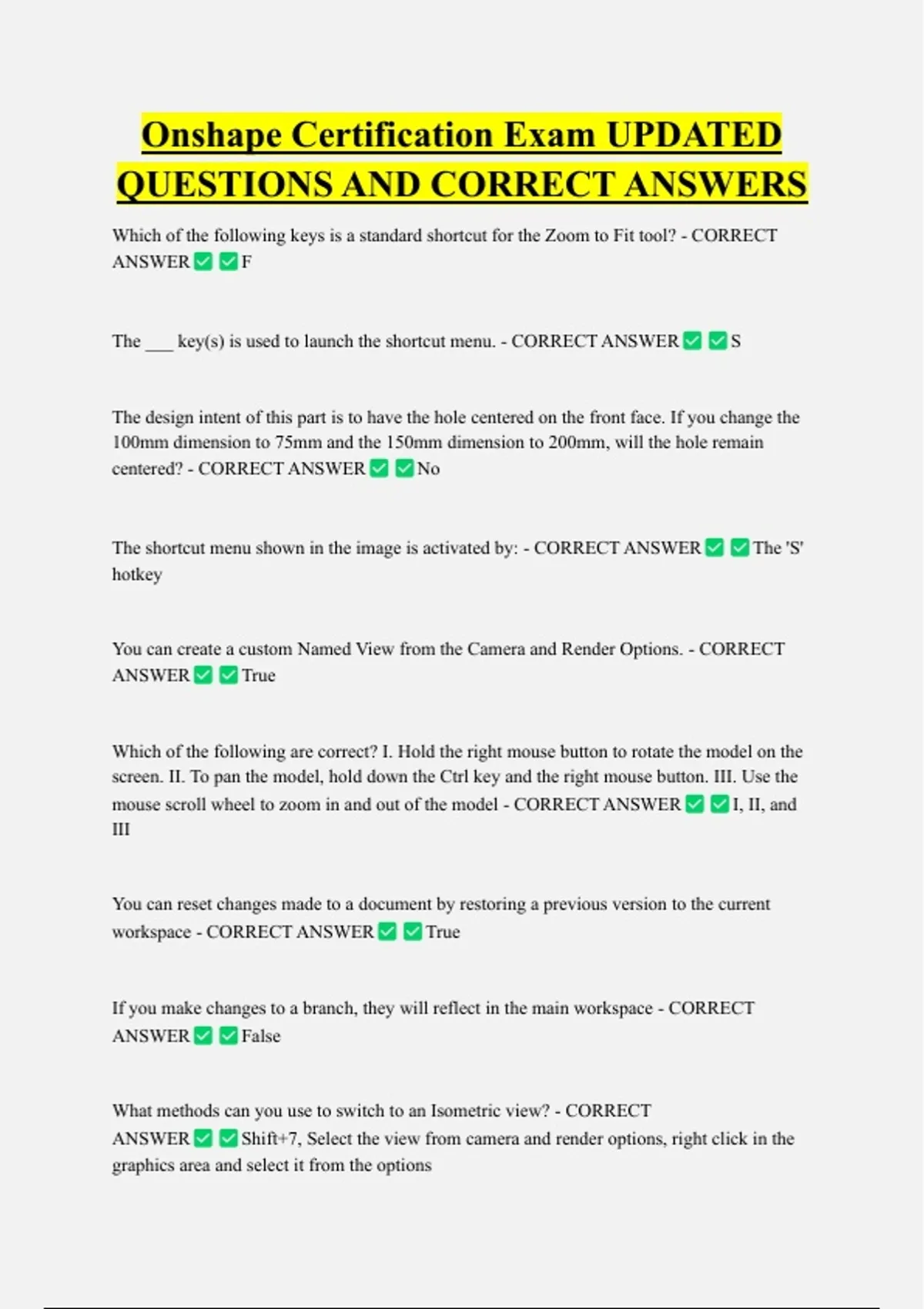

Onshape Certification Exam UPDATED
QUESTIONS AND CORRECT ANSWERS
Which of the following keys is a standard shortcut for the Zoom to Fit tool? - CORRECT
ANSWER F
The ___ key(s) is used to launch the shortcut menu. - CORRECT ANSWER S
The design intent of this part is to have the hole centered on the front face. If you change the
100mm dimension to 75mm and the 150mm dimension to 200mm, will the hole remain
centered? - CORRECT ANSWER No
The shortcut menu shown in the image is activated by: - CORRECT ANSWER The 'S'
hotkey
You can create a custom Named View from the Camera and Render Options. - CORRECT
ANSWER True
Which of the following are correct? I. Hold the right mouse button to rotate the model on the
screen. II. To pan the model, hold down the Ctrl key and the right mouse button. III. Use the
mouse scroll wheel to zoom in and out of the model - CORRECT ANSWER I, II, and
III
You can reset changes made to a document by restoring a previous version to the current
workspace - CORRECT ANSWER True
If you make changes to a branch, they will reflect in the main workspace - CORRECT
ANSWER False
What methods can you use to switch to an Isometric view? - CORRECT
ANSWER Shift+7, Select the view from camera and render options, right click in the
graphics area and select it from the options
, In what ways can you share documents? - CORRECT ANSWER Links, sharing with
individual or company, making the document public
A parametric modeler is controlled by: - CORRECT ANSWER Relationships,
Parameters, Dimensions
One way to remove an existing sketch entity is to select it and then press the __________ key
on the keyboard. - CORRECT ANSWER Delete
True or False: You can double-click a feature in the graphics area to display its dimensions. -
CORRECT ANSWER True
When box-selecting multiple items, to include only items completely enclosed within the
box, drag the selection box from left to right. - CORRECT ANSWER True
What signifies that a sketch is fully defined? - CORRECT ANSWER All lines are
black
If you select a face to draw a sketch, the sketch entities cannot extend beyond the edges of
that face. - CORRECT ANSWER False
The units of a document can be changed under Workspace Units in the Document Menu. -
CORRECT ANSWER True
Which of the following is an indicator that you are in sketch mode?
The feature toolbar changes to the sketch toolbar
The sketch dialog box shows on screen
The sketch name highlights in the Feature List
All of the above - CORRECT ANSWER All of the above
