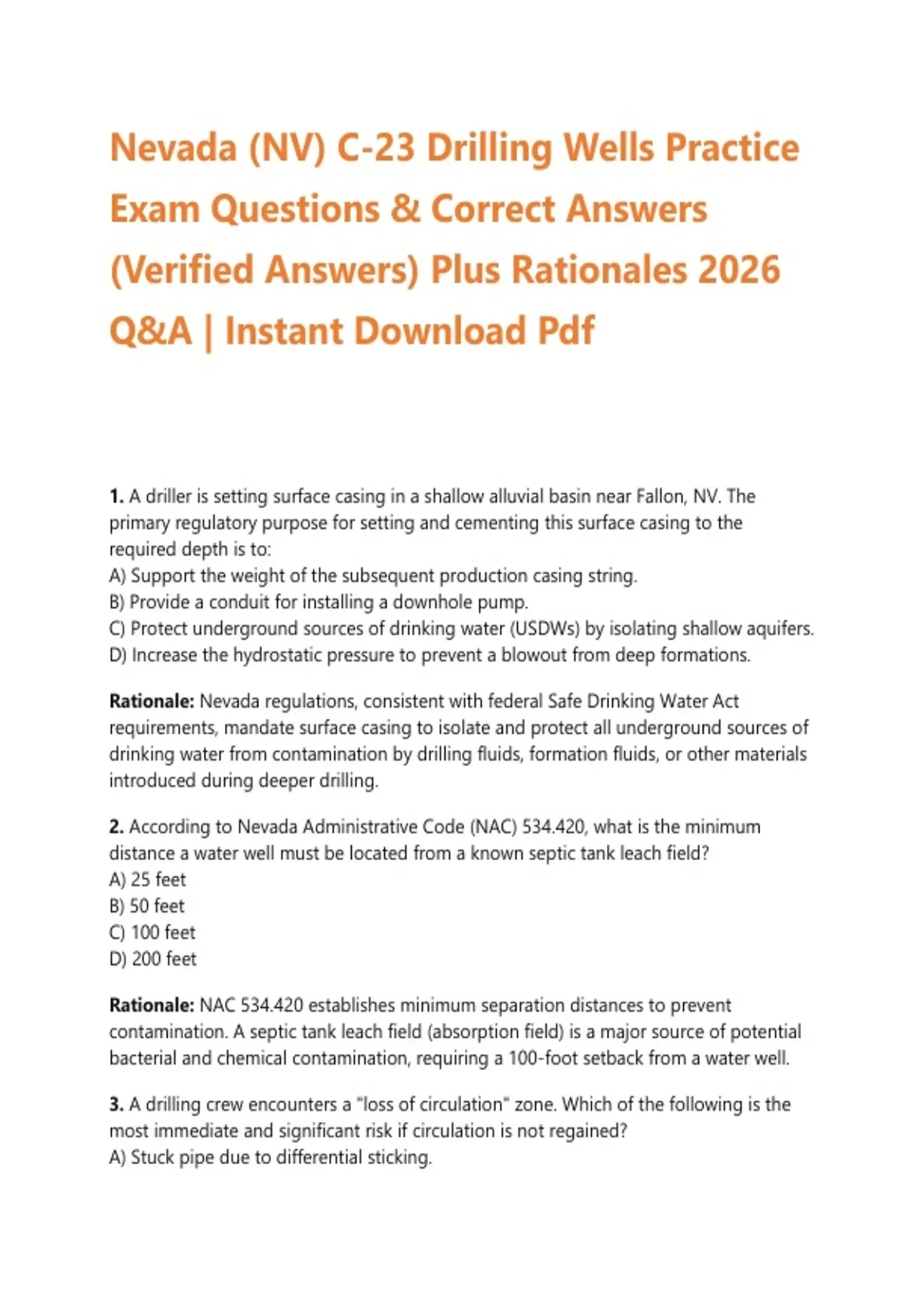

Nevada (NV) C 23 Drilling Wells Practice Exam Questions & Correct Answers (Verified Answers) Plus Rationales 2026 Q&A | Instant Download Pdf

1. A driller is setting surface casing in a shallow alluvial basin near Fallon, NV. The primary regulatory purpose for setting and cementing this surface casing to the required depth is to: A) Support the weight of the subsequent production casing string. B) Provide a conduit for installing a downhole pump. C) Protect underground sources of drinking water (USDWs) by isolating shallow aquifers. D) Increase the hydrostatic pressure to prevent a blowout from deep formations. Rationale: Nevada regulations, consistent with federal Safe Drinking Water Act requirements, mandate surface casing to isolate and protect all underground sources of drinking water from contamination by drilling fluids, formation fluids, or other materials introduced during deeper drilling. 2. According to Nevada Administrative Code (NAC) 534.420, what is the minimum distance a water well must be located from a known septic tank leach field? A) 25 feet B) 50 feet C) 100 feet D) 200 feet Rationale: NAC 534.420 establishes minimum separation distances to prevent contamination. A septic tank leach field (absorption field) is a major source of potential bacterial and chemical contamination, requiring a 100-foot setback from a water well. 3. A drilling crew encounters a "loss of circulation" zone. Which of the following is the most immediate and significant risk if circulation is not regained? A) Stuck pipe due to differential sticking.B) Blowout due to reduced hydrostatic pressure in the annulus. C) Premature hardening of cement in the drill pipe. D) Excessive wear on the mud pump pistons. Rationale: Loss of circulation means drilling fluid is escaping into the formation, not returning to the surface. This reduces the hydrostatic pressure exerted by the fluid column in the annulus, which can allow formation fluids (water, oil, or gas) to enter the wellbore and potentially cause a blowout. 4. You are preparing to run a gravel pack in a well completed in a loose sand formation. What is the primary function of the gravel pack? A) To act as a filter, preventing sand from entering the well while allowing water to pass. B) To provide structural support to prevent the casing from collapsing. C) To seal off a water-bearing zone that is producing excessive sand. D) To chemically treat the formation to cement loose sand grains together. Rationale: A gravel pack involves placing carefully sized gravel (sand) around a wirewrapped screen. The gravel acts as a physical filter, stopping the natural formation sand from moving into the wellbore while permitting the water to flow freely, thus preventing sand production and equipment erosion. 5. A driller is using a rotary rig with a bit diameter of 12.25 inches and is drilling with 5- inch drill pipe. The driller records a pump pressure of 500 psi at a flow rate of 400 gallons per minute (GPM). If the driller doubles the flow rate to 800 GPM, assuming no change in mud properties or hole geometry, what would be the approximate new pump pressure? A) 250 psi B) 500 psi C) 1000 psi D) 2000 psi Rationale: In turbulent flow, which is typical in the drill pipe and annulus, friction pressure loss is proportional to the square of the flow rate. (800/400 = 2; 2² = 4; 500 psi × 4 = 2000 psi). This is a fundamental hydraulic principle. 6. What is the primary purpose of the "driller's log" that must be maintained during the construction of a well in Nevada? A) A financial record for billing the well owner. B) A geological record describing formations, water levels, and drilling progress. C) A safety log to be submitted to OSHA. D) A record of the driller's daily hours for labor law compliance.Rationale: The driller's log (or well log) is a critical regulatory and geological document. It records the depths, types, and thicknesses of geological formations encountered, along with water levels, drilling rates, and other observations that provide a permanent record of the well's construction and subsurface conditions. 7. A cable tool driller notices that the drilling line is showing "flattened" spots and has several broken wires in one valley. What is the most appropriate action? A) Continue drilling but at a slower rate to reduce stress on the line. B) Lubricate the line heavily to prevent further wear. C) Replace the drilling line immediately. D) Weld the broken wires to prevent them from fraying further. Rationale: Drilling line is a critical safety component. Flattening indicates structural deformation, and broken wires indicate fatigue. The safe and industry-standard practice is to "slip and cut" the line or replace it entirely, as continued use risks a catastrophic line failure, which could cause serious injury or death. 8. The term "drawdown" in a pumping test refers to: A) The vertical distance between the static water level and the pumping water level. B) The total volume of water pumped during the test. C) The rate at which water flows from the wellhead. D) The depth of the pump intake below the ground surface. Rationale: Drawdown is a fundamental concept in hydrogeology and well hydraulics. It is the measured difference between the static water level (non-pumping) and the dynamic water level (during pumping). It is a key parameter for calculating well efficiency and aquifer characteristics. 9. When cementing a casing string, a "stage collar" or "multiple-stage cementing tool" is typically used to: A) Reduce the risk of lost circulation by cementing the annulus in two or more stages. B) Increase the final compressive strength of the cement. C) Allow for the removal of the cement after it has set. D) Provide a centralizing point for the casing string. Rationale: Stage cementing is used to reduce hydrostatic pressure on weak formations during the cement job. By cementing in stages, the driller can avoid fracturing a weak zone and losing circulation, which would result in a poor cement job and potential interzonal contamination. 10. A well is completed in an artesian aquifer. What specific type of wellhead assembly is legally required to control the flow?A) A standard pitless adapter. B) A flow control valve or artesian well seal. C) A buried well cap. D) A screened vent pipe. Rationale: Artesian wells have natural pressure that can cause water to flow to the surface. Nevada regulations require a means to control this flow to prevent waste, erosion, and uncontrolled discharge. A flow control valve or a sealed wellhead assembly is mandatory to maintain control of the well. 11. Which of the following bentonite properties is most critical for its function as a primary drilling fluid additive? A) High sand content to increase abrasion. B) High yield and viscosity when hydrated. C) Low pH to prevent bacterial growth. D) High calcium content to stabilize formations. Rationale: Bentonite is a sodium montmorillonite clay. Its unique property is its ability to hydrate and swell to many times its dry volume, creating a viscous, thixotropic fluid. This viscosity is essential for lifting cuttings, suspending solids when circulation stops, and forming a low-permeability filter cake on the borehole wall. 12. The primary function of a blowout preventer (BOP) is to: A) Prevent the drill string from falling into the hole. B) Seal, control, and divert formation fluids during a well control event. C) Measure the volume of drilling fluid circulating out of the well. D) Automatically shut down the rig if toxic gas is detected. Rationale: A BOP is the primary safety device on a drilling rig. Its purpose is to close the annular space around the drill pipe (or shear the pipe if necessary) to contain or divert unexpected formation fluid influxes (kicks) and prevent a blowout, which is an uncontrolled release of formation fluids. 13. According to Nevada regulations, when is it mandatory to install a sanitary well seal or pitless adapter? A) Only for wells that produce more than 500 GPM. B) Only for wells located within 500 feet of a livestock operation. C) For all completed wells to protect the well from surface contamination. D) Only for wells that are not equipped with a pump. Rationale: The purpose of a sanitary seal or pitless adapter is to provide a contamination-free connection between the well casing and the water distributionsystem. It seals the top of the well, preventing the entry of surface water, insects, and debris, which is a requirement for all properly constructed wells. 14. A "fish" in drilling terminology refers to: A) A large, sharp rock that damages the bit. B) Any object left in the wellbore that must be retrieved before drilling can continue. C) A highly permeable water-bearing zone. D) A type of fishing tool used to retrieve lost equipment. Rationale: "Fishing" is the operation of retrieving lost equipment from the wellbore. The "fish" is the object itself—which could be a drill collar, bit, pipe, or tools—that has become stuck or lost downhole, requiring specialized tools and techniques for recovery. 15. You are drilling in a formation known to contain hydrogen sulfide (H₂S). What is the minimum safety equipment requirement for the drilling crew? A) Portable SCBA units (Self-Contained Breathing Apparatus) stationed at the rig. B) A single personal H₂S monitor for the driller. C) Dust masks for all crew members. D) An emergency ventilation fan pointed at the shakers. Rationale: H₂S is a highly toxic, colorless gas that is heavier than air and can be lethal in very low concentrations. OSHA and industry best practices mandate continuous H₂S monitoring for all personnel in the area, and readily accessible SCBA or supplied-air respirators for emergency escape or work in potentially hazardous atmospheres. 16. What is the primary reason for conducting a step-drawdown test after well development? A) To determine the water quality for drinking standards. B) To determine the well efficiency and identify well losses. C) To measure the total depth of the well. D) To sterilize the well with chlorine. Rationale: A step-drawdown test involves pumping the well at a series of increasing flow rates (steps). By analyzing the drawdown response at each step, a hydrogeologist can differentiate between formation losses (aquifer characteristics) and well losses (turbulence, friction, screen entry velocity), thus calculating the well's efficiency and identifying potential issues like poor development or insufficient screen area. 17. A driller is using a tricone roller cone bit. Which of the following is a sign that the bit is "dull" or worn out and needs to be pulled? A) A gradual decrease in the rate of penetration (ROP). B) A consistent torque reading on the rotary table.C) A sudden increase in pump pressure. D) An increase in drill pipe weight. Rationale: As a tricone bit wears, the cutting structure (teeth or inserts) becomes dull, and the bearings may wear. This results in a significantly slower rate of penetration. The driller will notice that they are not making the expected footage per hour, indicating it's time to pull the bit. 18. In a direct rotary drilling circulation system, what is the path of the drilling fluid from the mud pump? A) Swivel → Kelly → Drill Pipe → Bit → Annulus → Shale Shakers. B) Kelly → Swivel → Drill Pipe → Annulus → Bit → Shale Shakers. C) Mud Pump → Annulus → Bit → Drill Pipe → Shale Shakers. D) Mud Pump → Drill Pipe → Bit → Annulus → Shale Shakers. Rationale: The correct circulation path in direct rotary drilling is: Mud pump sends fluid up the standpipe, through the rotary hose, into the swivel and Kelly (or top drive), down the drill pipe, out through the nozzles in the bit, and then up the annulus (the space between the drill pipe and the borehole wall) carrying cuttings to the surface, where it flows over the shale shakers. 19. What is the significance of the "static water level" recorded in a well report? A) It is the level at which water stands in the well when it is not being pumped. B) It is the minimum depth the pump must be set to prevent cavitation. C) It is the level of the water during maximum pumping. D) It is the depth to the bottom of the well. Rationale: The static water level (SWL) is the foundational measurement for a well. It represents the equilibrium level of the water table or potentiometric surface in the aquifer. It is measured when no pumping has occurred for a sufficient period. It is essential for determining drawdown and pump setting depth. 20. A driller notices that the drill pipe is being "differentially stuck" against the borehole wall. This is most likely caused by: A) An oversized borehole that allows the pipe to slouch. B) A high differential pressure between the hydrostatic head of the mud and formation pressure, causing the pipe to adhere to a thick filter cake. C) A keyseat formed in a hard, curved section of the borehole. D) The drill pipe being torqued beyond its yield strength. Rationale: Differential sticking occurs when a portion of the drill string is embedded in a thick filter cake and the hydrostatic pressure in the wellbore is significantly greaterthan the formation pore pressure. The resulting force "glues" the pipe to the wall. It is distinct from mechanical sticking (keyseats, ledges). 21. What is the primary purpose of a "pitless adapter"? A) To provide a below-ground, frost-proof connection from the well casing to the water line. B) To allow the driller to add chlorine directly into the well. C) To serve as a coupling to join two sections of well casing. D) To provide a vent for gases that accumulate in the wellhead. Rationale: A pitless adapter is a device that attaches to the well casing below the frost line. It provides a sanitary and watertight connection for the drop pipe to exit the well horizontally, eliminating the need for a traditional well pit, which is a major source of contamination. 22. When developing a well using air lift or surging, what is the ultimate goal? A) To enlarge the diameter of the borehole. B) To remove fine sand, silt, and drilling fluid residue from the formation adjacent to the screen. C) To chemically treat the aquifer to increase its permeability. D) To test the structural integrity of the casing under pressure. Rationale: Well development is the process of cleaning the well screen and the formation surrounding it. The goal is to remove the finer particles (drilling mud, native fines) that were introduced or disturbed during drilling, thereby restoring or enhancing the natural permeability of the aquifer around the well to maximize water yield and efficiency. 23. According to Nevada law, who is responsible for ensuring that a well is properly abandoned (decommissioned) if it is no longer in use? A) The state engineer's office. B) The current landowner. C) The original well driller. D) The local county health department. Rationale: The responsibility for proper well abandonment falls on the landowner. Nevada regulations require that wells be properly decommissioned by a licensed driller to prevent them from acting as a conduit for contamination or a safety hazard. 24. A driller is using a "mud motor" (positive displacement motor) to drill a directional well. The mud motor converts: A) Rotary table rotation into hydraulic pressure.B) Hydraulic energy from the drilling fluid into rotational power to turn the bit. C) Electrical energy from a wireline into mechanical rotation. D) The weight of the drill collars into rotational torque. Rationale: A mud motor (or downhole motor) is a positive displacement motor (e.g., Moineau-type) that uses the flow and pressure of the drilling fluid to create rotation. This allows the bit to turn independently of the drill string rotation, which is essential for directional drilling, steering, and maintaining a specific trajectory. 25. What is the chemical formula and primary concern associated with "scale" formation in water wells and pumps? A) NaCl (sodium chloride) – causes corrosion. B) CaCO₃ (calcium carbonate) – precipitates due to changes in pressure/temperature, reducing pump efficiency and plugging screens. C) Fe₂O₃ (iron oxide) – indicates bacterial growth only. D) H₂S (hydrogen sulfide) – creates a foul odor. Rationale: Scale, most commonly calcium carbonate (CaCO₃), is a hard, crystalline deposit that forms when water chemistry conditions change (e.g., pressure drop, temperature increase). It builds up on pump intakes, screens, and piping, restricting flow, decreasing well efficiency, and potentially seizing the pump. 26. When using a "trip tank" during tripping operations (pulling pipe out of the hole), what is the crew monitoring? A) The volume of fluid required to keep the hole full to detect a kick or loss of circulation. B) The cleanliness of the drilling fluid. C) The torque required to break out the pipe connections. D) The weight of the drill pipe being pulled. Rationale: A trip tank is a small, calibrated tank used to precisely measure the volume of mud required to fill the hole as pipe is pulled out. If the hole does not take the calculated volume of mud (i.e., it takes less), it indicates a "swabbed-in" kick (formation fluids entering), and if it takes more, it indicates lost circulation. It is a critical well control monitoring tool. 27. A driller is required to submit a well completion report to the Nevada State Engineer. What is the maximum allowable time after the well's completion to submit this report? A) 10 days B) 30 daysC) 60 days D) 90 days Rationale: Nevada Administrative Code mandates that a well completion report must be filed with the State Engineer within 30 days of the completion of the well, including any alterations or deepening of an existing well. 28. Which type of formation would most likely require the use of a "blank casing" (unperforated) rather than a screen? A) A highly consolidated, fractured bedrock aquifer. B) A fine, unconsolidated sand aquifer. C) A shallow alluvial gravel aquifer. D) An artesian zone with flowing sands. Rationale: In consolidated or hard rock formations (e.g., granite, basalt, limestone), the formation itself is competent and will not cave in. Water flows through fractures or solution channels. In these cases, the casing is often "blank" or set on top of the rock, and the well is completed "open hole" below the casing, making a screen unnecessary. 29. The "yield" of a well is best defined as: A) The total depth of the well. B) The volume of water the well can produce per unit of time, typically gallons per minute (GPM). C) The maximum pressure at the wellhead. D) The static water level measurement. Rationale: Yield is the flow rate of water that a well can sustainably produce. It is the primary measure of a well's productivity and is usually expressed in gallons per minute (GPM) or liters per second (L/s). 30. If a driller encounters a formation containing high-pressure gas while drilling, the primary well control method is to: A) Increase the weight (density) of the drilling fluid to increase hydrostatic pressure. B) Decrease the pump rate to reduce friction pressure. C) Pull the drill string out of the hole as quickly as possible. D) Shut down all pumps and wait for the gas to dissipate. Rationale: The primary method of well control is to maintain a hydrostatic pressure (created by the weight of the drilling fluid column) that exceeds the formation pressure. If a high-pressure zone is expected or encountered, the mud weight is increased to provide the necessary overbalance to prevent formation fluids from entering the wellbore.31. The primary advantage of using a "top drive" system over a conventional Kelly and rotary table is: A) Top drives are less expensive to maintain. B) Top drives allow drilling with stands (three-joint sections) and provide continuous circulation while making connections. C) Top drives require significantly less power to operate. D) Top drives are exclusively used for cable tool drilling. Rationale: A top drive replaces the Kelly and rotary table. It hangs from the derrick and travels up and down the mast, rotating the drill string. Its major advantages are the ability to drill with 90-foot stands (reducing connection time) and, most importantly, the ability to circulate mud while making a connection, which is crucial for well control. 32. What is the primary purpose of a "check valve" or "foot valve" installed on the bottom of the drop pipe in a pumping system? A) To filter sand out of the water before it enters the pump. B) To prevent the water from draining back down the drop pipe when the pump shuts off. C) To regulate the flow rate of the pump. D) To measure the dynamic water level. Rationale: A foot valve (or a check valve near the pump) is a one-way valve. Its function is to maintain the prime in the pump system by preventing the water column in the drop pipe from flowing back into the well when the pump stops, which would cause water hammer and require the system to be re-primed. 33. A "formation integrity test" (FIT) or "leak-off test" (LOT) is performed after drilling a few feet below a new casing shoe to: A) Determine the exact depth of the casing shoe. B) Measure the fracture pressure of the formation to determine the maximum allowable mud weight. C) Test the cement bond between the casing and the formation. D) Calibrate the flow meters on the mud system. Rationale: After setting and cementing casing, an FIT or LOT is conducted by closing the BOPs and applying pressure to the wellbore. The test determines the pressure at which the formation below the shoe will fracture (leak-off). This value is critical for setting the maximum allowable mud weight for the next hole section to avoid unintentionally fracturing the formation. 34. What does the term "specific capacity" of a well describe? A) The well's yield divided by the drawdown.B) The total gallons of water stored in the well casing. C) The maximum depth the pump can be set. D) The well's efficiency in terms of horsepower per gallon. Rationale: Specific capacity is a measure of well performance and is calculated as the pumping rate (yield) divided by the drawdown. It is expressed as GPM per foot of drawdown. It is a useful metric to compare well performance over time; a declining specific capacity often indicates well plugging or screen issues. 35. If a driller is using a "hammer bit" (down-the-hole hammer) for drilling in hard rock, what medium is typically used to power the hammer and lift cuttings? A) High-viscosity bentonite mud. B) Compressed air. C) Low-density foam only. D) Clear water. Rationale: Down-the-hole (DTH) hammers are pneumatically driven. Compressed air is forced down the drill pipe, which powers the hammer's piston and then flows up the annulus to lift the rock cuttings to the surface. This method is very efficient in hard, competent rock formations where mud is less necessary. 36. The "hook load" indicator on a drilling rig measures: A) The rotary torque being applied to the drill string. B) The weight of the drill string suspended from the hook. C) The hydraulic pressure in the mud pumps. D) The line pull on the cathead. Rationale: The hook load indicator (often part of the weight indicator) is a critical gauge. It shows the driller the total weight of the drill string being suspended. When drilling, the driller "slacks off" weight onto the bit, and the difference between the suspended weight and the drilling weight indicates the "weight on bit" (WOB). 37. When performing a "bailer test" on a cable tool rig, what is the primary information the driller is seeking? A) The chemical quality of the water. B) A quantitative estimate of the well's yield. C) The depth to the bottom of the well. D) The type of rock formation at the bottom. Rationale: In cable tool drilling, a bailer test is a crude but effective method of estimating well yield. The driller bails the well dry and then measures the rate at whichthe water level recovers. This recovery rate provides an initial estimate of the formation's ability to produce water. 38. Which of the following is a primary function of the "annular space" in a well? A) To provide a path for water to travel from the aquifer to the pump intake. B) To house the electrical cables for the submersible pump. C) To provide structural support to prevent borehole collapse. D) To serve as a reservoir for drilling fluid during circulation. Rationale: The annular space is the area between the well casing and the borehole wall (or between two casing strings). In a completed well, this space is sealed with cement (in upper portions) and in the producing zone, it allows water to enter the well through the screen or perforations and flow up to the pump intake. 39. A driller is about to cement a surface casing string. The calculated volume of cement needed to fill the annulus is 200 cubic feet. If the driller mixes a slurry that yields 1.15 cubic feet per sack of cement, approximately how many sacks are needed (disregarding excess)? A) 150 sacks B) 174 sacks C) 200 sacks D) 230 sacks Rationale: The calculation is: Total Volume Required ÷ Yield per Sack = Number of Sacks. 200 cu ft ÷ 1.15 cu ft/sack = 173.9 sacks. The driller would round up to ensure a full fill, typically ordering extra, but the base calculation is 174. 40. What is the most common method for disinfecting a newly constructed water well? A) Adding a copper sulfate solution to the well. B) Circulating a chlorine solution (e.g., sodium hypochlorite) throughout the well and water system. C) Flushing the well with high-pressure steam. D) Adding a polymer flocculant to settle out bacteria. Rationale: Chlorination is the standard and regulatory-required method for disinfecting a new or repaired well. A solution of household bleach (sodium hypochlorite) or calcium hypochlorite is introduced and circulated or agitated to contact all surfaces of the well and pump system to kill bacteria, followed by flushing until chlorine residual is at a safe level
