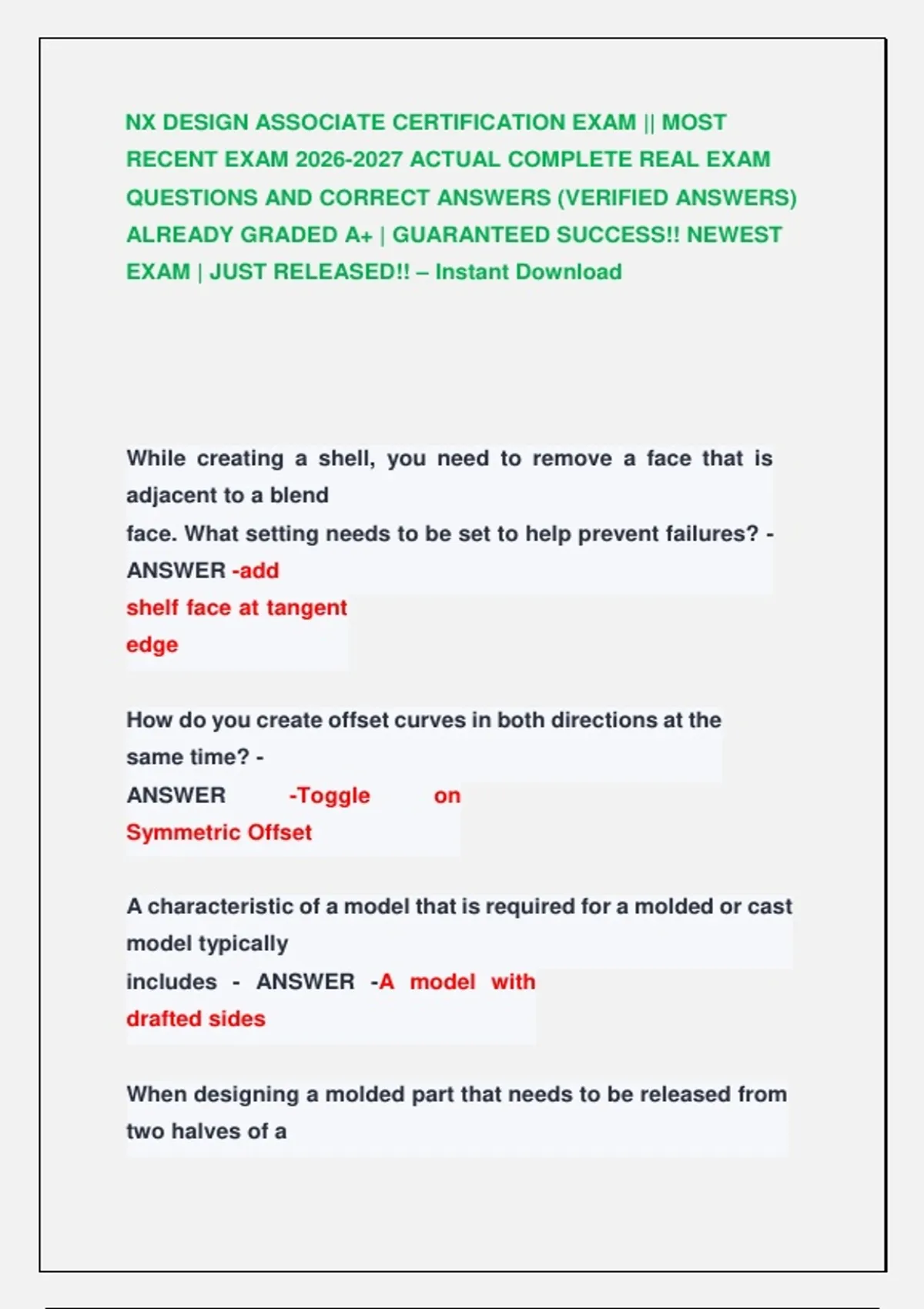

NX DESIGN ASSOCIATE CERTIFICATION EXAM || MOST
RECENT EXAM 2026-2027 ACTUAL COMPLETE REAL EXAM
QUESTIONS AND CORRECT ANSWERS (VERIFIED ANSWERS)
ALREADY GRADED A+ | GUARANTEED SUCCESS!! NEWEST
EXAM | JUST RELEASED!! – Instant Download
While creating a shell, you need to remove a face that is
adjacent to a blend
face. What setting needs to be set to help prevent failures? -
ANSWER -add
shelf face at tangent
edge
How do you create offset curves in both directions at the
same time? -
ANSWER -Toggle on
Symmetric Offset
A characteristic of a model that is required for a molded or cast
model typically
includes - ANSWER -A model with
drafted sides
When designing a molded part that needs to be released from
two halves of a
,mold, what should be designed into the part? - ANSWER
-a parting line
What option will create a body with wall thickness from an
extrude feature? -
ANSWER -
offset
Which of one the following statements is false when using the
Shell command?
- ANSWER -When creating multiple alternate thicknesses, each
are created as
separate shell
feature
Which one of the following statements is generally true for
molded part designs? - ANSWER -Molded parts are designed
with thin walls to promote thermal cooling in the mold
When using the Sweep Along Guide command, which one of
these can you not
do? - ANSWER -Select multiple close-
looped sections
When using the Sweep Along Guide command what two sets of
curves must be
defined? - ANSWER -Section &
Guide
, The Pattern Feature and Pattern Face commands produce
similar results in
most cases. If the faces you select don't bind a region that
can be added or
subtracted to the solid body, which command should you
use? - ANSWER
Pattern
Geometry
-
What pattern would you use to create a pattern on an
imported step file? -
ANSWER -Pattern
Face
What pattern method allows you to pick from and to
points? - ANSWER -
General
What is a unique property of Pattern Geometry? - ANSWER -It
does not attempt
to perform a Boolean of the
results
The Mirror Feature command creates a new feature. When you
edit this feature
which of the following can you do? - ANSWER -Select a
different symmetry
plane
