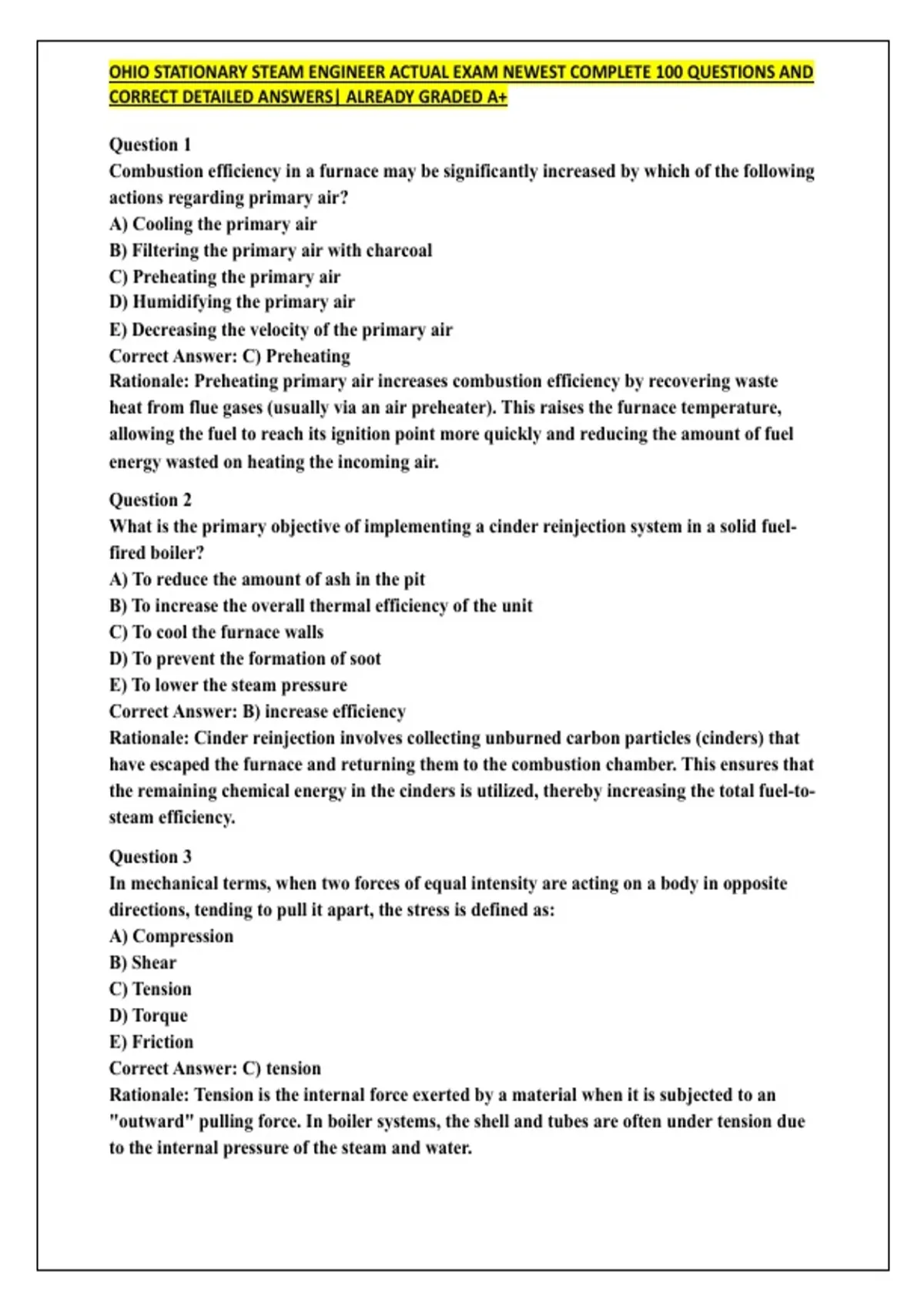

OHIO STATIONARY STEAM ENGINEER ACTUAL EXAM NEWEST COMPLETE 100 QUESTIONS AND
CORRECT DETAILED ANSWERS| ALREADY GRADED A+
Question 1
Combustion efficiency in a furnace may be significantly increased by which of the following
actions regarding primary air?
A) Cooling the primary air
B) Filtering the primary air with charcoal
C) Preheating the primary air
D) Humidifying the primary air
E) Decreasing the velocity of the primary air
Correct Answer: C) Preheating
Rationale: Preheating primary air increases combustion efficiency by recovering waste
heat from flue gases (usually via an air preheater). This raises the furnace temperature,
allowing the fuel to reach its ignition point more quickly and reducing the amount of fuel
energy wasted on heating the incoming air.
Question 2
What is the primary objective of implementing a cinder reinjection system in a solid fuel-
fired boiler?
A) To reduce the amount of ash in the pit
B) To increase the overall thermal efficiency of the unit
C) To cool the furnace walls
D) To prevent the formation of soot
E) To lower the steam pressure
Correct Answer: B) increase efficiency
Rationale: Cinder reinjection involves collecting unburned carbon particles (cinders) that
have escaped the furnace and returning them to the combustion chamber. This ensures that
the remaining chemical energy in the cinders is utilized, thereby increasing the total fuel-to-
steam efficiency.
Question 3
In mechanical terms, when two forces of equal intensity are acting on a body in opposite
directions, tending to pull it apart, the stress is defined as:
A) Compression
B) Shear
C) Tension
D) Torque
E) Friction
Correct Answer: C) tension
Rationale: Tension is the internal force exerted by a material when it is subjected to an
"outward" pulling force. In boiler systems, the shell and tubes are often under tension due
to the internal pressure of the steam and water.
, Page 2
Question 4
Which of the following statements is true regarding the "dew point" of flue gases?
A) It is the temperature at which flue gases turn into a solid.
B) It is the temperature at which the gases will condense into liquid.
C) It is the point where the gases reach maximum velocity.
D) It is the temperature required for the ignition of natural gas.
E) It is the pressure at which gases stop flowing.
Correct Answer: B) dew point is the temp at which the gasses will condense
Rationale: The dew point is a critical measurement for boiler operators. If flue gases cool
below this temperature, water vapor and acids (like sulfuric acid) will condense on the
surfaces of economizers and stacks, leading to rapid corrosion.
Question 5
Which of the following conditions will NOT cause high stack (exit gas) temperatures?
A) Dirty heating surfaces
B) Broken baffles
C) Excessive soot buildup
D) A plugged dry pipe
E) Operating the boiler at a high over-rating
Correct Answer: D) plugged dry pipe
Rationale: High stack temperatures indicate poor heat transfer or short-circuiting of gases.
A plugged dry pipe affects steam quality (moisture content) and flow, but it does not
directly prevent the water from absorbing heat from the combustion gases.
Question 6
What is the primary chemical composition of smoke produced during incomplete
combustion?
A) Pure oxygen and nitrogen
B) Unburned hydrocarbons and carbon particles
C) Water vapor and salt
D) Carbon dioxide and argon
E) Helium and hydrogen
Correct Answer: B) smoke consists of unburned hydrocarbons
Rationale: Smoke is a visible indicator of fuel waste. It consists of soot (carbon) and
unburned hydrocarbons that did not have sufficient time, temperature, or oxygen to react
completely during the combustion process.
Question 7
Which piece of environmental equipment is specifically used to reduce Sulfur Dioxide
(SO2) emissions in large coal-fired power plants?
A) Baghouse filters
B) Electrostatic precipitators
, Page 3
C) Wet or dry scrubbers
D) Cyclonic separators
E) Mechanical dust collectors
Correct Answer: C) Wet or dry scrubbers
Rationale: Scrubbers use a chemical reagent (often lime or limestone) to react with the
sulfur dioxide in flue gases. This reaction turns the harmful gas into a solid byproduct
(gypsum), preventing it from being released into the atmosphere and causing acid rain.
Question 8
In a solid fuel-fired boiler, if the operator notices a gradual increase in flue gas exit
temperatures over the course of a shift while the load remains constant, they should:
A) Increase the feedwater flow
B) Decrease the furnace draft
C) Operate the soot blowers
D) Blow down the mud drum
E) Shut down the primary air fan
Correct Answer: C) operate soot blowers
Rationale: A gradual rise in stack temperature suggests that soot is accumulating on the
fireside of the tubes. Soot acts as an insulator, preventing heat from reaching the water.
Operating soot blowers clears these deposits and restores heat transfer efficiency.
Question 9
Which type of water tube boiler is categorized as having the largest physical size and the
highest steam-generating capacity?
A) Package water tube boiler
B) A-type water tube boiler
C) Utility water tube boiler
D) Flex-tube boiler
E) Fire-box water tube boiler
Correct Answer: C) Utility watertube boiler
Rationale: Utility boilers are massive structures used in municipal power generation. They
are designed to produce millions of pounds of steam per hour at supercritical pressures, far
exceeding the capacities of industrial or package boilers.
Question 10
The "blowdown" (pressure differential) of a safety valve can be manually adjusted by
changing the setting of which component?
A) The lifting lever
B) The compression screw
C) The huddling ring (adjusting ring)
D) The valve disc
E) The discharge pipe
, Page 4
Correct Answer: C) huddling ring
Rationale: The huddling ring (or adjusting ring) controls the area through which the
escaping steam flows. By moving the ring up or down, the operator changes how much
force the steam exerts on the valve disc during the "closing" phase, thereby altering the
blowdown range.
Question 11
Copper and brass piping materials may be used for steam or water piping systems as long
as the internal temperature does not exceed:
A) 212 degrees F
B) 338 degrees F
C) 406 degrees F
D) 500 degrees F
E) 750 degrees F
Correct Answer: C) 406 degrees
Rationale: At temperatures above 406°F, copper and its alloys begin to lose their structural
strength and become susceptible to failure under pressure. For high-pressure/high-
temperature steam, steel or alloy piping is required.
Question 12
In a "3-element" feedwater control system, which of the following variables is NOT
measured to determine the position of the feedwater valve?
A) Feedwater flow
B) Steam flow
C) Drum water level
D) Drum steam pressure
E) All of the above are measured
Correct Answer: D) drum pressure
Rationale: A 3-element system coordinates Feedwater Flow, Steam Flow, and Drum Level.
It uses "feed-forward" logic to anticipate changes in water level based on steam demand.
Drum pressure is monitored for other controls but is not a component of the 3-element
feedwater loop.
Question 13
If the flame in a gas-fired boiler begins to pulsate (vibrate or "huff"), the operator can
often resolve the problem by:
A) Increasing the fuel pressure
B) Decreasing the feedwater temperature
C) Increasing the furnace draft
D) Closing the air louvers
E) Turning off the flame scanner
Correct Answer: C) increase furnace draft
