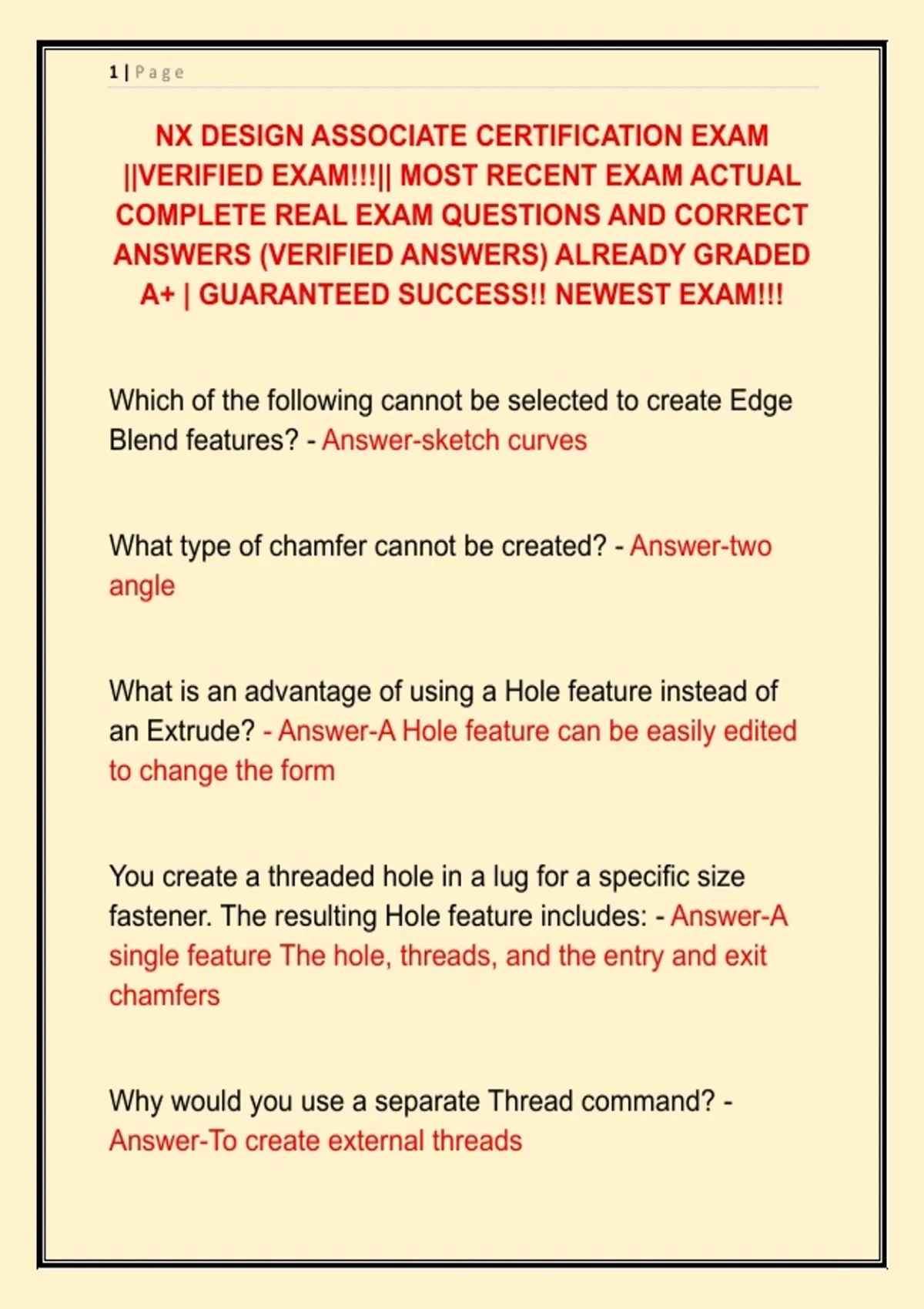

NX DESIGN ASSOCIATE CERTIFICATION EXAM
||VERIFIED EXAM!!!|| MOST RECENT EXAM ACTUAL
COMPLETE REAL EXAM QUESTIONS AND CORRECT
ANSWERS (VERIFIED ANSWERS) ALREADY GRADED
A+ | GUARANTEED SUCCESS!! NEWEST EXAM!!!
Which of the following cannot be selected to create Edge
Blend features? - Answer-sketch curves
What type of chamfer cannot be created? - Answer-two
angle
What is an advantage of using a Hole feature instead of
an Extrude? - Answer-A Hole feature can be easily edited
to change the form
You create a threaded hole in a lug for a specific size
fastener. The resulting Hole feature includes: - Answer-A
single feature The hole, threads, and the entry and exit
chamfers
Why would you use a separate Thread command? -
Answer-To create external threads
,2|Page
You can create a chamfer feature or chamfer curves inside
a sketch. What is a potential advantage of creating
chamfers in a sketch? - Answer-Your model history will
have fewer features
Why would you want to deactivate the Timestamp Order
option in the Part Navigator? - Answer-To view solid
bodies in the model
When selecting a feature in the Part Navigator, what do
the colors of the text above and below the selected
Feature mean? - Answer-The Parent- and Child
relationships
When selecting a feature in the Part Navigator what color
does the text of its children features then become? -
Answer-blue
In the Part Navigator how can you list the parameters,
expressions, and values of a feature without using the
Show Dimensions command? - Answer-Open the Details
Group
, 3|Page
After using the Show Dimensions command on a sketch
how do you erase the temporarily-displayed dimensions
from the graphics window? - Answer-Use the Refresh
command
By default, what happens to the child features when their
parent feature is deleted? - Answer-The child features are
automatically deleted
Which command could you use to control the display or a
specific feature based on the value of an expression? -
Answer-Suppress by Expression
What type of feature is used to define a new Sketch on a
non-planar face? - Answer-Datum Plane
How can you investigate the design intent of a sketch? -
Answer-Vary a dimension to see how the sketch changes
What command allows you to create a feature by rotating
a section string around an axis through a specified angle?
- Answer-revolve
