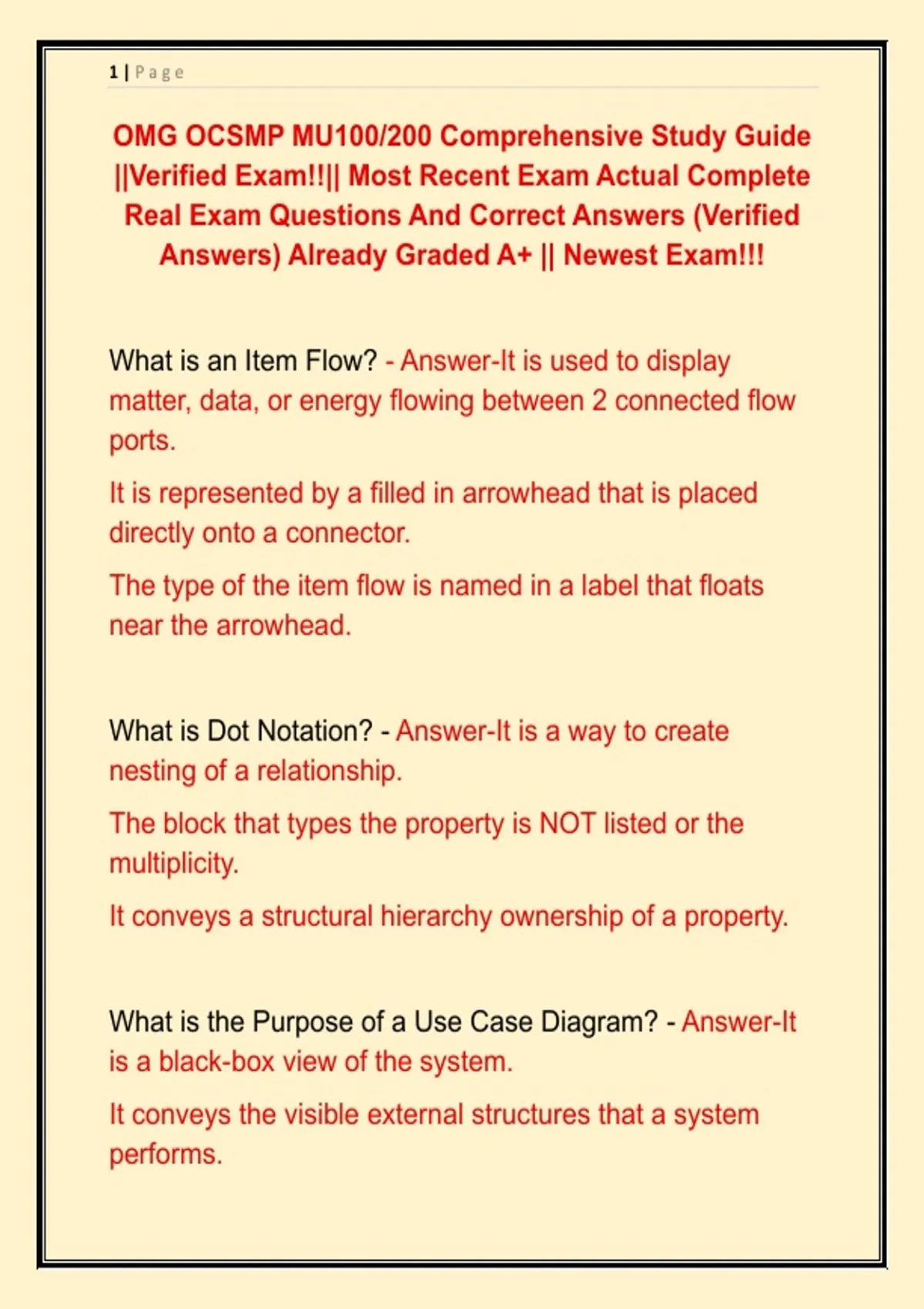

OMG OCSMP MU100/200 Comprehensive Study Guide
||Verified Exam!!|| Most Recent Exam Actual Complete
Real Exam Questions And Correct Answers (Verified
Answers) Already Graded A+ || Newest Exam!!!
What is an Item Flow? - Answer-It is used to display
matter, data, or energy flowing between 2 connected flow
ports.
It is represented by a filled in arrowhead that is placed
directly onto a connector.
The type of the item flow is named in a label that floats
near the arrowhead.
What is Dot Notation? - Answer-It is a way to create
nesting of a relationship.
The block that types the property is NOT listed or the
multiplicity.
It conveys a structural hierarchy ownership of a property.
What is the Purpose of a Use Case Diagram? - Answer-It
is a black-box view of the system.
It conveys the visible external structures that a system
performs.
,2|Page
It displays the actors that participate and invoke the use
cases in the diagram during execution.
What is a system boundary? - Answer-A system boundary
is the subject of the diagram and NOT the namespace.
It encapsulates use cases and actors in the diagram.
It is represented as a large rectangle within the diagram
frame.
What is a Base Use Case? - Answer-A base use case is
directly invoked by an actor.
It is the primary goal of the actor.
When invoked it will invoke a use case with the include
relationship.
It has an association relationship.
What is the <<include>> relationship? - Answer-It is a UC
relationship where the included use case behavior is
required.
Source = tail end
Target = arrowhead end
,3|Page
The use case at the source end is the base use case and
the arrowhead end is the target included use case.
What is the <<extend>> relationship? - Answer-It is a UC
relationship where the extended use case is an
OPTIONAL behavior that can be performed by the base
use case.
The source is the tail end
Target is the arrowhead end
The use case at the source end is the extended use case
and the use case at the target arrowhead end is the base
use case.
What is the Purpose of an IBD? - Answer-Display the
structure of a single block and display usages of a block
with part properties and reference properties.
What does an IBD convey? - Answer-The structure of a
single block, services provided or required by parts, and
types of matter data and energy that can flow across
connections.
2 Diagrams that show complementary views of a block -
Answer-IBD and BDD
, 4|Page
Allowable Model Element for IBD - Answer-block
What is a connector? - Answer-Used to show specific
connections among the internal part properties and their
connections to external reference properties.
What is a part property? - Answer-It is an internal
structural element of a block.
It is seen as a solid boundary rectangle with name : type [
].
Multiplicity can either be in brackets or in the top right of
the rectangle.
What is a reference property? - Answer-It is a structure
that is external to a block.
It is needed by the block to invoke a behavior or service.
It is represented by a dashed boundary rectangle with
name : type [multiplicity].
Multiplicity can be shown in brackets or the UR corner of
rectangle.
