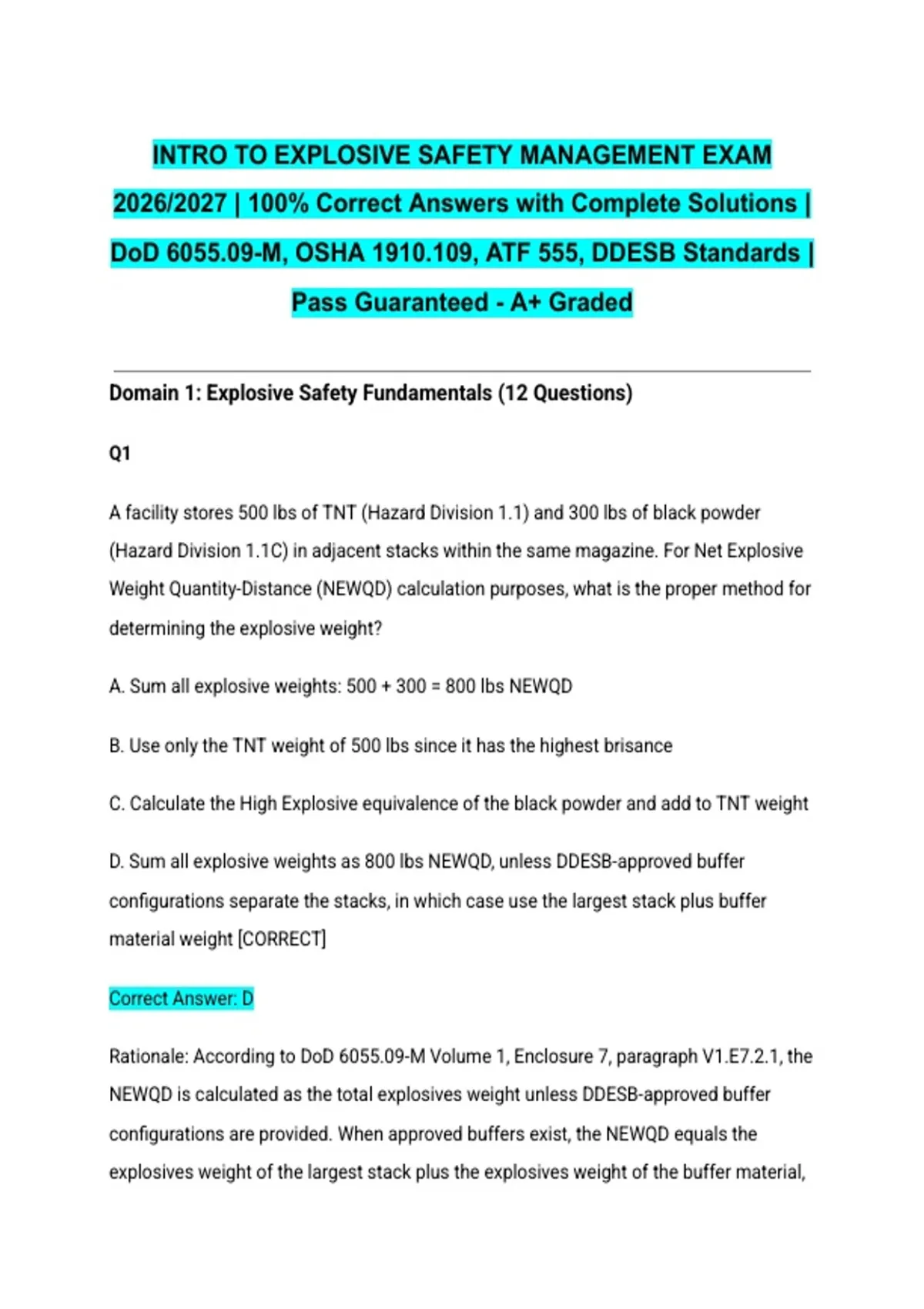

INTRO TO EXPLOSIVE SAFETY MANAGEMENT EXAM
2026/2027 | 100% Correct Answers with Complete Solutions |
DoD 6055.09-M, OSHA 1910.109, ATF 555, DDESB Standards |
Pass Guaranteed - A+ Graded
Domain 1: Explosive Safety Fundamentals (12 Questions)
Q1
A facility stores 500 lbs of TNT (Hazard Division 1.1) and 300 lbs of black powder
(Hazard Division 1.1C) in adjacent stacks within the same magazine. For Net Explosive
Weight Quantity-Distance (NEWQD) calculation purposes, what is the proper method for
determining the explosive weight?
A. Sum all explosive weights: 500 + 300 = 800 lbs NEWQD
B. Use only the TNT weight of 500 lbs since it has the highest brisance
C. Calculate the High Explosive equivalence of the black powder and add to TNT weight
D. Sum all explosive weights as 800 lbs NEWQD, unless DDESB-approved buffer
configurations separate the stacks, in which case use the largest stack plus buffer
material weight [CORRECT]
Correct Answer: D
Rationale: According to DoD 6055.09-M Volume 1, Enclosure 7, paragraph V1.E7.2.1, the
NEWQD is calculated as the total explosives weight unless DDESB-approved buffer
configurations are provided. When approved buffers exist, the NEWQD equals the
explosives weight of the largest stack plus the explosives weight of the buffer material,
,excluding the NEW of HD 1.4 . Option A is incorrect because it ignores the buffer
configuration exception. Option B is incorrect because all HD 1.1 materials contribute to
the mass explosion hazard regardless of individual brisance. Option C is incorrect
because black powder is already classified as HD 1.1C and does not require HE
equivalence conversion for QD purposes.
Q2
During a lightning storm, an explosives operator notices static discharge on the surface
of propellant grains being transferred. Which sensitivity factor is being demonstrated,
and what immediate action is required?
A. Friction sensitivity; immediately ground all equipment
B. Thermal sensitivity; cease operations and cool the propellant
C. Electrostatic discharge (ESD) sensitivity; immediately cease operations and ensure
proper grounding/bonding [CORRECT]
D. Impact sensitivity; inspect for physical damage only
Correct Answer: C
Rationale: Electrostatic discharge (ESD) is a critical sensitivity factor for propellants and
explosives. DoD 6055.09-M and NFPA 495 require immediate cessation of operations
when static discharge is observed, followed by implementation of proper grounding and
bonding procedures. ESD can provide sufficient energy to initiate electrostatic-sensitive
materials. Option A is incorrect because friction sensitivity involves mechanical rubbing,
not electrical discharge. Option B is incorrect because thermal sensitivity relates to heat
exposure, not static electricity. Option D is incorrect because impact sensitivity involves
physical shock, and merely inspecting for damage ignores the ongoing ESD hazard.
,Q3
A munitions storage area experiences a fire in one magazine containing HD 1.3
materials. The fire spreads to an adjacent magazine containing HD 1.1 materials,
causing a mass detonation. This phenomenon is best described as:
A. Deflagration to detonation transition (DDT)
B. Sympathetic detonation [CORRECT]
C. Thermal runaway
D. Flashover
Correct Answer: B
Rationale: Sympathetic detonation occurs when an explosion in one location causes
detonation of adjacent explosive materials through blast overpressure, ground shock, or
fragment impact. This is a critical hazard in explosives storage and is addressed in DoD
6055.09-M through Quantity-Distance (QD) principles and intermagazine distance
requirements. Option A (DDT) describes a single material transitioning from burning to
detonation, not inter-magazine propagation. Option C refers to a self-sustaining thermal
decomposition. Option D describes fire spread through radiant heat in structures, not
explosive propagation.
Q4
Which of the following explosive effects presents the primary hazard for determining
Inhabited Building Distance (IBD) for HD 1.1 materials?
A. Thermal radiation
, B. Blast overpressure [CORRECT]
C. Ground shock
D. Firebrands
Correct Answer: B
Rationale: For HD 1.1 (mass explosion hazard) materials, blast overpressure is the
dominant effect determining IBD per DoD 6055.09-M. The QD tables are based on the
blast overpressure required to prevent structural collapse and serious injury to
personnel in exposed structures. While fragmentation, ground shock, and thermal
effects are considered, overpressure typically governs the distance requirement for HD
1.1. Option A (thermal radiation) governs for certain propellant configurations. Option C
(ground shock) is secondary except for specific soil conditions. Option D (firebrands) is
generally a minor consideration for IBD.
Q5
A safety officer is calculating the Net Explosive Weight (NEW) for a mixed storage
magazine containing 200 lbs of Composition B (HD 1.1D), 150 lbs of 40mm ammunition
(HD 1.2E), and 50 lbs of flares (HD 1.3G). According to DoD 6055.09-M, which materials
are included in the NEW calculation for this magazine?
A. Only the Composition B (200 lbs)
B. Composition B and 40mm ammunition only (350 lbs)
C. All materials: 200 + 150 + 50 = 400 lbs [CORRECT]
D. Only materials in the same compatibility group
