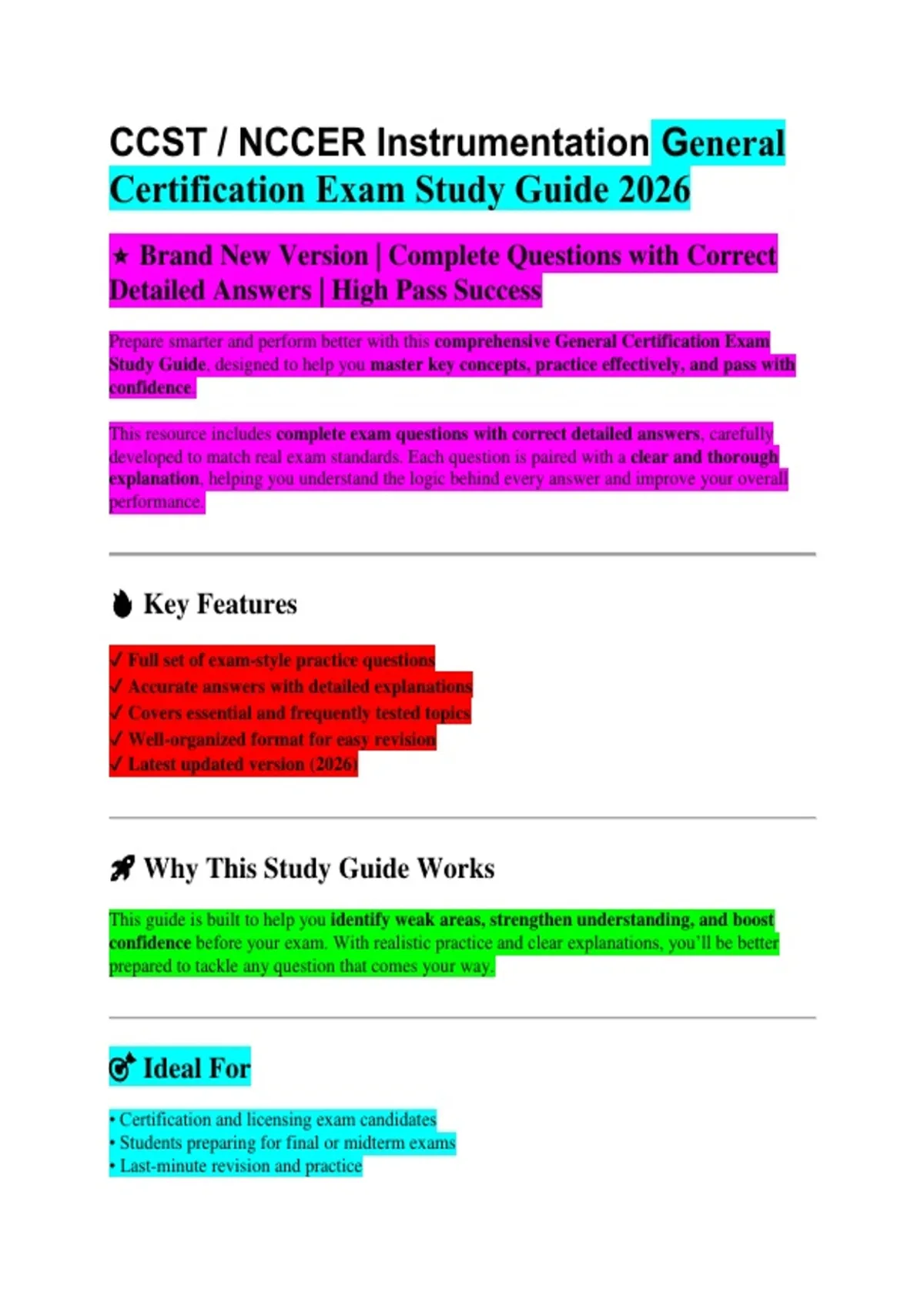

CCST / NCCER Instrumentation General
Certification Exam Study Guide 2026
⭐ Brand New Version | Complete Questions with Correct
Detailed Answers | High Pass Success
Prepare smarter and perform better with this comprehensive General Certification Exam
Study Guide, designed to help you master key concepts, practice effectively, and pass with
confidence.
This resource includes complete exam questions with correct detailed answers, carefully
developed to match real exam standards. Each question is paired with a clear and thorough
explanation, helping you understand the logic behind every answer and improve your overall
performance.
🔥 Key Features
✔ Full set of exam-style practice questions
✔ Accurate answers with detailed explanations
✔ Covers essential and frequently tested topics
✔ Well-organized format for easy revision
✔ Latest updated version (2026)
🚀 Why This Study Guide Works
This guide is built to help you identify weak areas, strengthen understanding, and boost
confidence before your exam. With realistic practice and clear explanations, you’ll be better
prepared to tackle any question that comes your way.
🎯 Ideal For
• Certification and licensing exam candidates
• Students preparing for final or midterm exams
• Last-minute revision and practice
,• Improving accuracy and test-taking skills
• Boosting overall academic or professional performance
📚 A reliable, effective, and easy-to-use study resource designed to help you succeed in any
general certification exam.
Good manufacturing practice recommends that a test instrument be _______ times
more accurate than the unit under test.
A.2
B.4
C.6
D.8 -ANSWER✅✅✅B. 4
When troubleshooting a 4-20 mA transmitter, you discover the transmitter is powering
off at 100% output. What is the most likley cause?
A. Too much resistance in the loop
B. Too little resistance in the loop
C. Excessive current in the loop
D. Excessive voltage in the loop -ANSWER✅✅✅A. Too much resistance in the loop
The statement; "Thermocouple extension wires must have the same thermo-electric
properties as the thermocouple that they are used with," is:
A. True if the extension wires are submerged in the process fluid.
B. True in most installations
C.False. Extension wires must be made from either copper or brass.
D. False. The type of extension wier makes no difference -ANSWER✅✅✅B. True in
most installations
If a current of 9mA is flowing through a 250 ohm resistor, what would be the voltage
drop across the resistor?
A. 12.5 volts
B. 22.5 volts
C. .225 volts
D. 2.25 volts -ANSWER✅✅✅D. 2.25 volts
What is the preferred orientation to use when installing a magnetic flowmeter?
A. Vertical, downward flow
B.Horizontal, upward flow
,C. Vertical, upward flow
D. Horizontal, downward flow -ANSWER✅✅✅C. Vertical, upward flow
What pressure, in psi, would be indicated by a properly calibrated absolute pressure
gage that is lying on a workbench at sea level not connected to anything?
A. 0
B. 29
C. 14.7
D. 2.9 -ANSWER✅✅✅C. 14.7
A gage pressure of 195 psi is roughly what in psia?
A. 151
B. 164
C. 178
D.210 -ANSWER✅✅✅D. 210
Which of the following will have the highest pressure difference between the surface
and 6 inches below the surface?
A. a 12in. vertical straw filled with water
B. a 10ft. diameter open tank filled with water
C. a 5ft. diameter vertical pipe filled with water
D. None of the above, because the pressure difference is the same -ANSWER✅✅✅D.
None of the above, because the pressure difference is the same
Hydrostatic head is another way of expressing:
A. Gallons
B. Pressure
C. Length
D. Mass -ANSWER✅✅✅B. Pressure
Dividing the density of the process fluid by the density of ____ gives a dimensionless
number called specific gravity.
A. mercury or mercury vapors
B. oil or natural gas
C. water or air
D. any known liquid or gas -ANSWER✅✅✅C. water or air
As the speed (velocity) of a fluid increases through a restriction, the fluid pressure
downstream
A. increases
B. decreases
C. remains unchanged
D. first increases then decreases -ANSWER✅✅✅B. decreases
What Celcius temperature reading is within an oven temperature of 215 to 220° F
, A. 103
B. 110
C. 329
D. 338 -ANSWER✅✅✅A 103
The difference between the indication of the instrument and the actual value of the
measured variable is:
A. the controlled variable
B. called set point
C. an error in the measuring instrument
D. discarded -ANSWER✅✅✅C. an error in the measuring instrument
Hydrostatic head, weight, radioactive properties, density, and sonic detectors are all
used in which methods of level measurement?
A. point
B. pressure
C. inferential
D. direct -ANSWER✅✅✅C. inferential
Differential pressure transmitters measure level by inference from:
A. Capacitance
B. Conductivity
C. Hydrostatic head
D. Thermal energy -ANSWER✅✅✅C. Hydrostatic head
Thermal elements infer level by measuring:
A. Temperature
B. Capacitance
C. Thermal conductivity
D. Displacement -ANSWER✅✅✅A. Temperature
All of the following types of level instruments can be used to detect the location of liquid
surfaces except:
A. radar
B. float
C. hydrostatic head
D. ultrasonic -ANSWER✅✅✅C. hydrostatic head
The temperature range of a transmitter is 100-200°F. The output signal range is 3-15
psig. What would be the expected output signal for an input temperature of 150°F?
A. 6 psig
B. 9 psig
C. 11.25 psig
D. 12 psig -ANSWER✅✅✅B. 9 psig
