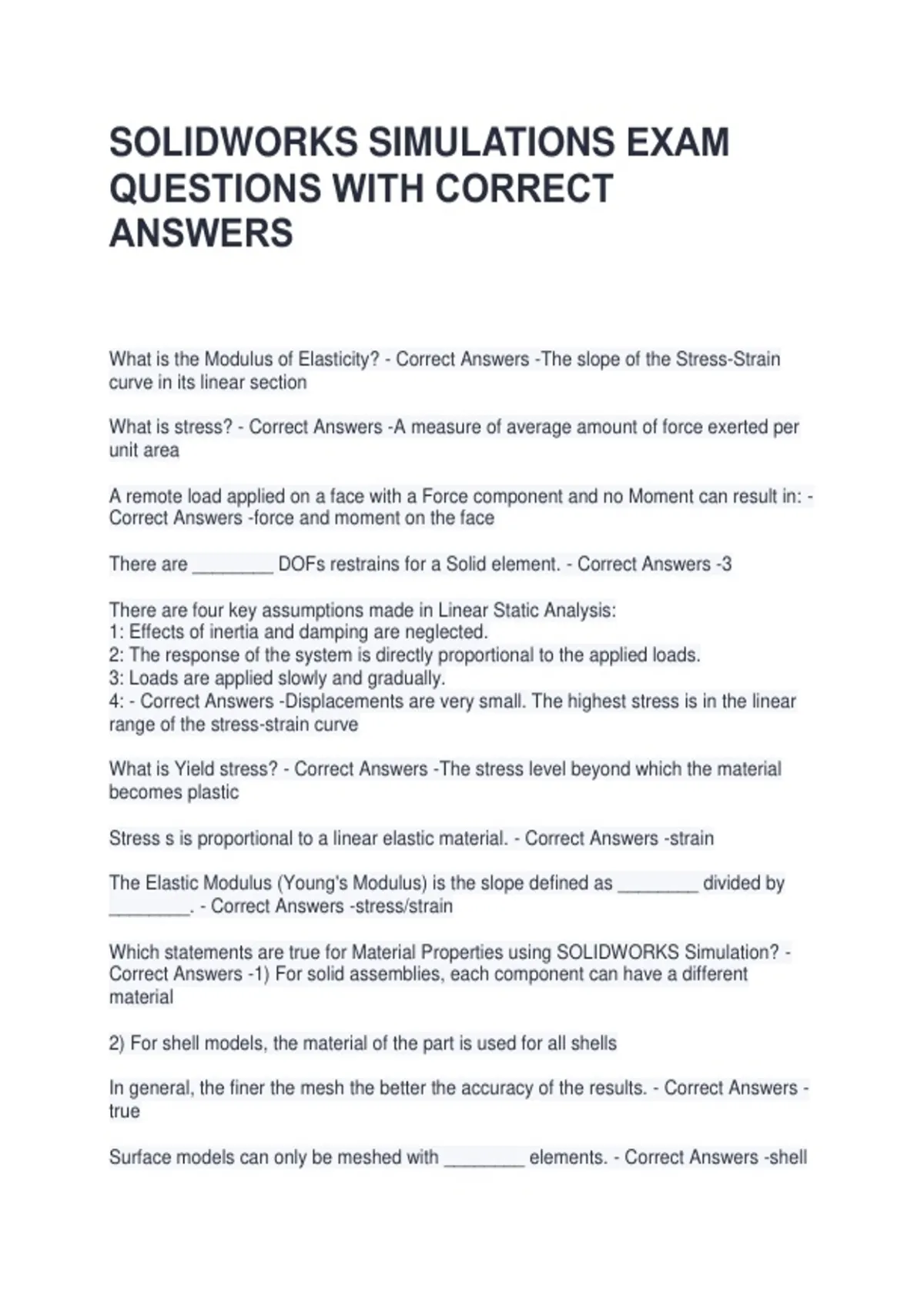

SOLIDWORKS SIMULATIONS EXAM
QUESTIONS WITH CORRECT
ANSWERS
What is the Modulus of Elasticity? - Correct Answers -The slope of the Stress-Strain
curve in its linear section
What is stress? - Correct Answers -A measure of average amount of force exerted per
unit area
A remote load applied on a face with a Force component and no Moment can result in: -
Correct Answers -force and moment on the face
There are ________ DOFs restrains for a Solid element. - Correct Answers -3
There are four key assumptions made in Linear Static Analysis:
1: Effects of inertia and damping are neglected.
2: The response of the system is directly proportional to the applied loads.
3: Loads are applied slowly and gradually.
4: - Correct Answers -Displacements are very small. The highest stress is in the linear
range of the stress-strain curve
What is Yield stress? - Correct Answers -The stress level beyond which the material
becomes plastic
Stress s is proportional to a linear elastic material. - Correct Answers -strain
The Elastic Modulus (Young's Modulus) is the slope defined as ________ divided by
________. - Correct Answers -stress/strain
Which statements are true for Material Properties using SOLIDWORKS Simulation? -
Correct Answers -1) For solid assemblies, each component can have a different
material
2) For shell models, the material of the part is used for all shells
In general, the finer the mesh the better the accuracy of the results. - Correct Answers -
true
Surface models can only be meshed with ________ elements. - Correct Answers -shell
