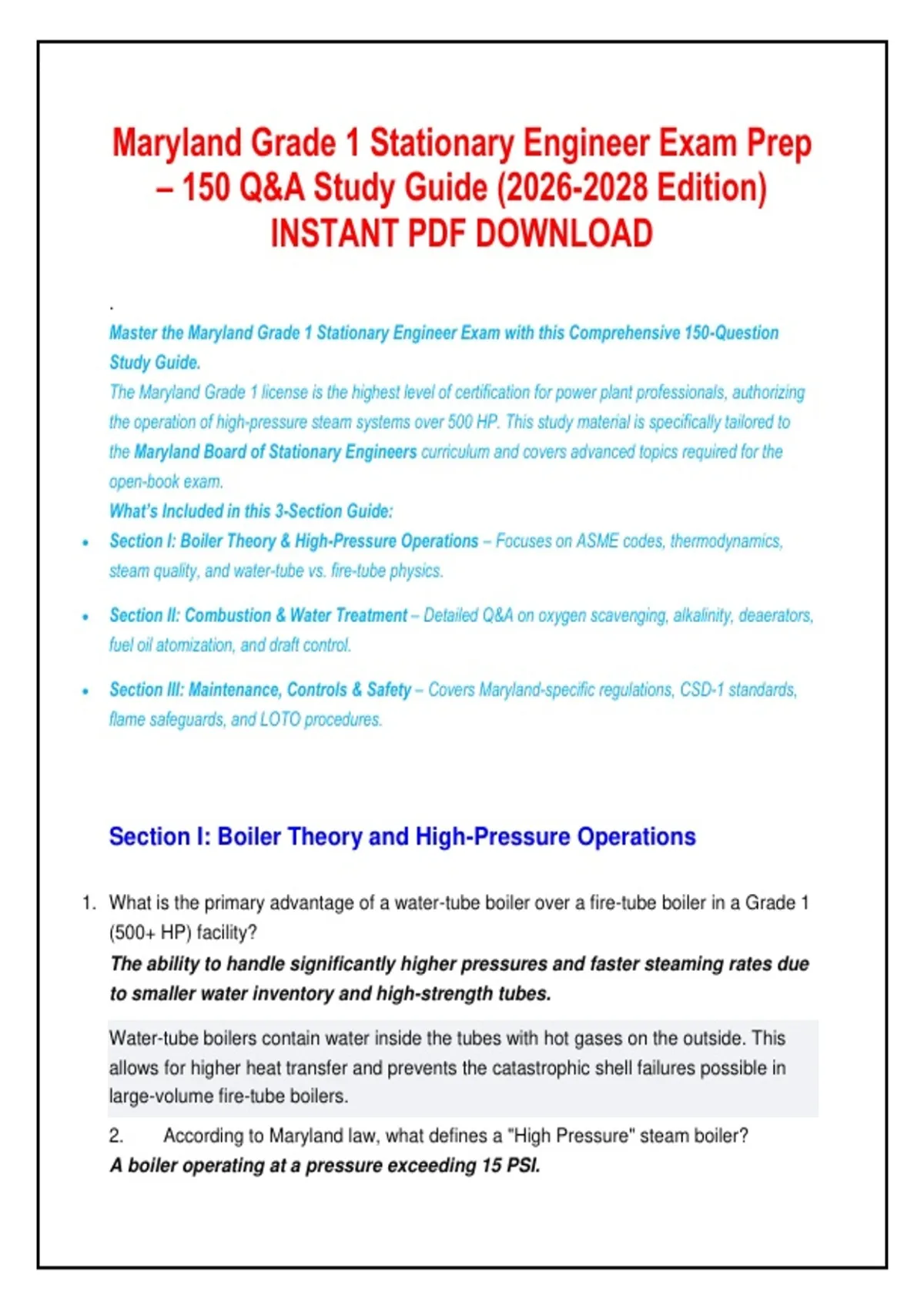

Maryland Grade 1 Stationary Engineer Exam Prep
– 150 Q&A Study Guide (2026-2028 Edition)
INSTANT PDF DOWNLOAD
.
Master the Maryland Grade 1 Stationary Engineer Exam with this Comprehensive 150-Question
Study Guide.
The Maryland Grade 1 license is the highest level of certification for power plant professionals, authorizing
the operation of high-pressure steam systems over 500 HP. This study material is specifically tailored to
the Maryland Board of Stationary Engineers curriculum and covers advanced topics required for the
open-book exam.
What’s Included in this 3-Section Guide:
Section I: Boiler Theory & High-Pressure Operations – Focuses on ASME codes, thermodynamics,
steam quality, and water-tube vs. fire-tube physics.
Section II: Combustion & Water Treatment – Detailed Q&A on oxygen scavenging, alkalinity, deaerators,
fuel oil atomization, and draft control.
Section III: Maintenance, Controls & Safety – Covers Maryland-specific regulations, CSD-1 standards,
flame safeguards, and LOTO procedures.
Section I: Boiler Theory and High-Pressure Operations
1. What is the primary advantage of a water-tube boiler over a fire-tube boiler in a Grade 1
(500+ HP) facility?
The ability to handle significantly higher pressures and faster steaming rates due
to smaller water inventory and high-strength tubes.
Water-tube boilers contain water inside the tubes with hot gases on the outside. This
allows for higher heat transfer and prevents the catastrophic shell failures possible in
large-volume fire-tube boilers.
2. According to Maryland law, what defines a "High Pressure" steam boiler?
A boiler operating at a pressure exceeding 15 PSI.
,While low-pressure licenses cover up to 15 PSI for steam, a Grade 1 license is required
for any system above this threshold, specifically those exceeding 500 horsepower.
3. What is the standard hydrostatic test pressure for a boiler that has undergone a
major pressure-part repair?
1.5 times the Maximum Allowable Working Pressure (MAWP).
The ASME code requires 150% of the MAWP to ensure the structural integrity of the
welds or tubes. The safety valves must be gagged or removed during this test.
4. Define one "Boiler Horsepower" (BHP).
The evaporation of 34.5 pounds of water per hour from and at a temperature of
212°F.
This represents a heat release of 33,475 BTU per hour. It is the standard unit used to
grade stationary engineer licenses in Maryland.
5. What occurs to the "Latent Heat of Evaporation" as boiler pressure increases?
The latent heat decreases.
As pressure rises, water molecules are more tightly packed, requiring less additional
energy to transition from liquid to vapor, until the "Critical Point" (3206 PSI) is reached.
6. When are two or more safety valves required on a single boiler?
When the boiler has more than 500 square feet of heating surface or is an electric
boiler over 1,100 kW.
Redundancy ensures that if one valve fails to lift or "simmer," the second valve can still
discharge the boiler's full steaming capacity to prevent an overpressure explosion.
7. What is the function of a "Dry Pipe" located in the top of a steam drum?
To act as a primary separator to remove moisture droplets from the steam before
it leaves the boiler.
The dry pipe uses changes in direction and internal baffles to ensure only "dry"
saturated steam enters the header, protecting downstream equipment from water
hammer.
8. What is "Wiredrawing"?
The physical erosion of a valve seat or disk caused by high-velocity steam
passing through a partially open valve.
, This typically occurs when a globe valve is used for throttling steam near its seat,
causing the steam to "cut" the metal like a wire.
9. In a water-tube boiler, what is the specific purpose of the "Mud Drum"?
To provide a low-velocity area where sediment, sludge, and scale-forming solids
can settle for removal.
Located at the lowest point of the boiler, it is the primary location for the bottom
blowdown connection.
10. What is a "Siphon" (or Pigtail) used for in pressure gauge installation?
To create a water seal that protects the Bourdon tube from direct contact with live
steam.
Steam would damage the internal mechanism of the gauge; the siphon traps
condensate which transmits pressure without the heat.
11. At what temperature does water reach its "Critical Point"?
705.4°F (at 3206.2 PSI).
At this point, the density of steam and water are identical, and water flashes to steam
instantly without a change in latent heat.
12. What is the purpose of a "Fusible Plug"?
To provide a last-resort safety warning by melting during a low-water condition.
The tin core melts at approx. 450°F, allowing steam to whistle into the furnace, alerting
the engineer and partially extinguishing the fire.
13. What is the difference between "Sensible Heat" and "Latent Heat"?
Sensible heat causes a change in temperature; Latent heat causes a change in
state without changing temperature.
Heating water from 70°F to 212°F is sensible heat; turning 212°F water into 212°F
steam is latent heat.
14. What is a "Staybolt" used for in fire-tube boiler construction?
To reinforce flat surfaces against internal pressure by tying two surfaces
together.
Flat surfaces are inherently weak under pressure; staybolts prevent the "wrapper sheet"
or "firebox" from bulging or collapsing.
