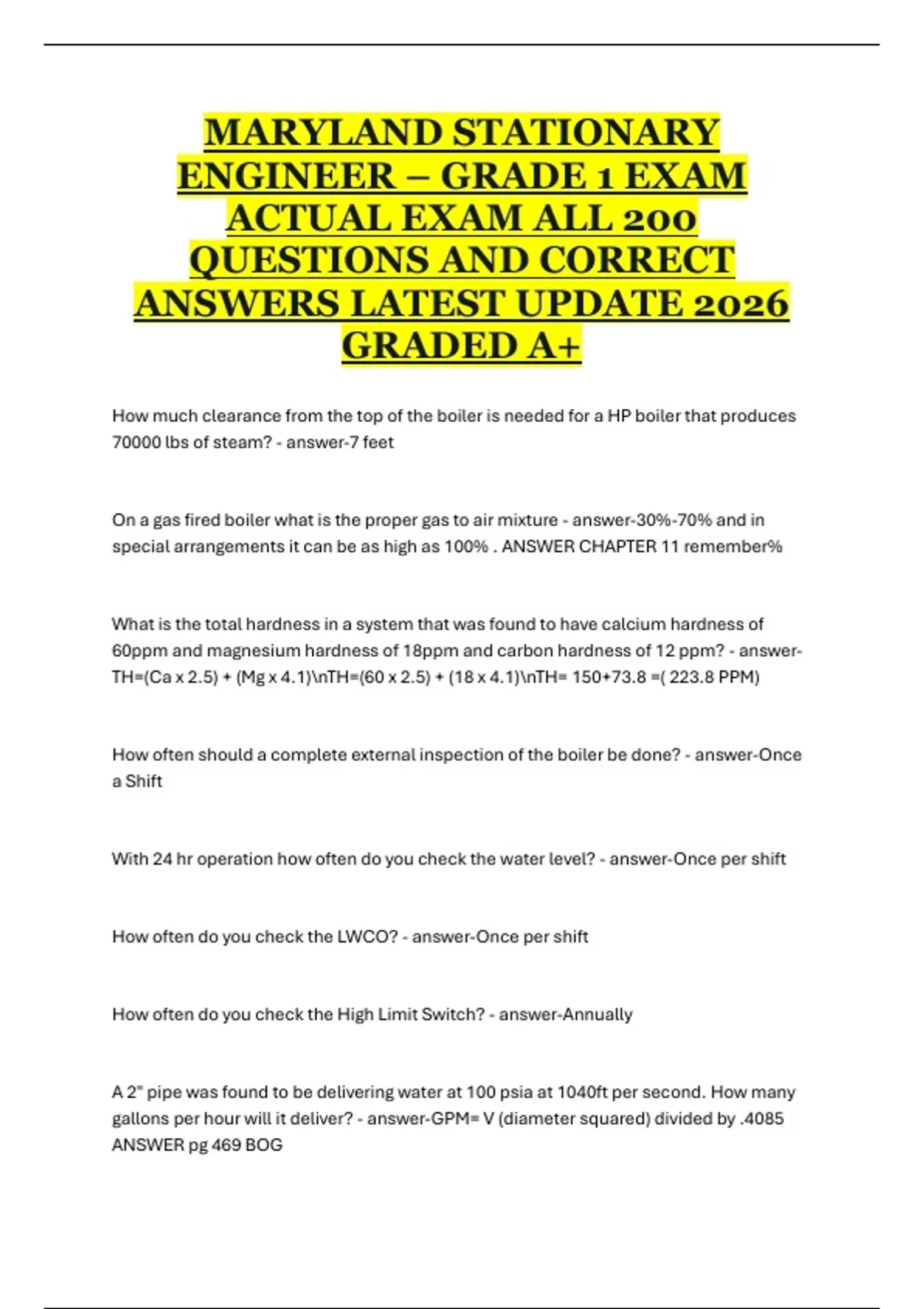

MARYLAND STATIONARY
ENGINEER – GRADE 1 EXAM
ACTUAL EXAM ALL 200
QUESTIONS AND CORRECT
ANSWERS LATEST UPDATE 2026
GRADED A+
How much clearance from the top of the boiler is needed for a HP boiler that produces
70000 lbs of steam? - answer-7 feet
On a gas fired boiler what is the proper gas to air mixture - answer-30%-70% and in
special arrangements it can be as high as 100% . ANSWER CHAPTER 11 remember%
What is the total hardness in a system that was found to have calcium hardness of
60ppm and magnesium hardness of 18ppm and carbon hardness of 12 ppm? - answer-
TH=(Ca x 2.5) + (Mg x 4.1)\nTH=(60 x 2.5) + (18 x 4.1)\nTH= 150+73.8 =( 223.8 PPM)
How often should a complete external inspection of the boiler be done? - answer-Once
a Shift
With 24 hr operation how often do you check the water level? - answer-Once per shift
How often do you check the LWCO? - answer-Once per shift
How often do you check the High Limit Switch? - answer-Annually
A 2" pipe was found to be delivering water at 100 psia at 1040ft per second. How many
gallons per hour will it deliver? - answer-GPM= V (diameter squared) divided by .4085
ANSWER pg 469 BOG
,What controls the amount of blowback on a safety valve? - answer-Blowback ring or
adjusting ring
On a open air expansion tank hot water boiler system; how high should it be mounted? -
answer-(4 Feet ) above the highest heating element.
What is the minimum top clearance of boilers with manholes? - answer-5 feet
Package boilers; steam heating boilers and hot water heating boilers shall have a
minimum clearance of? - answer-2 feet from ceiling. Code chapter 10 page76
Most important safety device on a boiler? - answer-Safety relief valve
What does a Black Liquor Boiler do? - answer-Black Liquor is the by product of wood
pulp processing in the paper making industry.
What does Black liquor boiler known for? - answer-Steam generation and recovery of
soda ash
Maximum line voltage for control on a boiler? - answer-150 volts
Under what code are boilers designed and constructed? - answer-ASME- CSD 1
How many low water cut offs are needed per code for a hot water system when a boiler
has inputs greater than 400,000 btu per hr - answer-1 LWCO is needed.
What is the minimum and maximum size for a safety valve per code for boilers? -
answer-Minimum 3/4" and Maximum 4 1/2"
What stamp is put on a boiler after repairs? - answer-"R"
,What is the equalizing system used for? - answer-The equalizing system is for warming
up the steam lead.
A blowdown valve is located at the lowest water space of a boiler for three purposes -
answer-1. to remove precipitated sludge or loose scale \n2. To permit rapid lowering of
the boiler water if it has become too high accidentally \n3. As a means of removing
water from the boiler so that fresh water may be added to keep the concentration of
solids below the point where difficulties may be experienced.
In the old power boiler which type of feed-water regulators were not used? - answer-
Electronic
After opening a boiler for repairs how much oxygen is needed? - answer-19%
What is the first thing you do when shutting down a boiler? - answer-Turn off (extinguish
fire)
What is the legal limit of acceptable asbestos particles ? - answer-0.1 fibers per cubic
centimeter
What is CREEP? - answer-Creep is defined as the slow deformation of material with
time; with the deformation taking place at elevated temperatures with no increase in
stress.
What is the BTU content of Anthracite coal? - answer-14000 btu/lb
What substance transfers electrical current in a photocell? - answer-Electricity will flow
when the CADMIUM is exposed to sufficient light.
, What device acts as a check valve in both directions and keeps pumps primed? -
answer-FOOT VALVES are used for pumps under suction pressure to prevent backflow
primed? on the suction line.
What protects boilers from explosion in the furnace? - answer-A flame guard system is
an arrangement of flame detection system; interlocks; and relays which will sense the
presence of a proper flame in a furnace and cause fuel to be shut off to the furnace if a
hazardous condition develops (improper flame or combustion).
What size pipe is used as a header in a boiler operating at 100psi? - answer-6 inches
What device is used to measure flue gasses - answer-The Orsat Analyzer
Which low water cut off does not have a mercury switch? - answer-The Submerged
electrode type
What is the btu output per lb of #4 fuel oil? - answer-18
What substance is used for the electric transmission in an RTD? - answer-Platinum is
used because of its stability at high temperatures
How much air is needed for the combustion of pulverized coal; gas; oil? - answer-50%
for coal and 10-30% for gas & oil
In old power boilers which type of feedwater regulators were not used? \n(A) hydraulic
\n(B) float \n(C) thermostatic expansion \n(D) electronic - answer-ANSWER D
electronic/electro-magnetic
What is hard forming scale? - answer-Silica
