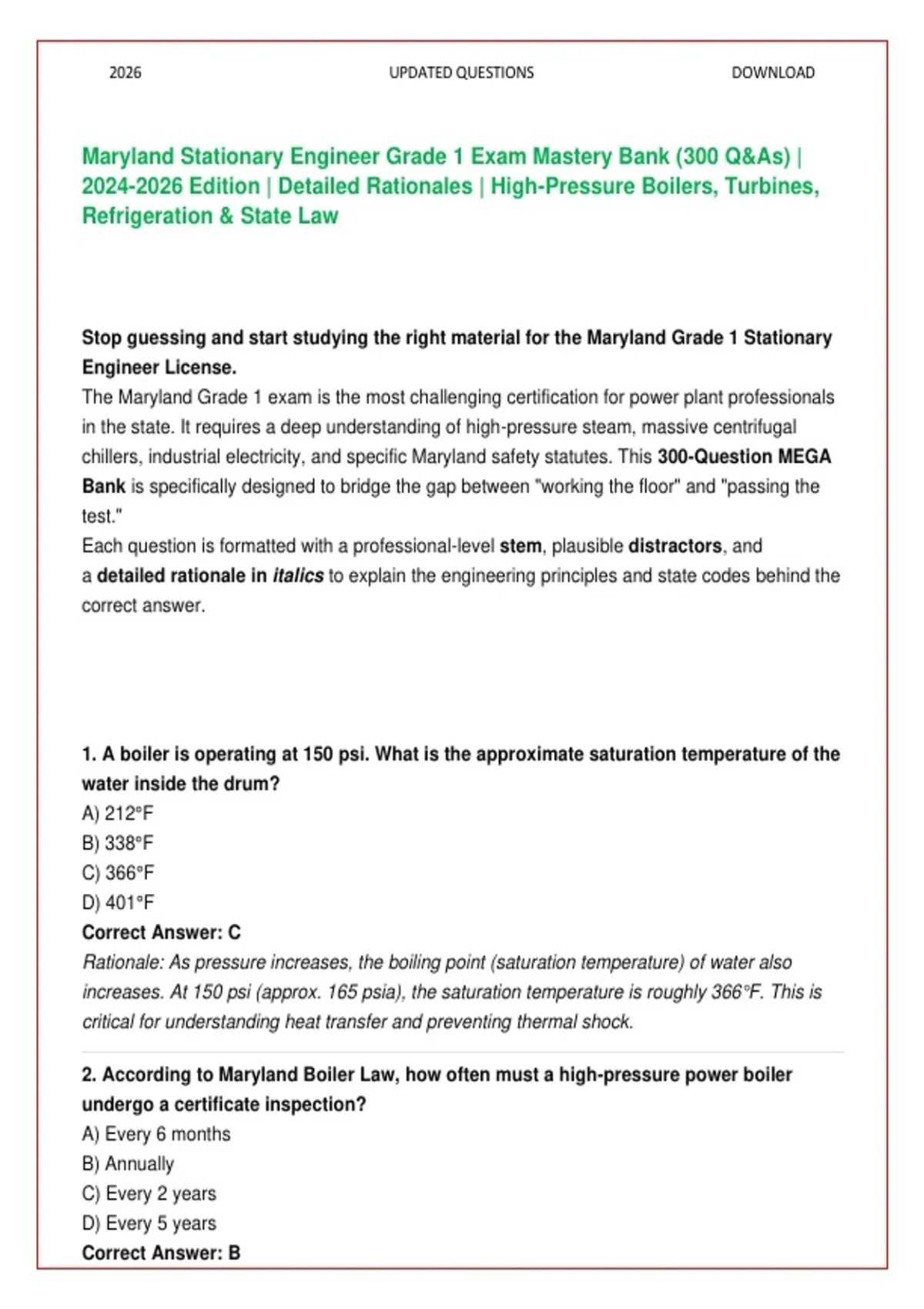

2026 UPDATED QUESTIONS DOWNLOAD
Maryland Stationary Engineer Grade 1 Exam Mastery Bank (300 Q&As) |
2024-2026 Edition | Detailed Rationales | High-Pressure Boilers, Turbines,
Refrigeration & State Law
Stop guessing and start studying the right material for the Maryland Grade 1 Stationary
Engineer License.
The Maryland Grade 1 exam is the most challenging certification for power plant professionals
in the state. It requires a deep understanding of high-pressure steam, massive centrifugal
chillers, industrial electricity, and specific Maryland safety statutes. This 300-Question MEGA
Bank is specifically designed to bridge the gap between "working the floor" and "passing the
test."
Each question is formatted with a professional-level stem, plausible distractors, and
a detailed rationale in italics to explain the engineering principles and state codes behind the
correct answer.
1. A boiler is operating at 150 psi. What is the approximate saturation temperature of the
water inside the drum?
A) 212°F
B) 338°F
C) 366°F
D) 401°F
Correct Answer: C
Rationale: As pressure increases, the boiling point (saturation temperature) of water also
increases. At 150 psi (approx. 165 psia), the saturation temperature is roughly 366°F. This is
critical for understanding heat transfer and preventing thermal shock.
2. According to Maryland Boiler Law, how often must a high-pressure power boiler
undergo a certificate inspection?
A) Every 6 months
B) Annually
C) Every 2 years
D) Every 5 years
Correct Answer: B
, 2026 UPDATED QUESTIONS DOWNLOAD
Rationale: Maryland law requires high-pressure boilers (operating over 15 psi) to be inspected
annually. This usually includes an internal inspection and an external inspection while under
pressure.
3. What is the primary purpose of a "Continuous Blowdown" system on a high-pressure
steam boiler?
A) To lower the water level quickly in an emergency.
B) To remove heavy sludge from the bottom of the mud drum.
C) To control the concentration of Total Dissolved Solids (TDS) in the boiler water.
D) To drain the boiler for seasonal maintenance.
Correct Answer: C
Rationale: Continuous blowdown is located near the water surface in the steam drum to
remove concentrated dissolved solids. This prevents foaming and "carryover," which can
damage turbines and downstream piping.
4. In a large refrigeration system using Ammonia (R-717), what is the primary safety
concern regarding a significant leak?
A) It is odorless and causes asphyxiation.
B) It is highly flammable and explosive at low concentrations.
C) It is toxic and highly irritating to the respiratory tract.
D) It causes immediate freezing of all metal components.
Correct Answer: C
Rationale: Ammonia is a toxic refrigerant. While it is slightly flammable, its primary danger in
an engine room is its toxicity and the fact that it reacts violently with moisture in the eyes,
throat, and lungs.
5. Which device is used to measure the "Turbidity" of boiler feedwater?
A) Hydrometer
B) Ohmmeter
C) Photometer
D) Salinometer
Correct Answer: C
Rationale: Turbidity refers to the cloudiness of the water caused by suspended particles. A
photometer measures light transmission through the water to determine the level of impurities.
6. A synchronous motor is often used in large plants because it can be used to:
A) Eliminate the need for a backup generator.
B) Improve the power factor of the electrical system.
C) Run without any lubrication.
D) Convert DC power to AC power.
, 2026 UPDATED QUESTIONS DOWNLOAD
Correct Answer: B
Rationale: By over-exciting the rotor of a synchronous motor, it can act as a "synchronous
condenser," providing leading reactive power to counteract the lagging power factor caused by
induction motors in the plant.
7. What does a "Closed Feedwater Heater" use to heat the water?
A) Direct mixing of steam and water.
B) An internal electric heating element.
C) Steam passing through tubes surrounded by feedwater.
D) Friction from high-speed pumps.
Correct Answer: C
Rationale: In a closed heater, the steam and water do not mix. Heat is exchanged through tube
walls. This is different from a Deaerator (an open heater), where steam and water mix directly.
8. If a boiler's safety valve is set to pop at 200 psi, what is the minimum required
"blowback" (differential) before the valve reseats?
A) 2 psi
B) 4 psi
C) 10 psi
D) 20 psi
Correct Answer: B
Rationale: ASME code usually requires a minimum blowback of 2% of the set pressure or 2
psi, whichever is greater. For a 200 psi valve, 2% is 4 psi. This prevents "chattering" or
constant opening/closing of the valve.
9. What is the main function of the "Evaporator" in a centrifugal chiller system?
A) To reject heat to the cooling tower.
B) To compress the refrigerant vapor.
C) To absorb heat from the chilled water loop into the refrigerant.
D) To store liquid refrigerant during the off-cycle.
Correct Answer: C
Rationale: The evaporator is where the "chilling" happens. Low-pressure liquid refrigerant boils
off into a vapor, absorbing heat from the water circulating through the building's HVAC system.
10. A "Hard" water supply for a boiler is primarily caused by high concentrations of:
A) Sodium and Chloride.
B) Calcium and Magnesium.
C) Iron and Copper.
D) Dissolved Oxygen and Nitrogen.
Correct Answer: B
, 2026 UPDATED QUESTIONS DOWNLOAD
Rationale: Hardness is the measure of scale-forming minerals, specifically calcium and
magnesium carbonates. If not treated, these minerals will bake onto boiler tubes, creating an
insulating layer that leads to overheating and tube failure.
11. Which instrument is used to check the specific gravity of the electrolyte in a lead-
acid battery bank?
A) Hygrometer
B) Hydrometer
C) Psychrometer
D) Manometer
Correct Answer: B
Rationale: A hydrometer measures the density of the liquid compared to water. In a battery,
the specific gravity drops as the battery discharges.
12. What is the function of a "Steam Traps" in a steam heating system?
A) To catch debris and scale.
B) To allow condensate and air to pass while stopping steam.
C) To increase the pressure of the steam.
D) To vent excess steam to the atmosphere.
Correct Answer: B
Rationale: Steam traps are essential for efficiency. They ensure that only latent heat is used in
the heat exchanger by holding the steam until it condenses into water.
13. In Maryland, a Grade 1 Stationary Engineer is authorized to take charge of a plant
with a capacity of:
A) Up to 100 Horsepower.
B) Up to 500 Horsepower.
C) Up to 1,000 Horsepower.
D) Unlimited Horsepower.
Correct Answer: D
Rationale: The Grade 1 license is the highest level of certification in Maryland, allowing the
engineer to serve as the Chief Engineer of any size plant, regardless of horsepower or
pressure.
14. What occurs when a boiler is "Surcharged"?
A) The safety valve fails to open.
B) The water level is too high, leading to carryover.
C) The fuel-to-air ratio is too high in the burner.
D) The electrical demand exceeds the plant's capacity.
Correct Answer: B
Maryland Stationary Engineer Grade 1 Exam Mastery Bank (300 Q&As) |
2024-2026 Edition | Detailed Rationales | High-Pressure Boilers, Turbines,
Refrigeration & State Law
Stop guessing and start studying the right material for the Maryland Grade 1 Stationary
Engineer License.
The Maryland Grade 1 exam is the most challenging certification for power plant professionals
in the state. It requires a deep understanding of high-pressure steam, massive centrifugal
chillers, industrial electricity, and specific Maryland safety statutes. This 300-Question MEGA
Bank is specifically designed to bridge the gap between "working the floor" and "passing the
test."
Each question is formatted with a professional-level stem, plausible distractors, and
a detailed rationale in italics to explain the engineering principles and state codes behind the
correct answer.
1. A boiler is operating at 150 psi. What is the approximate saturation temperature of the
water inside the drum?
A) 212°F
B) 338°F
C) 366°F
D) 401°F
Correct Answer: C
Rationale: As pressure increases, the boiling point (saturation temperature) of water also
increases. At 150 psi (approx. 165 psia), the saturation temperature is roughly 366°F. This is
critical for understanding heat transfer and preventing thermal shock.
2. According to Maryland Boiler Law, how often must a high-pressure power boiler
undergo a certificate inspection?
A) Every 6 months
B) Annually
C) Every 2 years
D) Every 5 years
Correct Answer: B
, 2026 UPDATED QUESTIONS DOWNLOAD
Rationale: Maryland law requires high-pressure boilers (operating over 15 psi) to be inspected
annually. This usually includes an internal inspection and an external inspection while under
pressure.
3. What is the primary purpose of a "Continuous Blowdown" system on a high-pressure
steam boiler?
A) To lower the water level quickly in an emergency.
B) To remove heavy sludge from the bottom of the mud drum.
C) To control the concentration of Total Dissolved Solids (TDS) in the boiler water.
D) To drain the boiler for seasonal maintenance.
Correct Answer: C
Rationale: Continuous blowdown is located near the water surface in the steam drum to
remove concentrated dissolved solids. This prevents foaming and "carryover," which can
damage turbines and downstream piping.
4. In a large refrigeration system using Ammonia (R-717), what is the primary safety
concern regarding a significant leak?
A) It is odorless and causes asphyxiation.
B) It is highly flammable and explosive at low concentrations.
C) It is toxic and highly irritating to the respiratory tract.
D) It causes immediate freezing of all metal components.
Correct Answer: C
Rationale: Ammonia is a toxic refrigerant. While it is slightly flammable, its primary danger in
an engine room is its toxicity and the fact that it reacts violently with moisture in the eyes,
throat, and lungs.
5. Which device is used to measure the "Turbidity" of boiler feedwater?
A) Hydrometer
B) Ohmmeter
C) Photometer
D) Salinometer
Correct Answer: C
Rationale: Turbidity refers to the cloudiness of the water caused by suspended particles. A
photometer measures light transmission through the water to determine the level of impurities.
6. A synchronous motor is often used in large plants because it can be used to:
A) Eliminate the need for a backup generator.
B) Improve the power factor of the electrical system.
C) Run without any lubrication.
D) Convert DC power to AC power.
, 2026 UPDATED QUESTIONS DOWNLOAD
Correct Answer: B
Rationale: By over-exciting the rotor of a synchronous motor, it can act as a "synchronous
condenser," providing leading reactive power to counteract the lagging power factor caused by
induction motors in the plant.
7. What does a "Closed Feedwater Heater" use to heat the water?
A) Direct mixing of steam and water.
B) An internal electric heating element.
C) Steam passing through tubes surrounded by feedwater.
D) Friction from high-speed pumps.
Correct Answer: C
Rationale: In a closed heater, the steam and water do not mix. Heat is exchanged through tube
walls. This is different from a Deaerator (an open heater), where steam and water mix directly.
8. If a boiler's safety valve is set to pop at 200 psi, what is the minimum required
"blowback" (differential) before the valve reseats?
A) 2 psi
B) 4 psi
C) 10 psi
D) 20 psi
Correct Answer: B
Rationale: ASME code usually requires a minimum blowback of 2% of the set pressure or 2
psi, whichever is greater. For a 200 psi valve, 2% is 4 psi. This prevents "chattering" or
constant opening/closing of the valve.
9. What is the main function of the "Evaporator" in a centrifugal chiller system?
A) To reject heat to the cooling tower.
B) To compress the refrigerant vapor.
C) To absorb heat from the chilled water loop into the refrigerant.
D) To store liquid refrigerant during the off-cycle.
Correct Answer: C
Rationale: The evaporator is where the "chilling" happens. Low-pressure liquid refrigerant boils
off into a vapor, absorbing heat from the water circulating through the building's HVAC system.
10. A "Hard" water supply for a boiler is primarily caused by high concentrations of:
A) Sodium and Chloride.
B) Calcium and Magnesium.
C) Iron and Copper.
D) Dissolved Oxygen and Nitrogen.
Correct Answer: B
, 2026 UPDATED QUESTIONS DOWNLOAD
Rationale: Hardness is the measure of scale-forming minerals, specifically calcium and
magnesium carbonates. If not treated, these minerals will bake onto boiler tubes, creating an
insulating layer that leads to overheating and tube failure.
11. Which instrument is used to check the specific gravity of the electrolyte in a lead-
acid battery bank?
A) Hygrometer
B) Hydrometer
C) Psychrometer
D) Manometer
Correct Answer: B
Rationale: A hydrometer measures the density of the liquid compared to water. In a battery,
the specific gravity drops as the battery discharges.
12. What is the function of a "Steam Traps" in a steam heating system?
A) To catch debris and scale.
B) To allow condensate and air to pass while stopping steam.
C) To increase the pressure of the steam.
D) To vent excess steam to the atmosphere.
Correct Answer: B
Rationale: Steam traps are essential for efficiency. They ensure that only latent heat is used in
the heat exchanger by holding the steam until it condenses into water.
13. In Maryland, a Grade 1 Stationary Engineer is authorized to take charge of a plant
with a capacity of:
A) Up to 100 Horsepower.
B) Up to 500 Horsepower.
C) Up to 1,000 Horsepower.
D) Unlimited Horsepower.
Correct Answer: D
Rationale: The Grade 1 license is the highest level of certification in Maryland, allowing the
engineer to serve as the Chief Engineer of any size plant, regardless of horsepower or
pressure.
14. What occurs when a boiler is "Surcharged"?
A) The safety valve fails to open.
B) The water level is too high, leading to carryover.
C) The fuel-to-air ratio is too high in the burner.
D) The electrical demand exceeds the plant's capacity.
Correct Answer: B
