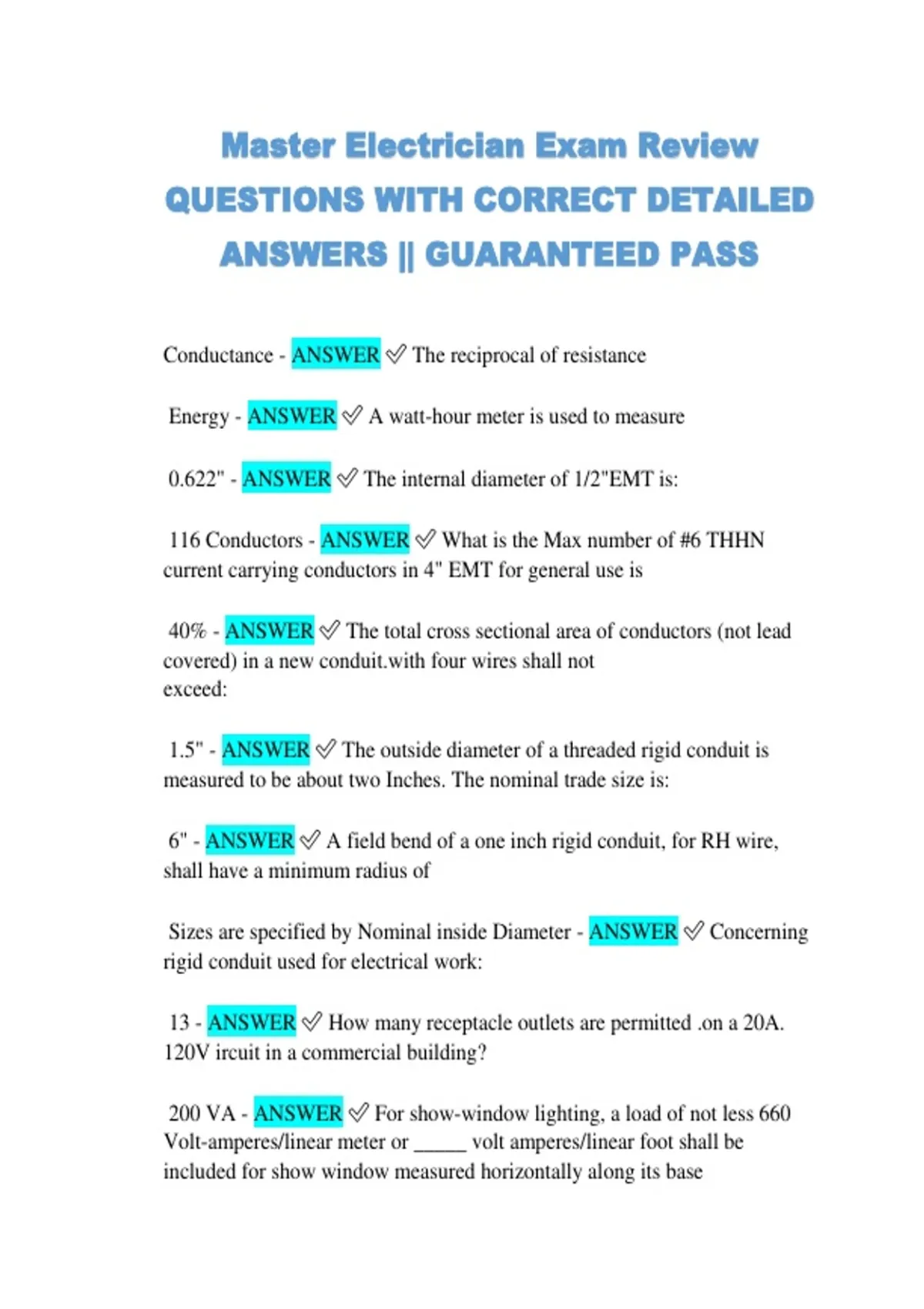

Master Electrician Exam Review QUESTIONS WITH CORRECT DETAILED ANSWERS || GUARANTEED PASS

Master Electrician Exam Review QUESTIONS WITH CORRECT DETAILED ANSWERS || GUARANTEED PASS Conductance - ANSWER The reciprocal of resistance Energy - ANSWER A watt-hour meter is used to measure 0.622" - ANSWER The internal diameter of 1/2"EMT is: 116 Conductors - ANSWER What is the Max number of #6 THHN current carrying conductors in 4" EMT for general use is 40% - ANSWER The total cross sectional area of conductors (not lead covered) in a new four wires shall not exceed: 1.5" - ANSWER The outside diameter of a threaded rigid conduit is measured to be about two Inches. The nominal trade size is: 6" - ANSWER A field bend of a one inch rigid conduit, for RH wire, shall have a minimum radius of Sizes are specified by Nominal inside Diameter - ANSWER Concerning rigid conduit used for electrical work: 13 - ANSWER How many receptacle outlets are permitted .on a 20A. 120V ircuit in a commercial building? 200 VA - ANSWER For show-window lighting, a load of not less 660 Volt-amperes/linear meter or _____ volt amperes/linear foot shall be included for show window measured horizontally along its base 10 feet above grade level - ANSWER Open conductors which are not service entrance cables shall not be installed less than which of the following Supported - ANSWER Open conductors shall be ______ on glass or porcelain knobs, racks, brackets, or stain insulators 4" - ANSWER Open conductors installed outside shall be separated from open conductors of other circuits or systems by not less than . 3' - ANSWER Service conductors installed as unjacketed multiconductor cable shall have a minimum clearance of ______ from window s that are designed to be opened, doors, porches, stairs, fire escapes, or similar locations. 24" - ANSWER Where it is impracticable to locate the service head above the point of attachment, the service head location shall be permitted not farther than______from the point of attachment power supply failure - ANSWER When the service disconnecting means is a power-operated switch or circuit breaker, it shall be able to be opened by hand in the event of a . Can be connected to line side of service disconnect. - ANSWER What is true about installation of a Type 1 TVSS 5000 VA - ANSWER Minimum VA for a Dryers 1000A - ANSWER Ground fault protection of equipment shall be provided for solidly grounded wye electrical services of more than 150 volts-to-ground, but not exceeding 600V phase-to-phase for each service disconnecting means rated __________ #4 cooper & #2 Aluminum - ANSWER What is the minimum size Service Conductor allowed for a dwelling unit 4% - ANSWER The maximum voltage drop from Service point to the last overcurrent device in a dwelling unit? for the practical safeguarding of persons and property - ANSWER The NEC is ______ an electrical system essentially free from hazard - ANSWER Compliance with the provisions of the NEC will result in a. efficient use ,convenience, good service or future expansion·of electrical use - ANSWER The Code contains provisions considered necessary for safety, which will not necessarily result in overloading of wiring systems by methods or usage not in conformity with the NEC, initial wiring not providing for increases in the use of electricity - ANSWER Hazards often occur because of True - ANSWER The Code isn't a design specification standard or instruction manual for the untrained and unqualified signaling, electrical conductors, equipment, and raceways, communications - ANSWER The following systems shall be installed in accordance with the NEC requirements: electrical conductors and equipment, optical fiber cables within or on public and private buildings, outside conductors and equipment on the premises - ANSWER The NEC applies to the installation of True - ANSWER The NEC does not cover electrical installations in ships, watercraft, railway rolling stock, aircraft, or automotive vehicles. Accessible (as applied to equipment) - ANSWER Admitting close approach, not guarded by locked doors, elevation, or other effective means, is referred to as accessible, readily. - ANSWER Capable of being reached quickly for operation, renewal, or inspections without resorting to portable ladders and such is known as accessible (as applied to wiring methods) - ANSWER Capable of being removed or exposed without damaging the building structure or finish, or not permanently· closed in by the structure or finish of the building is known as Ampacity - ANSWER The current in amperes a conductor Ca.n carry continuously, where the temperature will not be raised in excess of the conductor's insulation temperature rating is called its_· approved - ANSWER Acceptable to the authority having jurisdiction means connected - ANSWER Bonded can be described as to establish electrical continuity and and conductivity Bathroom - ANSWER A _______ is an area that includes a basin with a toilet, tub, or shower. main bonding - ANSWER The connection between the grounded conductor and the equipment grounding conductor at the service is accomplished by installing a(n)_______ jumper. Individual - ANSWER A branch circuit that supplies only one utilization equipment is a(n) _______branch circuit
