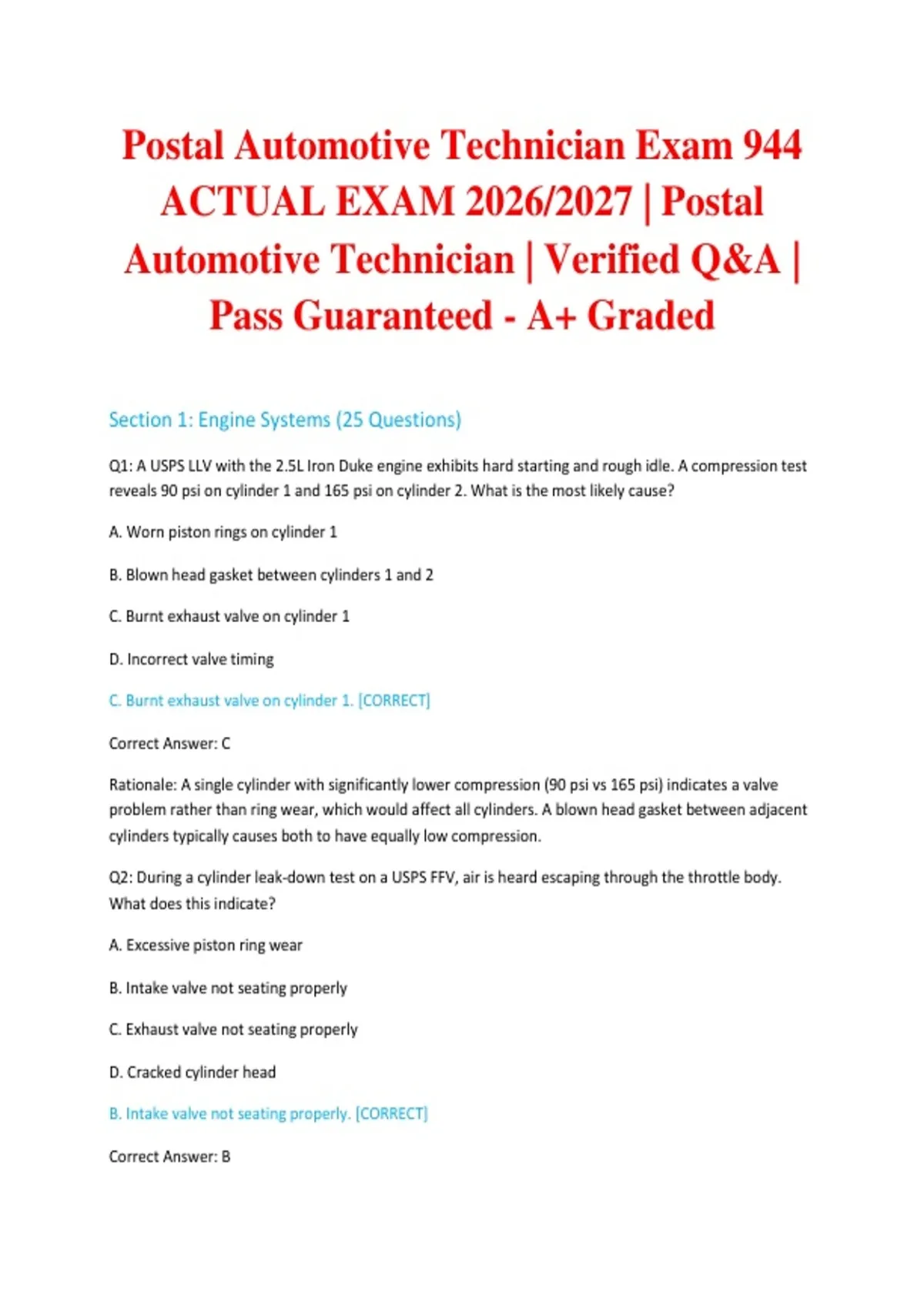

Postal Automotive Technician Exam 944
ACTUAL EXAM 2026/2027 | Postal
Automotive Technician | Verified Q&A |
Pass Guaranteed - A+ Graded
Section 1: Engine Systems (25 Questions)
Q1: A USPS LLV with the 2.5L Iron Duke engine exhibits hard starting and rough idle. A compression test
reveals 90 psi on cylinder 1 and 165 psi on cylinder 2. What is the most likely cause?
A. Worn piston rings on cylinder 1
B. Blown head gasket between cylinders 1 and 2
C. Burnt exhaust valve on cylinder 1
D. Incorrect valve timing
C. Burnt exhaust valve on cylinder 1. [CORRECT]
Correct Answer: C
Rationale: A single cylinder with significantly lower compression (90 psi vs 165 psi) indicates a valve
problem rather than ring wear, which would affect all cylinders. A blown head gasket between adjacent
cylinders typically causes both to have equally low compression.
Q2: During a cylinder leak-down test on a USPS FFV, air is heard escaping through the throttle body.
What does this indicate?
A. Excessive piston ring wear
B. Intake valve not seating properly
C. Exhaust valve not seating properly
D. Cracked cylinder head
B. Intake valve not seating properly. [CORRECT]
Correct Answer: B
,Rationale: Air escaping through the throttle body during leak-down testing indicates leakage past the
intake valve, as the intake port connects directly to the throttle body when the valve is open during the
test cycle.
Q3: A technician measures 5 in-Hg of vacuum at idle on a warm 2.5L engine. Normal specification is 18-
22 in-Hg. What is the most likely cause?
A. Normal condition for high altitude operation
B. Late ignition timing
C. Worn piston rings or valves
D. Restricted exhaust system
C. Worn piston rings or valves. [CORRECT]
Correct Answer: C
Rationale: Low vacuum readings at idle typically indicate engine mechanical problems such as worn
rings, leaking valves, or improper valve timing. A reading of 5 in-Hg is severely low and points to
significant internal engine wear.
Q4: Which component maintains consistent fuel pressure differential across fuel injectors in a port fuel
injection system?
A. Fuel pressure regulator
B. Fuel pump relay
C. Fuel filter
D. Fuel rail pressure sensor
A. Fuel pressure regulator. [CORRECT]
Correct Answer: A
Rationale: The fuel pressure regulator maintains a constant pressure differential (typically 35-45 psi)
between the fuel rail and intake manifold, ensuring consistent fuel delivery regardless of engine load or
vacuum changes.
Q5: A USPS Metris van exhibits extended cranking before starting, especially when hot. Fuel pressure
drops immediately after key-off. What is the most likely cause?
A. Faulty fuel pump check valve
B. Clogged fuel filter
,C. Defective fuel pressure regulator
D. Leaking fuel injector
A. Faulty fuel pump check valve. [CORRECT]
Correct Answer: A
Rationale: The fuel pump check valve maintains system pressure after shutdown. When it fails, fuel
drains back to the tank, causing extended cranking while the pump rebuilds pressure. This is especially
noticeable on hot starts when fuel vaporization occurs more readily.
Q6: Which ignition system component is eliminated in a waste spark ignition system compared to a
traditional distributor system?
A. Ignition coils
B. Spark plug wires
C. Distributor cap and rotor
D. Spark plugs
C. Distributor cap and rotor. [CORRECT]
Correct Answer: C
Rationale: Waste spark ignition systems use coil packs that fire pairs of spark plugs simultaneously,
eliminating the need for a distributor cap and rotor to route high voltage to individual cylinders.
Q7: A USPS ProMaster 2500 exhibits overheating under load but maintains normal temperature at idle.
Technician notes the radiator fan operates at low speed only. What is the most likely cause?
A. Faulty thermostat stuck closed
B. Inoperative high-speed fan relay or circuit
C. Clogged radiator
D. Water pump impeller failure
B. Inoperative high-speed fan relay or circuit. [CORRECT]
Correct Answer: B
Rationale: Overheating under load with normal idle temperature indicates insufficient cooling airflow at
high demand. The low-speed fan operation confirms basic circuit function, while the lack of high-speed
operation points to a relay or control circuit failure.
, Q8: What is the primary purpose of the thermostat's bypass circuit when the thermostat is closed?
A. To prevent coolant flow entirely
B. To allow coolant circulation within the engine and heater core
C. To direct all coolant through the radiator
D. To increase system pressure
B. To allow coolant circulation within the engine and heater core. [CORRECT]
Correct Answer: B
Rationale: The bypass circuit allows coolant to circulate through the engine and heater core while the
thermostat is closed, preventing hot spots and providing cabin heat during warm-up.
Q9: Which oil viscosity would be most appropriate for a USPS LLV operating in Minneapolis during
January (average low: 7°F)?
A. SAE 30
B. 10W-30
C. 5W-30
D. 20W-50
C. 5W-30. [CORRECT]
Correct Answer: C
Rationale: The "W" rating indicates cold-start viscosity. In extremely cold climates, lower first numbers
(5W vs 10W) provide better cold-start protection and faster oil circulation. 5W-30 is specified for cold
climate operation.
Q10: A technician measures 15 psi oil pressure at 2000 RPM on a warm engine. Specification calls for 30-
45 psi. What should be checked first?
A. Oil viscosity and level
B. Oil pump replacement
C. Bearing clearances
D. Oil pressure relief valve
A. Oil viscosity and level. [CORRECT]
