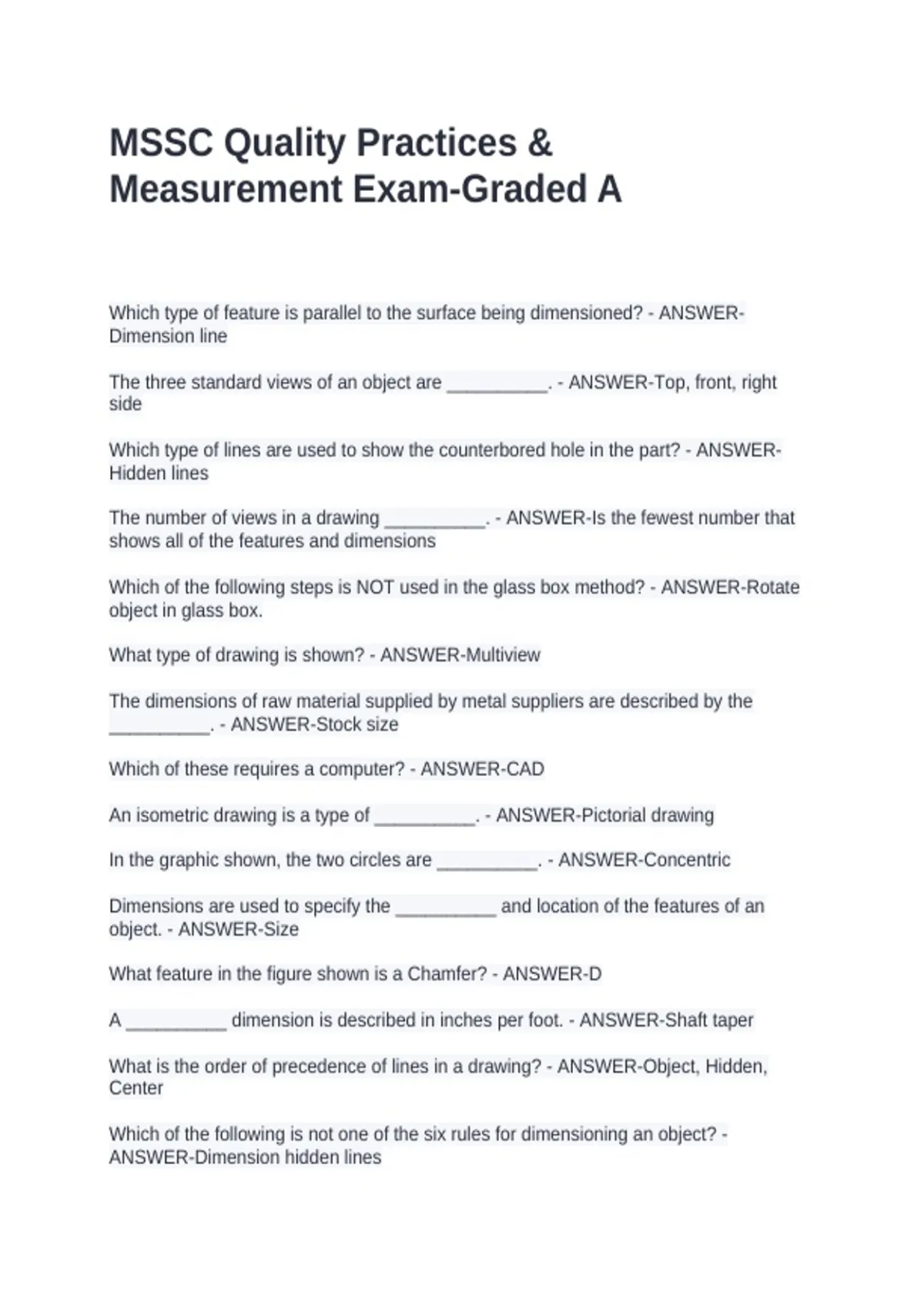

MSSC Quality Practices &
Measurement Exam-Graded A
Which type of feature is parallel to the surface being dimensioned? - ANSWER-
Dimension line
The three standard views of an object are __________. - ANSWER-Top, front, right
side
Which type of lines are used to show the counterbored hole in the part? - ANSWER-
Hidden lines
The number of views in a drawing __________. - ANSWER-Is the fewest number that
shows all of the features and dimensions
Which of the following steps is NOT used in the glass box method? - ANSWER-Rotate
object in glass box.
What type of drawing is shown? - ANSWER-Multiview
The dimensions of raw material supplied by metal suppliers are described by the
__________. - ANSWER-Stock size
Which of these requires a computer? - ANSWER-CAD
An isometric drawing is a type of __________. - ANSWER-Pictorial drawing
In the graphic shown, the two circles are __________. - ANSWER-Concentric
Dimensions are used to specify the __________ and location of the features of an
object. - ANSWER-Size
What feature in the figure shown is a Chamfer? - ANSWER-D
A __________ dimension is described in inches per foot. - ANSWER-Shaft taper
What is the order of precedence of lines in a drawing? - ANSWER-Object, Hidden,
Center
Which of the following is not one of the six rules for dimensioning an object? -
ANSWER-Dimension hidden lines
,Engineers sometimes use a __________ to measure angles on a drawing. - ANSWER-
Protractor
What dimension is indicated in this graphic? - ANSWER-Height
There are 60 minutes of arc in one __________. - ANSWER-Degree
In manufacturing, a blueprint is also called what? - ANSWER-A technical drawing
The distance across the flats of the hex head shown in the part drawing is __________
inches. - ANSWER-2 ¼
The length of the part shown in the drawing is __________ inches. - ANSWER-9 ¾
Which type best describes the line indicated in the graphic? - ANSWER-Object Line
Which of the following bolts is a grade 2? - ANSWER-A
The hole shown in the graphic is a __________ hole. - ANSWER-Counterbore
What are the two types of assembly drawings? - ANSWER-Exploded and basic
A sectional view __________. - ANSWER-All of the above
Which of the following is not used to specify a threaded fastener? - ANSWER-Minor
diameter
Two types of threads are __________. - ANSWER-Internal and external
In the assembly drawing shown, part 3 screws into part __________. - ANSWER-4
The material that will be used to create the gear is indicated in the part drawing's title
block to be __________. - ANSWER-Cast iron
In a threaded fastener assembly what is designed to protect the threads? - ANSWER-
Shank
Manufacturing workers can use a calibrated torque wrench to __________. - ANSWER-
Measure the proper amount of torque
The part of a drawing that indicates that the drawing has the most up to date information
on it is __________. - ANSWER-Drawing revision level
What type hole is shown in the figure? - ANSWER-Counterbored
, The minor diameter of a screw thread is measured at the __________. - ANSWER-Root
of screw thread
Section lines in a sectional view are __________. - ANSWER-All of the above
To establish on a drawing that 1/4 inch equals 1 inch, the designer would write
__________. - ANSWER-1/4=1
Metals treated by __________ processes become soft. - ANSWER-Annealing
Where would you look in a title block to see if there has been changes? - ANSWER-
Revision number
Section lines on a blueprint indicate __________. - ANSWER-A surface that has been
cut
A screw with fine thread is represented on a drawing with what designation? -
ANSWER-UNF
What is the depth of the countersink in the image? - ANSWER-0.12 inches
What is placed at the arrowheads of the cutting plane line to identify the cutting plane
with the proper sectional view? - ANSWER-Capital letter
Assembly drawings rely on reference letters or numbers to __________. - ANSWER-
Identify the individual parts
If a feature on a drawing is drawn 3 inches long and the scale is 1:4, what is the actual
dimension on the object? - ANSWER-12"
The specifications for the length of produced parts is 5.146 inches with a tolerance of ±
0.005. Is a part that has been produced at 5.140 inches out of spec? - ANSWER-Yes, it
is out of spec
Which dimension on a production drawing has the most accuracy? - ANSWER-The one
with the most "tolerance" decimal places
A datum feature symbol can be connected to __________. - ANSWER-Any of the
above
The graphic shown is an example of __________ dimensioning. - ANSWER-Baseline
If 4 percent of 1200 production pieces are out of spec, how many are out of spec? -
ANSWER-48
