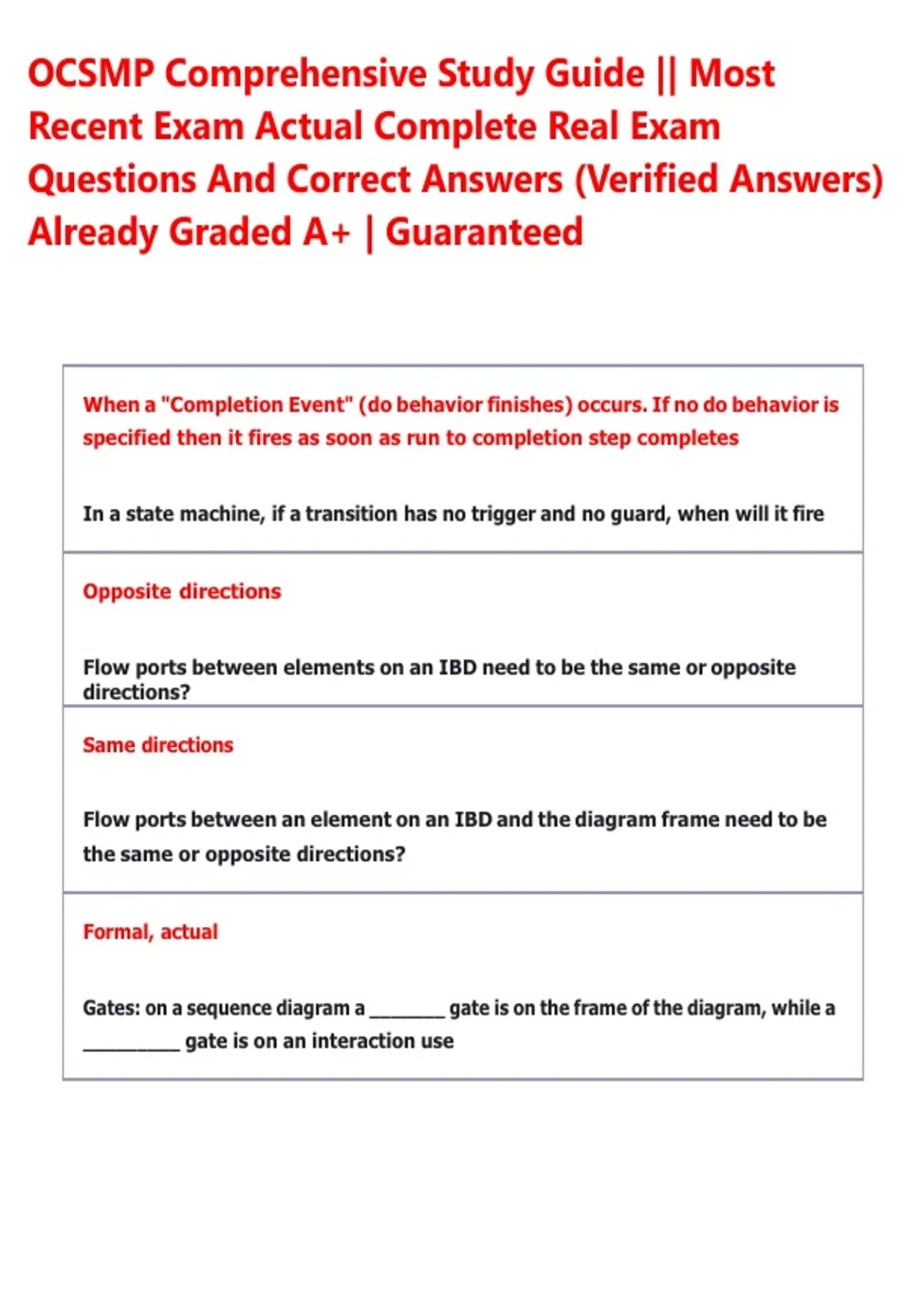

OCSMP Comprehensive Study Guide || Most
Recent Exam Actual Complete Real Exam
Questions And Correct Answers (Verified Answers)
Already Graded A+ | Guaranteed
When a "Completion Event" (do behavior finishes) occurs. If no do behavior is
specified then it fires as soon as run to completion step completes
In a state machine, if a transition has no trigger and no guard, when will it fire
Opposite directions
Flow ports between elements on an IBD need to be the same or opposite
directions?
Same directions
Flow ports between an element on an IBD and the diagram frame need to be
the same or opposite directions?
Formal, actual
Gates: on a sequence diagram a _______ gate is on the frame of the diagram, while a
_________ gate is on an interaction use
,constraint parameter, Transfer Time of Flight Constraint block
What type of element is ttof in the photo? What is it typed by?
Constraint parameter. Syntax given as <parameterName>: <type>
[<multiplicity>]
What type of element is timeOfFlight?
Constraint parameter, represents an equality relationship between the
elements at both ends
A binding connector is required to be attached to at least one of what
element, and what does it represent
Value properties are solid line rectangles, constraint properties are solid line
rounded
rectangles
How do you tell the difference between a value property and a constraint
property on a parametric diagram?
,memoryCapacity is a constraint parameter, and the Sufficient Memory
constraint block is its namespace.
What kind of model element is memoryCapacity, and which model element is its
namespace?
Model Hierarchy
A package diagram displays system hierarchy or model hierarchy?
System Hierarchy
A BDD displays system hierarchy or model hierarchy?
Domain, crosshair notation
What is the Structure packages namespace
, Structure, nesting notation
What is the AOCS packages namespace, and what notation is being used?
Domain, qualified name string notation
What is the Actors packages namespace, and what notation is being used?
A change in the supplier element (at the arrowhead end) may result in a
change to the client element (at the tail end).
What does a dependency represent?
Icon has either <<model>> preceding the package name, or a small triangle in
the upper right hand corner. a "model" serves as the root of a containment
hierarchy
What is the difference between a basic package and a "model" package, and
what's its purpose?
