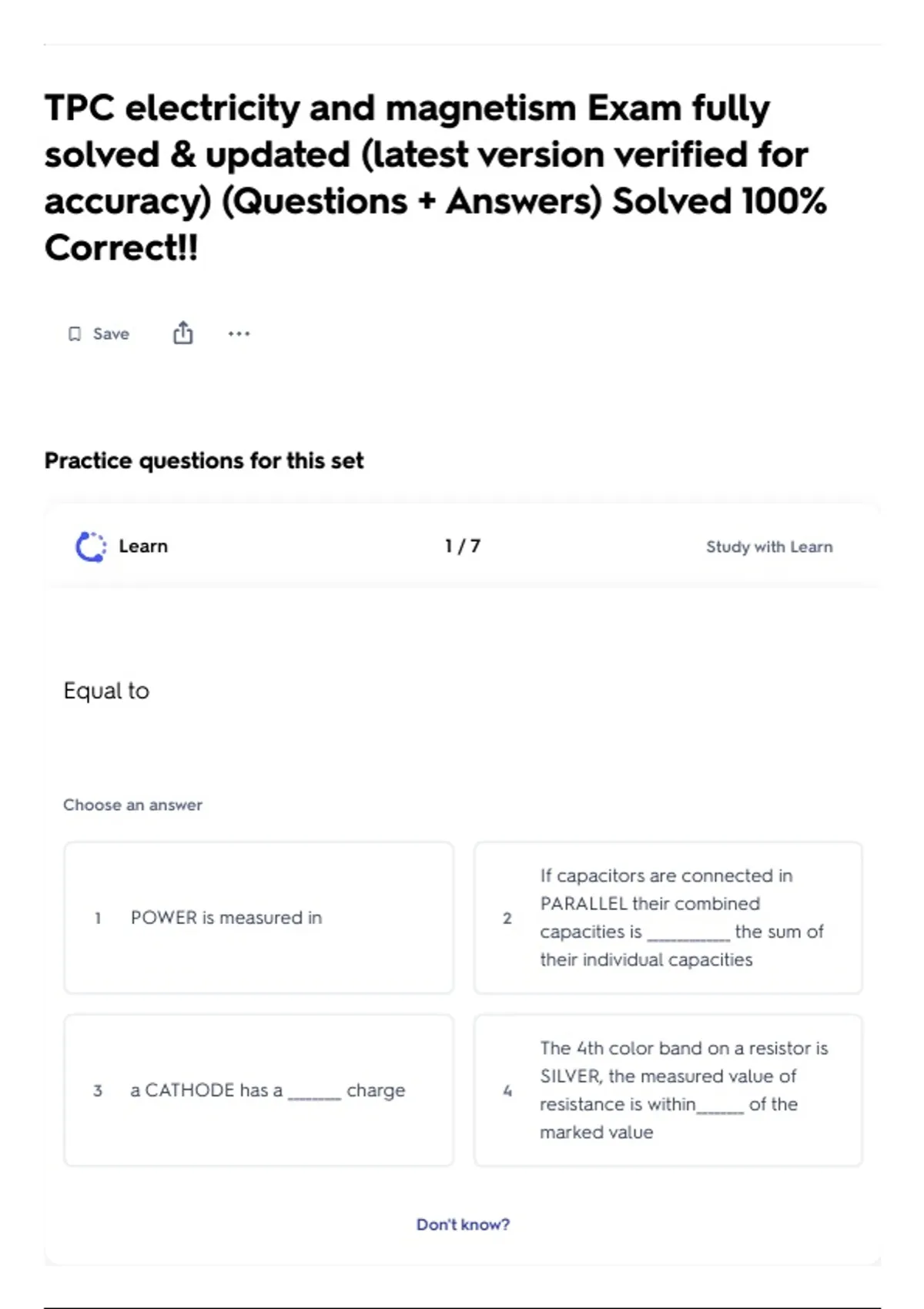

TPC electricity and magnetism Exam fully
solved & updated (latest version verified for
accuracy) (Questions + Answers) Solved 100%
Correct!!
Save
Practice questions for this set
Learn 1 /7 Study with Learn
Equal to
Choose an answer
If capacitors are connected in
PARALLEL their combined
1 POWER is measured in 2
capacities is ______________ the sum of
their individual capacities
The 4th color band on a resistor is
SILVER, the measured value of
3 a CATHODE has a _________ charge 4
resistance is within________ of the
marked value
Don't know?
, Terms in this set (59)
If capacitors are connected in Equal to
PARALLEL their combined
capacities is ______________ the sum of
their individual capacities
POWER is measured in Watts
The COMBINED resistance of two 50 ohms
100 ohms resistors connected in a
parallel would equal
Ohms law can be E=I(R)
MATHEMATICALLY expressed in
which equation
JIC symbol (rectangular figure) Rheostat
represents
The 4th color band on a resistor is 10%
SILVER, the measured value of
resistance is within________ of the
marked value
The CENTER section of a transistor Base
is called the
An optoisolator recites a LOW Higher
voltage signal on LED side of the
device and triggers a ________ voltage
on the out-put
If a GAP exists in an electric Open
current, the circuit is said to be_______
