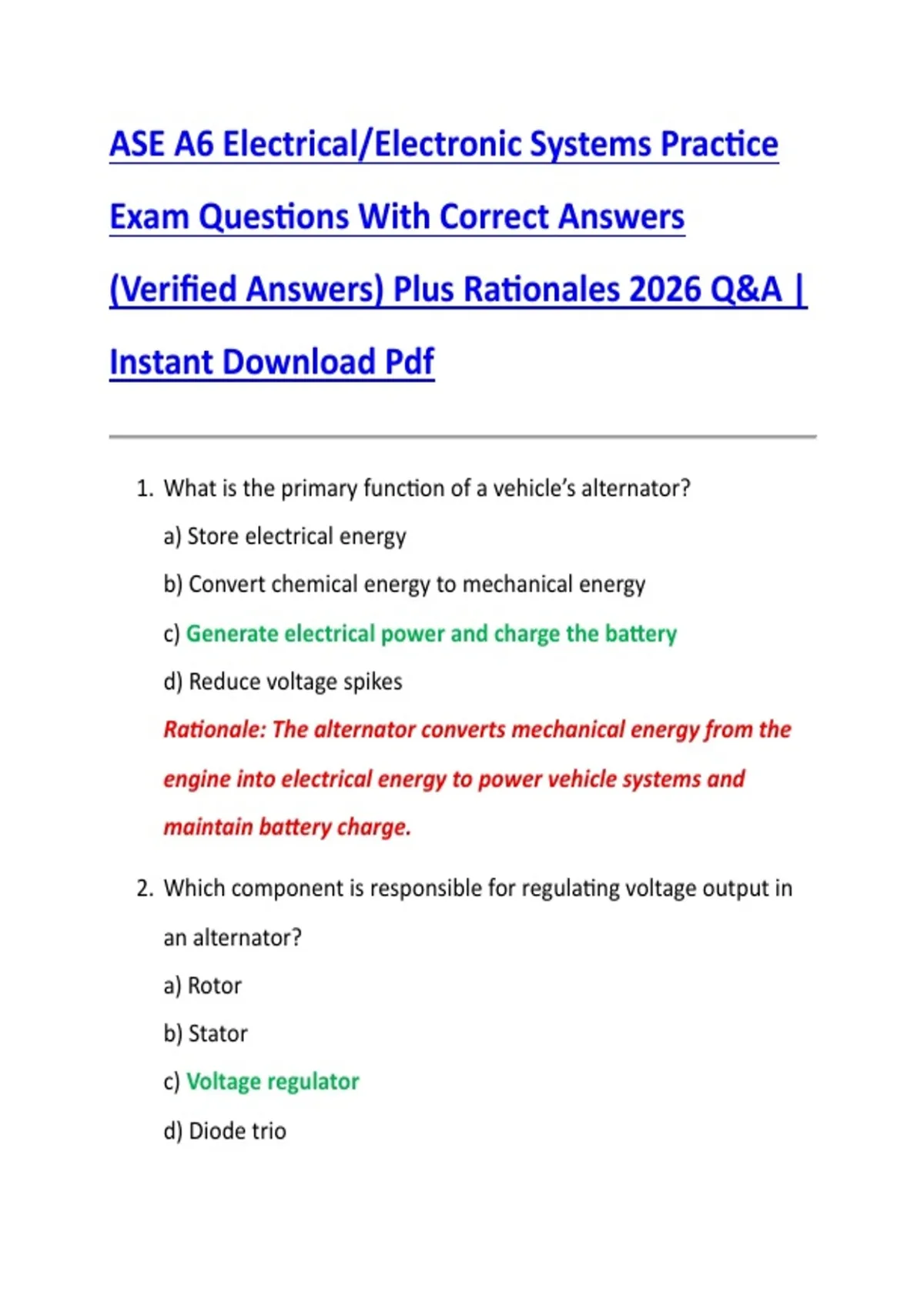

ASE A6 Electrical/Electronic Systems Practice
Exam Questions With Correct Answers
(Verified Answers) Plus Rationales 2026 Q&A |
Instant Download Pdf
1. What is the primary function of a vehicle’s alternator?
a) Store electrical energy
b) Convert chemical energy to mechanical energy
c) Generate electrical power and charge the battery
d) Reduce voltage spikes
Rationale: The alternator converts mechanical energy from the
engine into electrical energy to power vehicle systems and
maintain battery charge.
2. Which component is responsible for regulating voltage output in
an alternator?
a) Rotor
b) Stator
c) Voltage regulator
d) Diode trio
, Rationale: The voltage regulator maintains consistent voltage to
protect electrical components and ensure proper battery
charging.
3. A technician measures 14.5 volts at the battery terminals with the
engine running. What does this indicate?
a) Undercharging
b) Overheating
c) Normal charging condition
d) Dead battery
Rationale: Typical alternator output ranges from 13.8 to 14.8
volts; 14.5 volts indicates the system is charging properly.
4. What is the primary purpose of diodes in an alternator?
a) Increase voltage
b) Convert AC to DC
c) Control engine speed
d) Store electrical energy
Rationale: Alternators produce AC current; diodes act as a
rectifier to convert AC to DC for vehicle use.
5. Which wire color is typically used for ground connections in
automotive electrical systems?
a) Red
, b) Black
c) Yellow
d) Green
Rationale: Standard practice uses black wires for chassis or
negative battery ground connections.
6. Which tool is used to check continuity in an electrical circuit?
a) Oscilloscope
b) Voltmeter
c) Multimeter set to ohms
d) Ammeter
Rationale: Continuity is tested by measuring resistance; a
properly functioning circuit will have near-zero ohms.
7. What does a fusible link protect against?
a) Engine overheating
b) Excessive current flow
c) Fuel leakage
d) Low oil pressure
Rationale: Fusible links act like fuses, melting to interrupt
excessive current and protect wiring and components.
8. Which of the following is a symptom of a failing alternator diode?
a) Battery overcharging
, b) Battery discharging with engine running
c) Blown fuses unrelated to load
d) Slow fuel pump operation
Rationale: A bad diode allows current to drain back through the
alternator, discharging the battery even when the engine is
running.
9. When using a scan tool to diagnose an electrical problem, which
data is most useful?
a) Tire pressure readings
b) Live sensor data and fault codes
c) Engine oil level
d) Brake fluid level
Rationale: Live sensor data and stored fault codes help identify
electrical or electronic system failures.
10. What does a high resistance reading in a ground circuit
indicate?
a) Normal operation
b) Possible corrosion, loose connection, or broken wire
c) Overvoltage
d) Low battery voltage
