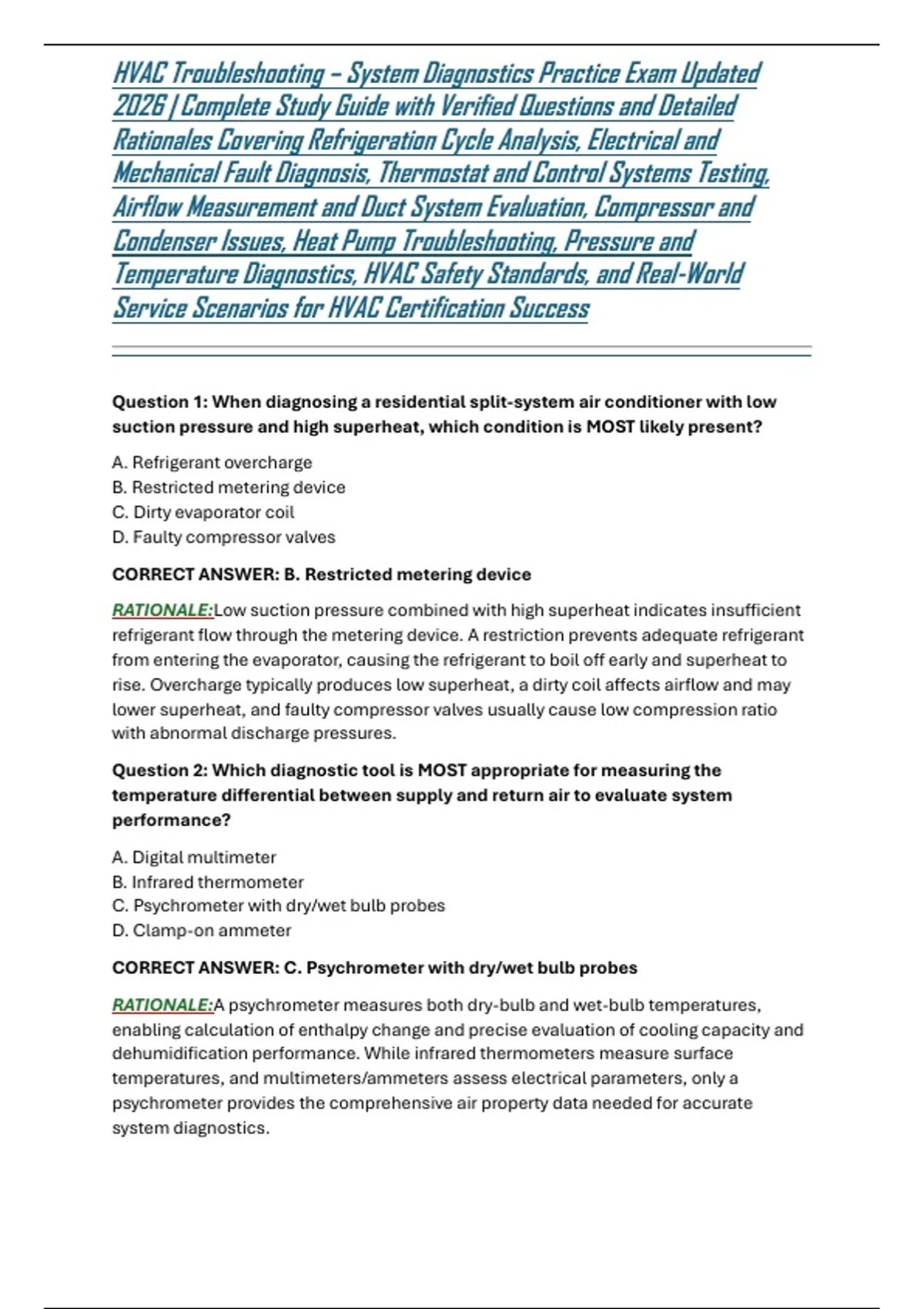

HVAC Troubleshooting – System Diagnostics Practice Exam Updated
2026 | Complete Study Guide with Verified Questions and Detailed
Rationales Covering Refrigeration Cycle Analysis, Electrical and
Mechanical Fault Diagnosis, Thermostat and Control Systems Testing,
Airflow Measurement and Duct System Evaluation, Compressor and
Condenser Issues, Heat Pump Troubleshooting, Pressure and
Temperature Diagnostics, HVAC Safety Standards, and Real-World
Service Scenarios for HVAC Certification Success
Question 1: When diagnosing a residential split-system air conditioner with low
suction pressure and high superheat, which condition is MOST likely present?
A. Refrigerant overcharge
B. Restricted metering device
C. Dirty evaporator coil
D. Faulty compressor valves
CORRECT ANSWER: B. Restricted metering device
RATIONALE:Low suction pressure combined with high superheat indicates insufficient
refrigerant flow through the metering device. A restriction prevents adequate refrigerant
from entering the evaporator, causing the refrigerant to boil off early and superheat to
rise. Overcharge typically produces low superheat, a dirty coil affects airflow and may
lower superheat, and faulty compressor valves usually cause low compression ratio
with abnormal discharge pressures.
Question 2: Which diagnostic tool is MOST appropriate for measuring the
temperature differential between supply and return air to evaluate system
performance?
A. Digital multimeter
B. Infrared thermometer
C. Psychrometer with dry/wet bulb probes
D. Clamp-on ammeter
CORRECT ANSWER: C. Psychrometer with dry/wet bulb probes
RATIONALE:A psychrometer measures both dry-bulb and wet-bulb temperatures,
enabling calculation of enthalpy change and precise evaluation of cooling capacity and
dehumidification performance. While infrared thermometers measure surface
temperatures, and multimeters/ammeters assess electrical parameters, only a
psychrometer provides the comprehensive air property data needed for accurate
system diagnostics.
,Question 3: During troubleshooting, a technician observes that the compressor is
drawing significantly higher amperage than rated load amps (RLA). Which condition
should be investigated FIRST?
A. Low refrigerant charge
B. High head pressure due to condenser restriction
C. Faulty run capacitor
D. Thermostat wiring short
CORRECT ANSWER: B. High head pressure due to condenser restriction
RATIONALE:Elevated head pressure increases compressor work and current draw. A
restricted condenser coil, dirty fins, or failed condenser fan motor reduces heat
rejection, raising discharge pressure and compressor amp draw. Low charge typically
reduces amp draw, a faulty capacitor often prevents starting or causes humming, and
thermostat shorts affect control circuits, not compressor loading.
Question 4: What is the PRIMARY purpose of measuring superheat in a fixed-orifice
(piston) metering device system?
A. To verify compressor oil return
B. To confirm proper refrigerant charge
C. To assess evaporator coil cleanliness
D. To evaluate condenser subcooling
CORRECT ANSWER: B. To confirm proper refrigerant charge
RATIONALE:In fixed-orifice systems, superheat is the primary indicator of refrigerant
charge because the metering device cannot adjust flow. Proper superheat ensures the
evaporator is fully utilized without liquid refrigerant returning to the compressor. Oil
return, coil cleanliness, and subcooling are secondary considerations evaluated
through other diagnostics.
Question 5: A heat pump in heating mode exhibits low discharge pressure and low
suction pressure. Which component failure is MOST consistent with these
symptoms?
A. Reversing valve stuck in cooling position
B. Defrost control board malfunction
C. Outdoor fan motor failure
D. Indoor blower motor capacitor failure
CORRECT ANSWER: A. Reversing valve stuck in cooling position
RATIONALE:If the reversing valve fails to shift to heating mode, the system operates in
cooling while the thermostat calls for heat. This results in low pressures because the
indoor coil (now acting as condenser) cannot reject heat effectively in heating mode
expectations. Defrost issues, fan failures, or blower problems produce different
pressure signatures and operational symptoms.
,Question 6: When using a digital manifold gauge set, which measurement
combination BEST confirms adequate subcooling in an R-410A system?
A. Liquid line pressure and liquid line temperature
B. Suction line pressure and suction line temperature
C. Discharge line pressure and outdoor ambient temperature
D. Evaporator inlet temperature and outlet temperature
CORRECT ANSWER: A. Liquid line pressure and liquid line temperature
RATIONALE:Subcooling is calculated by converting the liquid line pressure to its
saturation temperature (using pressure-temperature charts) and subtracting the actual
liquid line temperature. This confirms refrigerant is fully condensed before the metering
device. Suction measurements determine superheat, while discharge and evaporator
temps serve other diagnostic purposes.
Question 7: Which electrical test is MOST critical when diagnosing a compressor
that hums but fails to start?
A. Continuity test of run and start windings
B. Voltage drop test across contactor contacts
C. Capacitance measurement of start and run capacitors
D. Insulation resistance test to ground
CORRECT ANSWER: C. Capacitance measurement of start and run capacitors
RATIONALE:A humming compressor that won't start often indicates failed start
assistance. Capacitors provide the phase shift needed for motor starting; degraded
capacitance prevents proper torque. While winding continuity, contactor voltage, and
insulation tests are valuable, capacitor failure is the most frequent cause of this
specific symptom in single-phase compressors.
Question 8: In a variable refrigerant flow (VRF) system, what does an "EEV fault"
code typically indicate?
A. Electronic expansion valve communication or positioning error
B. Excessive evaporator pressure
C. External electrical voltage fluctuation
D. Emergency shutdown activation
CORRECT ANSWER: A. Electronic expansion valve communication or positioning
error
RATIONALE:EEV faults in VRF systems relate to the electronic expansion valve's
inability to receive control signals, report position feedback, or achieve commanded
opening. These valves precisely meter refrigerant based on superheat; communication
errors or mechanical binding trigger fault codes. Other options describe unrelated
conditions not abbreviated as "EEV."
, Question 9: When troubleshooting poor cooling performance with normal
pressures but low airflow, which diagnostic step should be performed FIRST?
A. Check refrigerant charge via subcooling method
B. Inspect and measure static pressure across evaporator coil
C. Test compressor valve efficiency
D. Verify thermostat calibration
CORRECT ANSWER: B. Inspect and measure static pressure across evaporator coil
RATIONALE:Low airflow with normal pressures suggests an airside issue. Measuring
external static pressure identifies restrictions like dirty filters, blocked coils, or
undersized ducts. Refrigerant charge and compressor tests are premature when airflow
is unverified, and thermostat calibration affects cycling, not airflow volume.
Question 10: Which symptom BEST indicates a refrigerant restriction in the liquid
line?
A. High subcooling before restriction, low subcooling after
B. Low superheat at evaporator outlet
C. Elevated suction pressure with low discharge pressure
D. Frost formation on compressor suction line
CORRECT ANSWER: A. High subcooling before restriction, low subcooling after
RATIONALE:A liquid line restriction causes refrigerant to back up, increasing subcooling
upstream while starving the metering device downstream. This pressure drop creates
flash gas before the metering device, reducing effective subcooling at the valve inlet.
Other options describe symptoms of overcharge, flooding, or low charge conditions.
Question 11: What is the CORRECT procedure for verifying proper operation of a
low-pressure control switch?
A. Measure switch continuity while manually actuating the sensing element
B. Monitor system pressures while bypassing the switch temporarily
C. Replace the switch if system pressure fluctuates near cut-in point
D. Adjust the differential setting until compressor cycles rapidly
CORRECT ANSWER: A. Measure switch continuity while manually actuating the
sensing element
RATIONALE:Testing a pressure control requires verifying electrical continuity changes
at specified pressure points. Manually applying pressure to the sensing element while
checking continuity confirms mechanical and electrical function. Bypassing controls is
unsafe, replacement without testing is wasteful, and rapid cycling indicates improper
adjustment, not verification.
Question 12: During a vacuum dehydration process, a technician observes the
micron gauge reading rising after the pump is isolated. What does this indicate?
