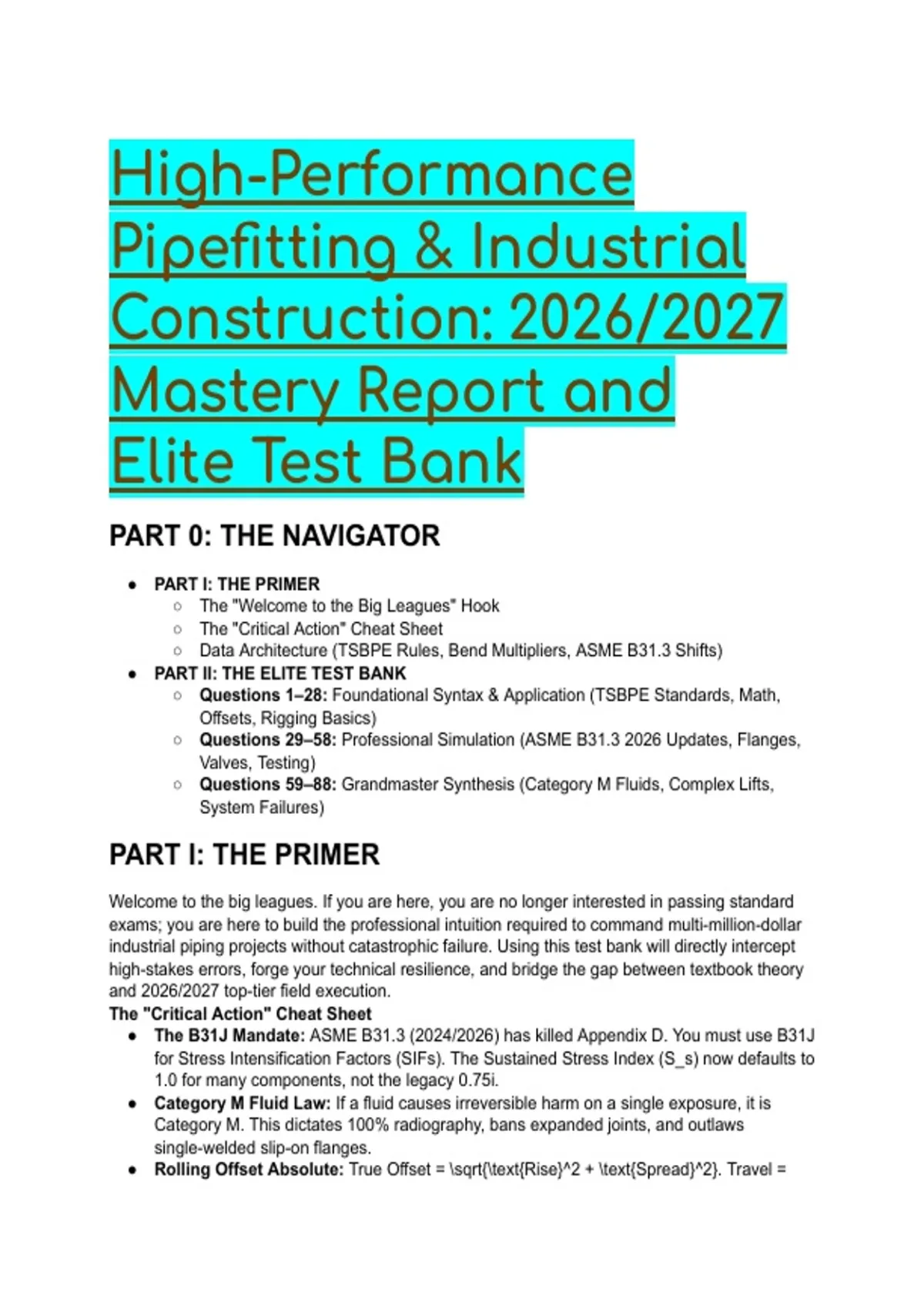

High-Performance
Pipefitting & Industrial
Construction: 2026/2027
Mastery Report and
Elite Test Bank
PART 0: THE NAVIGATOR
● PART I: THE PRIMER
○ The "Welcome to the Big Leagues" Hook
○ The "Critical Action" Cheat Sheet
○ Data Architecture (TSBPE Rules, Bend Multipliers, ASME B31.3 Shifts)
● PART II: THE ELITE TEST BANK
○ Questions 1–28: Foundational Syntax & Application (TSBPE Standards, Math,
Offsets, Rigging Basics)
○ Questions 29–58: Professional Simulation (ASME B31.3 2026 Updates, Flanges,
Valves, Testing)
○ Questions 59–88: Grandmaster Synthesis (Category M Fluids, Complex Lifts,
System Failures)
PART I: THE PRIMER
Welcome to the big leagues. If you are here, you are no longer interested in passing standard
exams; you are here to build the professional intuition required to command multi-million-dollar
industrial piping projects without catastrophic failure. Using this test bank will directly intercept
high-stakes errors, forge your technical resilience, and bridge the gap between textbook theory
and 2026/2027 top-tier field execution.
The "Critical Action" Cheat Sheet
● The B31J Mandate: ASME B31.3 (2024/2026) has killed Appendix D. You must use B31J
for Stress Intensification Factors (SIFs). The Sustained Stress Index (S_s) now defaults to
1.0 for many components, not the legacy 0.75i.
● Category M Fluid Law: If a fluid causes irreversible harm on a single exposure, it is
Category M. This dictates 100% radiography, bans expanded joints, and outlaws
single-welded slip-on flanges.
● Rolling Offset Absolute: True Offset = \sqrt{\text{Rise}^2 + \text{Spread}^2}. Travel =
, True Offset × Multiplier.
● Rigging CoG Protocol: Center of Gravity = \frac{\sum (\text{Weight} \times
\text{Distance})}{\text{Total Weight}}. Never lift an asymmetrical spool without proving this
math first.
Data Architecture
License Level 2026 TSBPE Requirement Scope of Practice
Tradesman Limited 4,000 hrs + 24 hrs classroom One- and two-family dwellings.
Journeyman 8,000 hrs + 48 hrs classroom Residential and commercial.
Master Plumber Journeyman + 4,000 hrs Full project management,
supervisory business operation.
Bend Angle Multiplier Shrinkage per Inch of Rise
10° 6.0 1/16"
22.5° 2.6 3/16"
30° 2.0 1/4"
45° 1.414 3/8"
60° 1.154 1/2"
Code Feature Pre-2024 Legacy Approach 2024/2026 B31.3 Protocol
Fatigue Slope -0.2 (Matched B31.1) -0.333 (More aggressive for
high-cycle).
Flange Bolt-up Stress Strictly capped at allowables Code explicitly recognizes initial
stresses can exceed
allowables.
A105 Flange Usage Used freely to -20°F Note 65 restricts usage below
-20°F without impact testing.
Subassembly Testing Often required full system Para 345.2.3 explicitly exempts
re-test pre-tested spools from
re-hydrotesting.
PART II: THE ELITE TEST BANK
Q1: An apprentice logs 4,500 hours of documented work under a Master Plumber in Texas.
They apply for the 2026 TSBPE Journeyman examination. What is the IMMEDIATE
administrative result? A) Approved to sit for the examination pending a background check. B)
Denied, as they strictly require 8,000 hours of documented experience. C) Approved only if they
hold a Medical Gas Endorsement. D) Denied due to a lack of the 24-hour training course.
● The Answer: B (Denied, as they strictly require 8,000 hours of documented experience.)
● Distractor Analysis: A is incorrect: Fails the baseline hour requirement. C is incorrect:
Endorsements do not bypass core hour requirements. D is incorrect: 24 hours is for
Tradesman; Journeyman requires 48 hours and 8,000 field hours.
The Mentor's Analysis: Time in the trench cannot be shortcut. The TSBPE strictly enforces the
8,000-hour milestone for Journeyman status to ensure candidates have weathered enough
operational cycles to develop safe, independent technical judgment.
Q2: You must fabricate a 30-degree offset to clear an obstruction. The vertical rise is 4 inches.
, What is the REQUIRED travel length (distance between bends) you must mark on the
conduit/pipe? A) 4 inches B) 5.6 inches C) 8 inches D) 10.4 inches
● The Answer: C (8 inches)
● Distractor Analysis: A is incorrect: Fails to account for the hypotenuse. B is incorrect:
Uses the 45° multiplier (1.414). D is incorrect: Uses the 22.5° multiplier (2.6).
The Mentor's Analysis: Travel = Offset × Multiplier. For a 30-degree bend, the exact secant
multiplier is 2.0. Memorize your constants: 45° is 1.414, 30° is 2.0, 22.5° is 2.6.
Q3: When calculating a rolling offset, the horizontal spread is 3 feet and the vertical rise is 4
feet. Before applying your fitting multiplier, you must FIRST determine the true offset. What is
the true offset? A) 5 feet B) 7 feet C) 12 feet D) 25 feet
● The Answer: A (5 feet)
● Distractor Analysis: B is incorrect: Simply adds the two legs. C is incorrect: Multiplies
the two legs. D is incorrect: Forgets to take the square root of c^2.
The Mentor's Analysis: The true offset is the hypotenuse of the right triangle formed by the rise
and spread. Apply the Pythagorean theorem: \sqrt{3^2 + 4^2} = \sqrt{9 + 16} = \sqrt{25} = 5.
Q4: A Texas licensed Master Plumber wishes to contract directly with the public for
high-performance industrial plumbing services. What ADDITIONAL credential or action is legally
required in 2026? A) A Medical Gas Endorsement. B) The Responsible Master Plumber (RMP)
designation with an approved Certificate of Insurance. C) A 48-hour advanced business
management course. D) Registration as a commercial pipefitter apprentice.
● The Answer: B (The Responsible Master Plumber (RMP) designation with an approved
Certificate of Insurance.)
● Distractor Analysis: A is incorrect: Medical gas limits scope to medical facilities. C is
incorrect: Not a TSBPE requirement for contracting. D is incorrect: A Master cannot
register as an apprentice.
The Mentor's Analysis: A Master license proves technical competence; an RMP designation
proves commercial accountability. You cannot bid on public projects without the insurance and
RMP status backing your entity.
Q5: You are bending EMT for an instrumentation run. The chart indicates a shrinkage of 1/4
inch per inch of rise for a 30-degree bend. For a 6-inch offset, what is the TOTAL shrinkage you
must account for in your cut length? A) 0.5 inches B) 1.0 inches C) 1.5 inches D) 2.0 inches
● The Answer: C (1.5 inches)
● Distractor Analysis: A is incorrect: Uses 1/16" shrinkage (10° bend). B is incorrect:
Miscalculates the ratio. D is incorrect: Uses an arbitrary higher value.
The Mentor's Analysis: The pipe path takes a shortcut, but the metal does not stretch infinitely.
Shrinkage = Offset × Shrinkage Rate. 6 \times 0.25 = 1.5 inches. Cut your pipe 1.5 inches
longer than the total straight-line measurement.
Q6: When selecting a flange for a high-pressure, severe vibration process line, which flange
type is the MOST APPROPRIATE choice to avoid excessive stress concentration? A) Slip-on
flange B) Threaded flange C) Weld-neck flange D) Lapped joint flange
● The Answer: C (Weld-neck flange)
● Distractor Analysis: A is incorrect: Slip-on flanges create high stress points at the fillet
welds. B is incorrect: Threads act as stress risers, fatal in vibration. D is incorrect: Lapped
joints are for easy alignment, not severe vibration.
The Mentor's Analysis: The long tapered hub of a weld-neck flange smoothly transfers stress
from the flange to the pipe wall, mitigating the stress concentrations that cause fatigue failures
in high-vibration environments.
Q7: Under the ASME B31.3-2024/2026 revisions, a piping engineer is assessing fatigue
