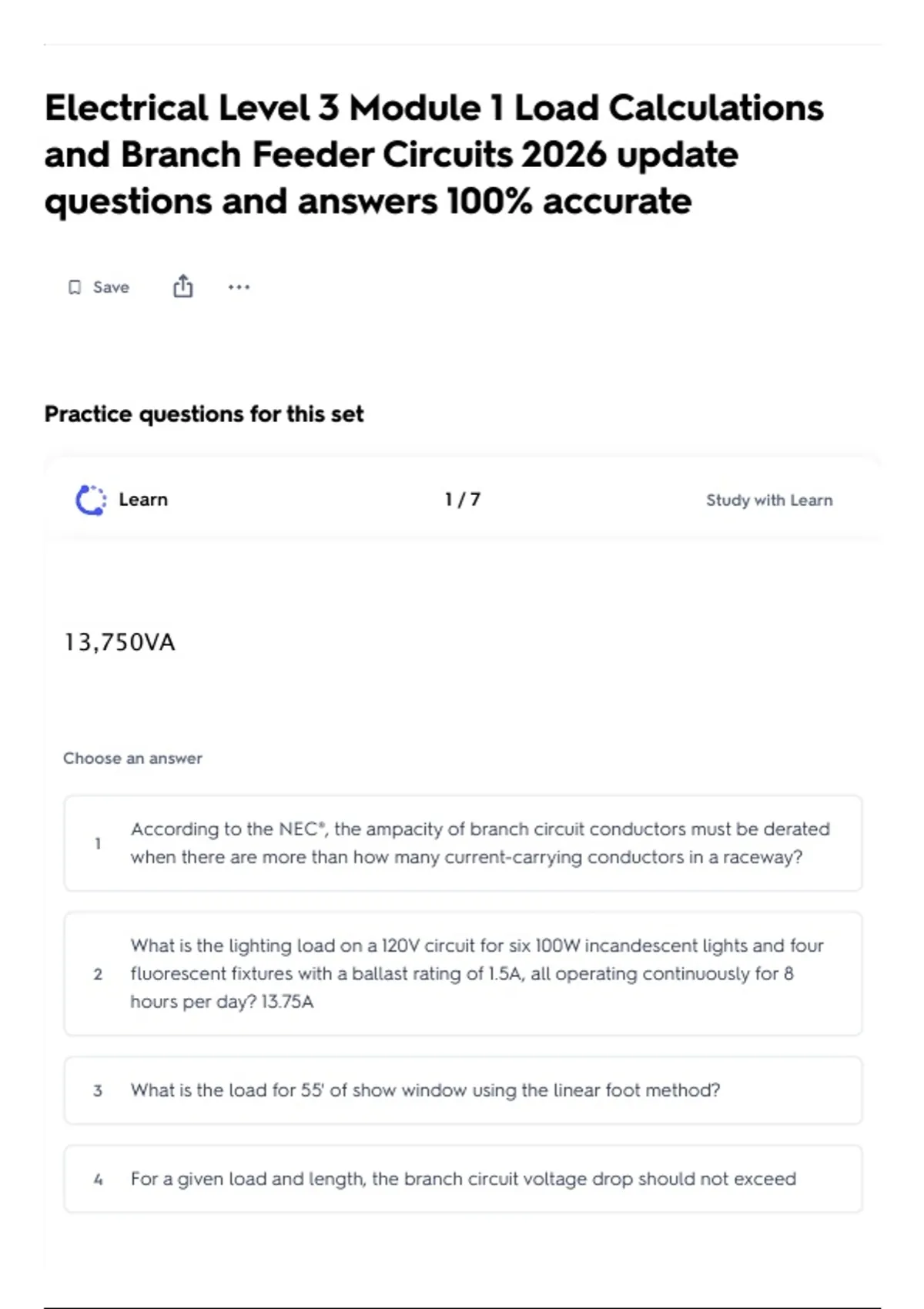

Electrical Level 3 Module 1 Load Calculations
and Branch Feeder Circuits 2026 update
questions and answers 100% accurate
Save
Practice questions for this set
Learn 1 /7 Study with Learn
13,750VA
Choose an answer
According to the NEC®, the ampacity of branch circuit conductors must be derated
1
when there are more than how many current-carrying conductors in a raceway?
What is the lighting load on a 120V circuit for six 100W incandescent lights and four
2 fluorescent fixtures with a ballast rating of 1.5A, all operating continuously for 8
hours per day? 13.75A
3 What is the load for 55' of show window using the linear foot method?
4 For a given load and length, the branch circuit voltage drop should not exceed
, Don't know?
Terms in this set (25)
According to the NEC®, the 3
ampacity of branch circuit
conductors must be derated when
there are more than how many
current-carrying conductors in a
raceway?
Air conditioning overcurrent 225%
protective devices can never
exceed what percentage of the
motor-rated load current or the
branch circuit selection current
(whichever is greater)?
Conductors must be derated when on or above rooftops
installed in conduit
Continuous loads are calculated at 80%
what percentage of the maximum
current rating of the overcurrent
device?
For a given load and length, the 3%
branch circuit voltage drop should
not exceed
For resistance welders, the rating 300%
for the overcurrent protection
device should not exceed what
percentage of the primary current
rating of the welder?
