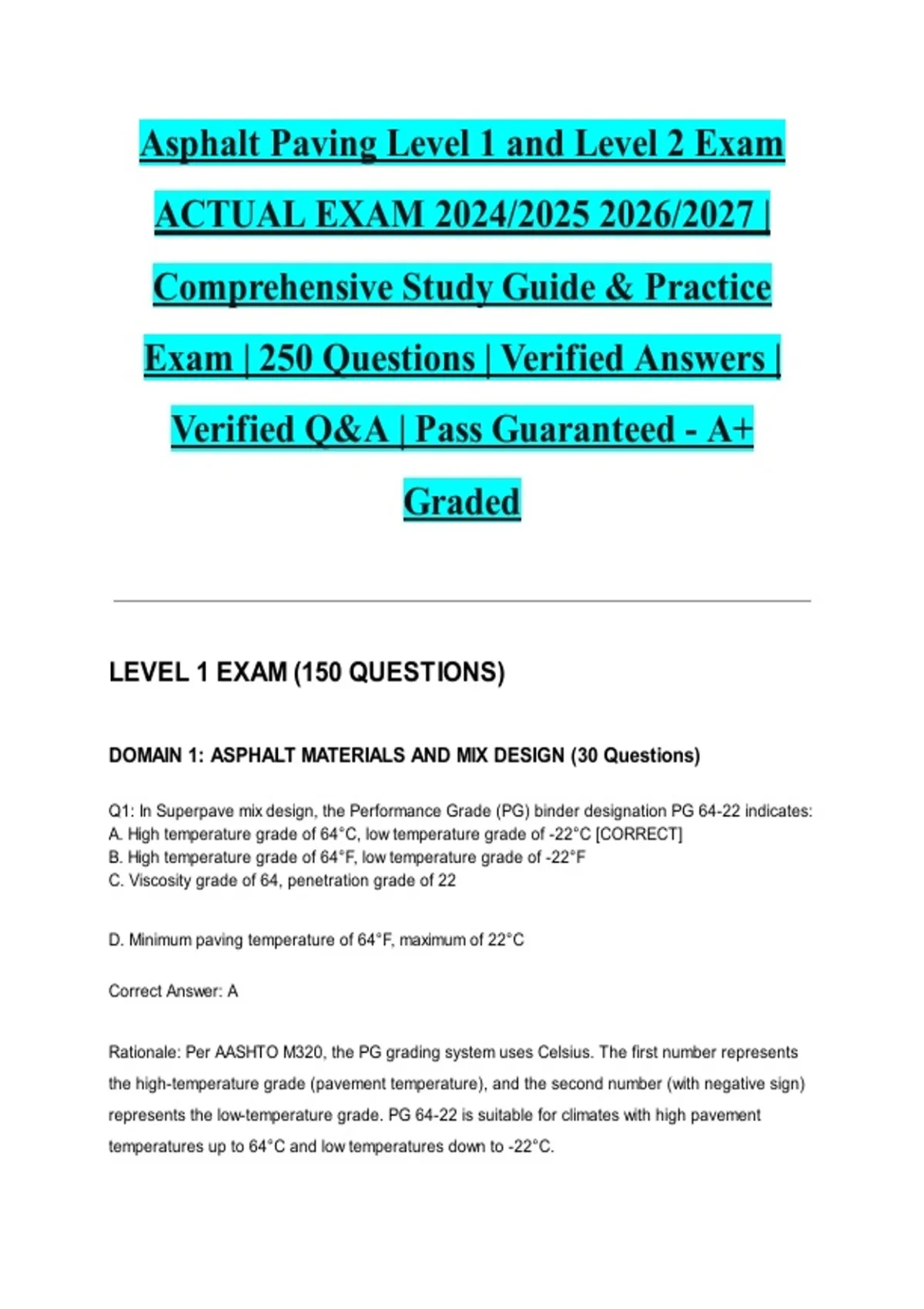

Asphalt Paving Level 1 and Level 2 Exam
ACTUAL EXAM 2024/2025 2026/2027 |
Comprehensive Study Guide & Practice
Exam | 250 Questions | Verified Answers |
Verified Q&A | Pass Guaranteed - A+
Graded
LEVEL 1 EXAM (150 QUESTIONS)
DOMAIN 1: ASPHALT MATERIALS AND MIX DESIGN (30 Questions)
Q1: In Superpave mix design, the Performance Grade (PG) binder designation PG 64-22 indicates:
A. High temperature grade of 64°C, low temperature grade of -22°C [CORRECT]
B. High temperature grade of 64°F, low temperature grade of -22°F
C. Viscosity grade of 64, penetration grade of 22
D. Minimum paving temperature of 64°F, maximum of 22°C
Correct Answer: A
Rationale: Per AASHTO M320, the PG grading system uses Celsius. The first number represents
the high-temperature grade (pavement temperature), and the second number (with negative sign)
represents the low-temperature grade. PG 64-22 is suitable for climates with high pavement
temperatures up to 64°C and low temperatures down to -22°C.
,Paving Note: Always verify pavement temperature, not air temperature, when determining binder
grade requirements.
Q2: What is the primary purpose of the Los Angeles (L.A.) abrasion test for aggregates?
A. Measure aggregate specific gravity and absorption
B. Determine aggregate resistance to crushing, wear, and degradation [CORRECT]
C. Evaluate aggregate angularity and texture
D. Test for clay lumps and friable particles
Correct Answer: B
Rationale: ASTM C131 (L.A. Abrasion) measures aggregate toughness and abrasion resistance by
rotating aggregate samples with steel balls in a drum. The percentage of material passing the No.
12 sieve after testing indicates degradation susceptibility. Lower values indicate better toughness.
Q3: In Superpave volumetric mix design, what does VMA stand for and represent?
A. Voids in Mineral Aggregate – the volume of intergranular void space between aggregate
particles [CORRECT]
B. Voids Measured in Asphalt – the volume of air in the binder
C. Volume of Mixture Absorption – the water absorbed by aggregates
D. Viscosity of Modified Asphalt – the binder consistency rating
Correct Answer: A
Rationale: VMA (Voids in Mineral Aggregate) represents the void space between aggregate
particles, including both air voids and effective asphalt binder volume. AASHTO M323 specifies
minimum VMA requirements based on nominal maximum aggregate size (NMAS). Inadequate VMA
leads to durability issues.
Q4: What is the typical target air void (Va) content for a dense-graded Superpave mix at Ndesign
gyrations?
A. 1.0% to 2.0%
,B. 2.5% to 3.5%
C. 4.0% [CORRECT]
D. 8.0% to 10.0%
Correct Answer: C
Rationale: AASHTO R35 and M323 specify 4.0% design air voids at Ndesign gyrations for
dense-graded mixes. This provides a balance between stability (resistance to rutting) and durability
(resistance to aging and moisture damage). Construction tolerance typically allows 3.0% to 5.0%.
Q5: Which aggregate property is measured using the Flat and Elongated Particles test?
A. Surface texture and roughness
B. Particle shape characteristics affecting interlock and compaction [CORRECT]
C. Specific gravity and density
D. Chemical composition and reactivity
Correct Answer: B
Rationale: ASTM D4791 measures the percentage of flat (width/thickness >5) and elongated
(length/width >5) particles. Excessive flat/elongated particles break during construction, reduce
interlock, and create weak spots. Superpave limits these to <10% for coarse aggregates.
Q6: What does the term "dust-to-binder ratio" (D/B ratio) refer to in mix design?
A. The ratio of mineral filler to asphalt cement by weight
B. The percentage of material passing No. 200 sieve to effective binder content (P0.075/Pbe)
[CORRECT]**
C. The ratio of RAP dust to virgin binder
D. The comparison of aggregate dust to hydrated lime
Correct Answer: B
, Rationale: Per AASHTO M323, the dust-to-binder ratio is calculated as percent passing No. 200
sieve divided by effective asphalt binder content (Pbe). The acceptable range is 0.6 to 1.2. Too
much dust stiffens the mix; too little leads to binder draindown.
Q7: What is the purpose of the Sand Equivalent (SE) test?
A. Measure the sand content in fine aggregate
B. Determine the presence of clay-like fines in aggregate [CORRECT]
C. Test for organic impurities in sand
D. Evaluate fine aggregate angularity
Correct Answer: B
Rationale: AASHTO T176 (Sand Equivalent) measures the relative proportion of clay-like or plastic
fines and dust in fine aggregates. Clay coatings prevent binder adhesion. Higher SE values
(typically minimum 45-50) indicate cleaner aggregate with less harmful plastic material.
Q8: Which test determines the maximum theoretical specific gravity (Gmm) of a loose asphalt
mixture?
A. Marshall stability test
B. Rice Test (ASTM D2041/AASHTO T209) [CORRECT]**
C. Hveem stabilometer test
D. Hamburg wheel tracking test
Correct Answer: B
Rationale: The Rice Test (ASTM D2041) determines Gmm by measuring the specific gravity of a
loose, uncompacted mix sample using a vacuum saturation method. This value is essential for
calculating percent compaction in the field: (Gmb/Gmm) × 100.
Q9: What is the primary benefit of using Warm Mix Asphalt (WMA) technology?
A. Increased structural capacity of the pavement
B. Reduced production temperatures (20-40°C lower) and associated emissions [CORRECT]**
ACTUAL EXAM 2024/2025 2026/2027 |
Comprehensive Study Guide & Practice
Exam | 250 Questions | Verified Answers |
Verified Q&A | Pass Guaranteed - A+
Graded
LEVEL 1 EXAM (150 QUESTIONS)
DOMAIN 1: ASPHALT MATERIALS AND MIX DESIGN (30 Questions)
Q1: In Superpave mix design, the Performance Grade (PG) binder designation PG 64-22 indicates:
A. High temperature grade of 64°C, low temperature grade of -22°C [CORRECT]
B. High temperature grade of 64°F, low temperature grade of -22°F
C. Viscosity grade of 64, penetration grade of 22
D. Minimum paving temperature of 64°F, maximum of 22°C
Correct Answer: A
Rationale: Per AASHTO M320, the PG grading system uses Celsius. The first number represents
the high-temperature grade (pavement temperature), and the second number (with negative sign)
represents the low-temperature grade. PG 64-22 is suitable for climates with high pavement
temperatures up to 64°C and low temperatures down to -22°C.
,Paving Note: Always verify pavement temperature, not air temperature, when determining binder
grade requirements.
Q2: What is the primary purpose of the Los Angeles (L.A.) abrasion test for aggregates?
A. Measure aggregate specific gravity and absorption
B. Determine aggregate resistance to crushing, wear, and degradation [CORRECT]
C. Evaluate aggregate angularity and texture
D. Test for clay lumps and friable particles
Correct Answer: B
Rationale: ASTM C131 (L.A. Abrasion) measures aggregate toughness and abrasion resistance by
rotating aggregate samples with steel balls in a drum. The percentage of material passing the No.
12 sieve after testing indicates degradation susceptibility. Lower values indicate better toughness.
Q3: In Superpave volumetric mix design, what does VMA stand for and represent?
A. Voids in Mineral Aggregate – the volume of intergranular void space between aggregate
particles [CORRECT]
B. Voids Measured in Asphalt – the volume of air in the binder
C. Volume of Mixture Absorption – the water absorbed by aggregates
D. Viscosity of Modified Asphalt – the binder consistency rating
Correct Answer: A
Rationale: VMA (Voids in Mineral Aggregate) represents the void space between aggregate
particles, including both air voids and effective asphalt binder volume. AASHTO M323 specifies
minimum VMA requirements based on nominal maximum aggregate size (NMAS). Inadequate VMA
leads to durability issues.
Q4: What is the typical target air void (Va) content for a dense-graded Superpave mix at Ndesign
gyrations?
A. 1.0% to 2.0%
,B. 2.5% to 3.5%
C. 4.0% [CORRECT]
D. 8.0% to 10.0%
Correct Answer: C
Rationale: AASHTO R35 and M323 specify 4.0% design air voids at Ndesign gyrations for
dense-graded mixes. This provides a balance between stability (resistance to rutting) and durability
(resistance to aging and moisture damage). Construction tolerance typically allows 3.0% to 5.0%.
Q5: Which aggregate property is measured using the Flat and Elongated Particles test?
A. Surface texture and roughness
B. Particle shape characteristics affecting interlock and compaction [CORRECT]
C. Specific gravity and density
D. Chemical composition and reactivity
Correct Answer: B
Rationale: ASTM D4791 measures the percentage of flat (width/thickness >5) and elongated
(length/width >5) particles. Excessive flat/elongated particles break during construction, reduce
interlock, and create weak spots. Superpave limits these to <10% for coarse aggregates.
Q6: What does the term "dust-to-binder ratio" (D/B ratio) refer to in mix design?
A. The ratio of mineral filler to asphalt cement by weight
B. The percentage of material passing No. 200 sieve to effective binder content (P0.075/Pbe)
[CORRECT]**
C. The ratio of RAP dust to virgin binder
D. The comparison of aggregate dust to hydrated lime
Correct Answer: B
, Rationale: Per AASHTO M323, the dust-to-binder ratio is calculated as percent passing No. 200
sieve divided by effective asphalt binder content (Pbe). The acceptable range is 0.6 to 1.2. Too
much dust stiffens the mix; too little leads to binder draindown.
Q7: What is the purpose of the Sand Equivalent (SE) test?
A. Measure the sand content in fine aggregate
B. Determine the presence of clay-like fines in aggregate [CORRECT]
C. Test for organic impurities in sand
D. Evaluate fine aggregate angularity
Correct Answer: B
Rationale: AASHTO T176 (Sand Equivalent) measures the relative proportion of clay-like or plastic
fines and dust in fine aggregates. Clay coatings prevent binder adhesion. Higher SE values
(typically minimum 45-50) indicate cleaner aggregate with less harmful plastic material.
Q8: Which test determines the maximum theoretical specific gravity (Gmm) of a loose asphalt
mixture?
A. Marshall stability test
B. Rice Test (ASTM D2041/AASHTO T209) [CORRECT]**
C. Hveem stabilometer test
D. Hamburg wheel tracking test
Correct Answer: B
Rationale: The Rice Test (ASTM D2041) determines Gmm by measuring the specific gravity of a
loose, uncompacted mix sample using a vacuum saturation method. This value is essential for
calculating percent compaction in the field: (Gmb/Gmm) × 100.
Q9: What is the primary benefit of using Warm Mix Asphalt (WMA) technology?
A. Increased structural capacity of the pavement
B. Reduced production temperatures (20-40°C lower) and associated emissions [CORRECT]**
