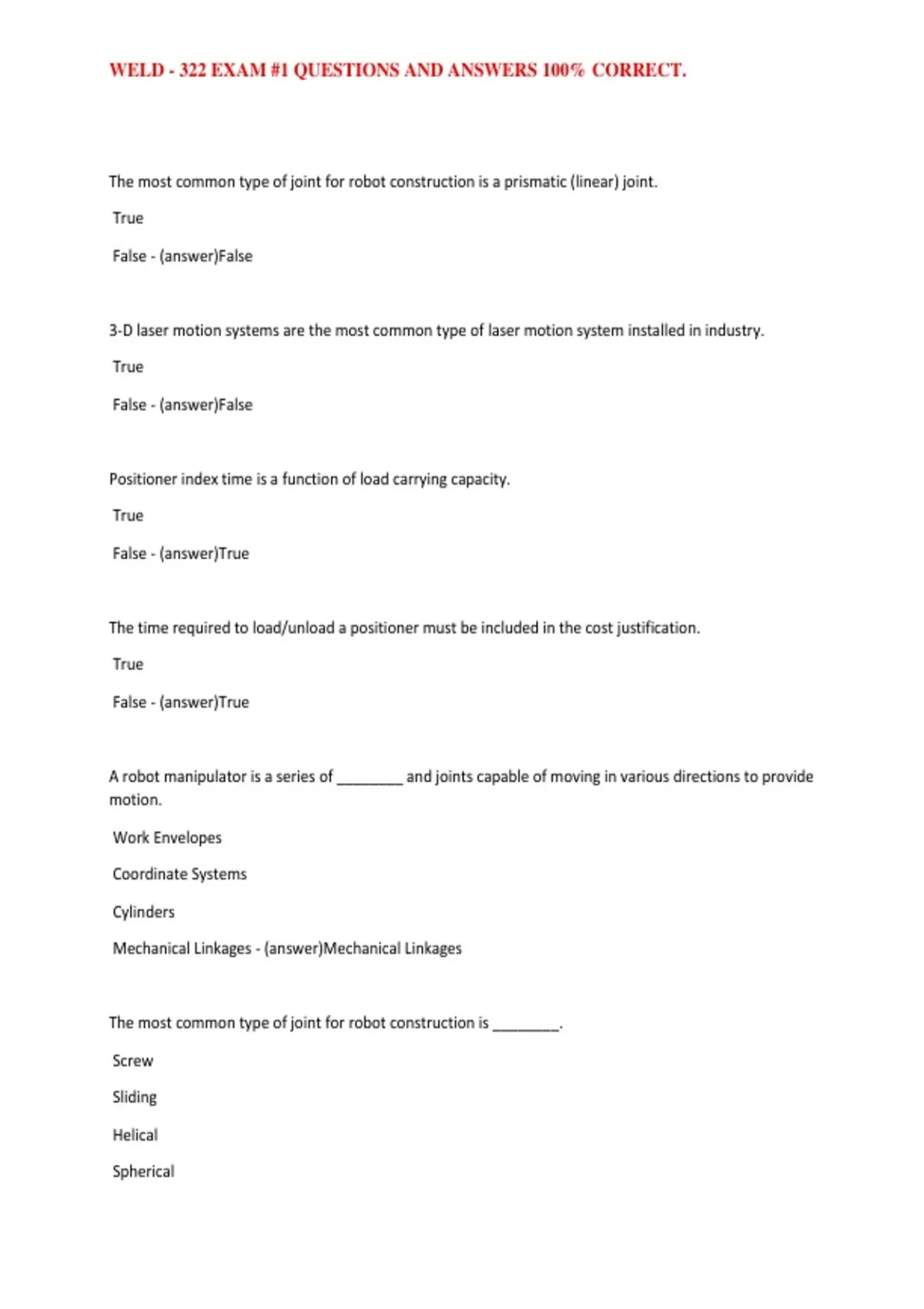

WELD - 322 EXAM #1 QUESTIONS AND ANSWERS 100% CORRECT.
The most common type of joint for robot construction is a prismatic (linear) joint.
True
False - (answer)False
3-D laser motion systems are the most common type of laser motion system installed in industry.
True
False - (answer)False
Positioner index time is a function of load carrying capacity.
True
False - (answer)True
The time required to load/unload a positioner must be included in the cost justification.
True
False - (answer)True
A robot manipulator is a series of ________ and joints capable of moving in various directions to provide
motion.
Work Envelopes
Coordinate Systems
Cylinders
Mechanical Linkages - (answer)Mechanical Linkages
The most common type of joint for robot construction is ________.
Screw
Sliding
Helical
Spherical
, WELD - 322 EXAM #1 QUESTIONS AND ANSWERS 100% CORRECT.
Revolute/ Rotary - (answer)Revolute / Rotary
An all position welding carriage/tractor rides on its ________.
Torsion Springs
Tires
Track
Guide pins - (answer)Track
Which mechanized arc motion device consists of a vertical mast and horizontal boom that carries the
welding head?
Tractor
Lathe
Manipulator
Gantry - (answer)Manipulator
Which item below is the most cost effective design for 2-D Laser motion systems?
Moving Beam
Robot
Hybrid
Fixed Beam - (answer)Fixed Beam
A positioner with an inherent overhang of 10" can handle a maximum tilt load of 5000 lb. at 12" above
the table surface. What is the positioners tilt capacity at 36" above the table surface?
2,391
5,000
15,000
1,667 - (answer)2391
