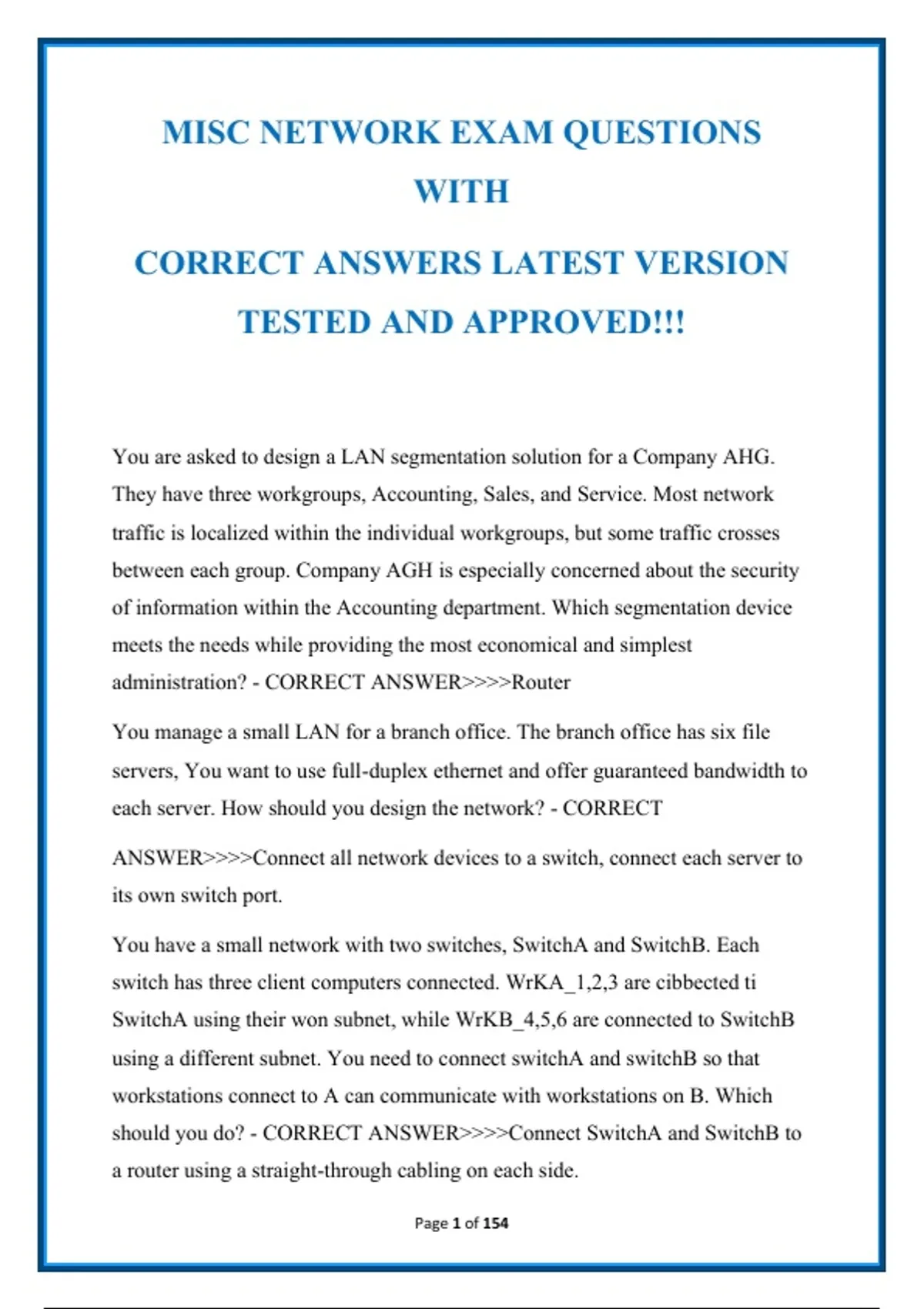

MISC NETWORK EXAM QUESTIONS
WITH
CORRECT ANSWERS LATEST VERSION
TESTED AND APPROVED!!!
You are asked to design a LAN segmentation solution for a Company AHG.
They have three workgroups, Accounting, Sales, and Service. Most network
traffic is localized within the individual workgroups, but some traffic crosses
between each group. Company AGH is especially concerned about the security
of information within the Accounting department. Which segmentation device
meets the needs while providing the most economical and simplest
administration? - CORRECT ANSWER>>>>Router
You manage a small LAN for a branch office. The branch office has six file
servers, You want to use full-duplex ethernet and offer guaranteed bandwidth to
each server. How should you design the network? - CORRECT
ANSWER>>>>Connect all network devices to a switch, connect each server to
its own switch port.
You have a small network with two switches, SwitchA and SwitchB. Each
switch has three client computers connected. WrKA_1,2,3 are cibbected ti
SwitchA using their won subnet, while WrKB_4,5,6 are connected to SwitchB
using a different subnet. You need to connect switchA and switchB so that
workstations connect to A can communicate with workstations on B. Which
should you do? - CORRECT ANSWER>>>>Connect SwitchA and SwitchB to
a router using a straight-through cabling on each side.
Page 1 of 154
,You have a small network with two switches, A and B. Each switch has three
client computers connected. IP addresses have been assigned to various devices
as follows: You need to connect switch and switchB so that workstations
connected to A and B can communicate to eachother - CORRECT
ANSWER>>>>Connect SwitchA and B using a crossover cable.
At which layer of the OSI model do network switches operate? - CORRECT
ANSWER>>>>Data link
Which of the following are characteristics of a switch? select two - CORRECT
ANSWER>>>>The collision domain on a switch is all devices connected to a
single switch port
A switch reads the MAC address in a frame and makes forwarding decisions
bases on that address.
You want to prevent collisions on your network by creating separate collision
domains and define virtual LANs. Which of the following devices should you
choose? - CORRECT ANSWER>>>>Switch
You want to implement an Ethernet network using the 1000BaseT standard
using the minimum hardware specifications possible. Which of the following
should you include in your Plan? select two - CORRECT ANSWER>>>>RJ-45
connectors Cat5e twisted pair cable
You are deploying a new 10GB Ethernet network using Cat6 cabling. which of
the following are true connecting this media? select two - CORRECT
ANSWER>>>>It supports 10 Mpbs Ethernet connections It includes a solid
plastic core
You need to connect several network devices together using twisted pair
Ethernet cables. Assuming Auto-MDI/MDIX is not enabled on these devices,
Page 2 of 154
,drag the appropriated type of cabling on the left to each connection type on the
right - CORRECT ANSWER>>>>Workstation to switch
Straight-through ethernet cable
Router to switch
Straight-through ethernet cable
Switch to switch
Crossover ethernet cable
Workstation to router
Crossover ethernet cable
Router to router
Crossover ethernet cable
Match each characteristic on the left with the appropriate fiber optic connector
on the right - CORRECT ANSWER>>>>MT-RJ
Uses metal guided pins to ensure proper alignment
LC
Uses a connector that is half the size of the otters fiber optic connectors ST
Uses a bayonet-type connector
SC
Uses a separate push-on, pull-off connector with a locking tab for each wire
2 .2.7 Practice exam - CORRECT ANSWER>>>>
Which of the following accurately describe how switches and hubs work? select
Page 3 of 154
, two - CORRECT ANSWER>>>>Switches use the hardware address in the
frame to send it only to the port where the device is located
A hub repeats frames to all ports, regardless of the destination address.
Which of the following statements are true about bridges? select two -
CORRECT ANSWER>>>>Bridges broadcast messages from one network
segment to another bridges connect two network segment to the same address
Which of the following best describe how a switch functions? select two -
CORRECT ANSWER>>>>it filters the network traffic based on hardware
address
it connects multiple network segments and forwards packets to the appropriate
segment
Which of the following are general advantages of using routers on your
network? Select three - CORRECT ANSWER>>>>Routers provide multiple
links between devices to support load balancing
Routers provide more features, such as flow control, error detection, and
congestion control, then switches or bridges
Routers support multiple routing protocols for better flexibility
Which of the following is an advantage of using a bridge? - CORRECT
ANSWER>>>>Bridges can be used to increase the maximum physical distance
of a LAN
Which of the following is a list of layer 2 devices? - CORRECT
ANSWER>>>>bridges, network interface card, switch
You have been put in charge of connecting two company networks that were
previously separated. You need to connect a 100BaseTx ethernet network with
an older token ring network. Most traffic will be localized with each network,
Page 4 of 154
