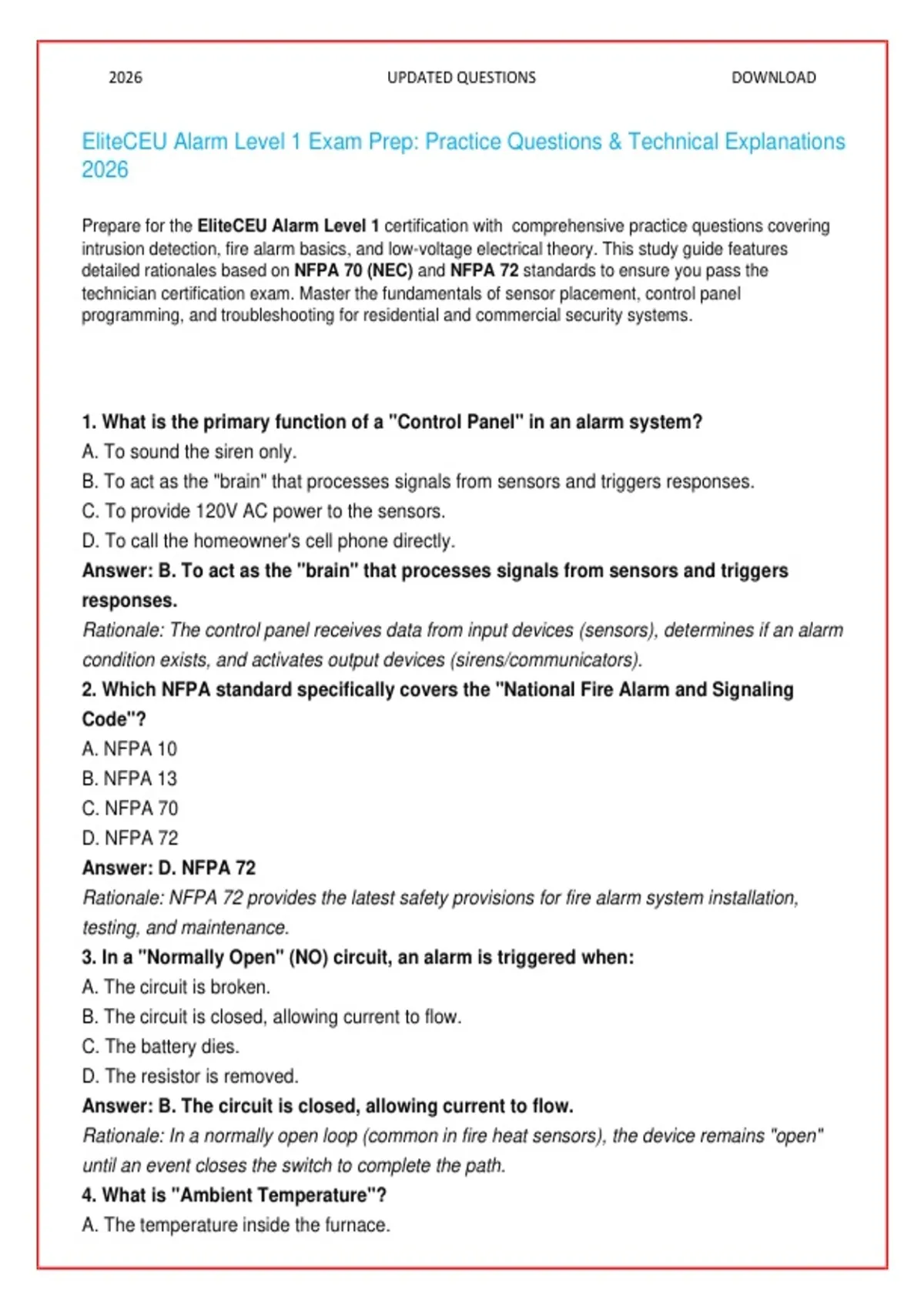

2026 UPDATED QUESTIONS DOWNLOAD
EliteCEU Alarm Level 1 Exam Prep: Practice Questions & Technical Explanations
2026
Prepare for the EliteCEU Alarm Level 1 certification with comprehensive practice questions covering
intrusion detection, fire alarm basics, and low-voltage electrical theory. This study guide features
detailed rationales based on NFPA 70 (NEC) and NFPA 72 standards to ensure you pass the
technician certification exam. Master the fundamentals of sensor placement, control panel
programming, and troubleshooting for residential and commercial security systems.
1. What is the primary function of a "Control Panel" in an alarm system?
A. To sound the siren only.
B. To act as the "brain" that processes signals from sensors and triggers responses.
C. To provide 120V AC power to the sensors.
D. To call the homeowner's cell phone directly.
Answer: B. To act as the "brain" that processes signals from sensors and triggers
responses.
Rationale: The control panel receives data from input devices (sensors), determines if an alarm
condition exists, and activates output devices (sirens/communicators).
2. Which NFPA standard specifically covers the "National Fire Alarm and Signaling
Code"?
A. NFPA 10
B. NFPA 13
C. NFPA 70
D. NFPA 72
Answer: D. NFPA 72
Rationale: NFPA 72 provides the latest safety provisions for fire alarm system installation,
testing, and maintenance.
3. In a "Normally Open" (NO) circuit, an alarm is triggered when:
A. The circuit is broken.
B. The circuit is closed, allowing current to flow.
C. The battery dies.
D. The resistor is removed.
Answer: B. The circuit is closed, allowing current to flow.
Rationale: In a normally open loop (common in fire heat sensors), the device remains "open"
until an event closes the switch to complete the path.
4. What is "Ambient Temperature"?
A. The temperature inside the furnace.
, 2026 UPDATED QUESTIONS DOWNLOAD
B. The temperature of the surrounding air in a room.
C. The temperature of the backup battery.
D. The boiling point of water.
Answer: B. The temperature of the surrounding air in a room.
Rationale: Understanding ambient temperature is critical for placing heat detectors and
avoiding false alarms from PIR sensors.
5. Which type of motion detector is most likely to "see" through a glass window?
A. PIR (Passive Infrared)
B. Microwave
C. Photoelectric Beam
D. Ultrasonic
Answer: B. Microwave
Rationale: Microwave energy can penetrate many non-metallic materials, including glass and
thin drywall, which can cause false alarms if aimed at exterior walls.
6. What is the purpose of "Line Seizure"?
A. To make the alarm louder.
/B. To allow the alarm panel to take priority over house phones to call the monitoring station.
C. To prevent lightning strikes.
D. To charge the battery faster.
Answer: B. To allow the alarm panel to take priority over house phones.
Rationale: Line seizure ensures that even if a phone is off the hook, the alarm can "seize" the
line to send an emergency signal.
7. A "Class A" fire circuit is different from "Class B" because it:
A. Uses thicker wire.
B. Is wireless.
C. Provides a redundant return path to the panel for continued operation during a single break.
D. Does not require a resistor.
Answer: C. Provides a redundant return path to the panel.
Rationale: Class A circuits "loop back" to the panel, ensuring the system still works if the wire is
cut in one place.
8. Which electrical unit measures "Resistance"?
A. Volts
B. Amps
C. Ohms
D. Watts
Answer: C. Ohms
Rationale: Resistance is the opposition to the flow of electric current, measured in Ohms (Ω).
, 2026 UPDATED QUESTIONS DOWNLOAD
9. What is a "Spot-Type" detector?
A. A sensor that covers an entire wall.
B. A detector located in a single, fixed location (like a standard smoke or heat head).
C. A handheld tester.
D. A wireless remote.
Answer: B. A detector located in a single, fixed location.
Rationale: Spot detectors monitor the air or temperature in their immediate vicinity, unlike
projected beam or line-type detectors.
10. What does "AWG" stand for?
A. Alarm Wiring Guide
B. American Wire Gauge
C. Automatic Wattage Generator
D. All-Weather Grounding
Answer: B. American Wire Gauge
Rationale: AWG is the standard system for measuring the diameter of round, solid, nonferrous,
electrically conducting wire.
11. A "Supervised" circuit can detect which of the following?
A. A wire that has been cut (Open).
B. A wire that has been bypassed (Short).
C. A functional circuit (Normal).
D. All of the above.
Answer: D. All of the above.
Rationale: By using resistors, a supervised circuit allows the panel to distinguish between a
secure state, an alarm state, and a trouble/fault state.
12. What is the maximum number of smoke detectors allowed on a single residential
initiating circuit according to typical UL listings?
A. 5
B. 10
C. Varies by manufacturer/panel capacity
D. Unlimited
Answer: C. Varies by manufacturer/panel capacity
Rationale: You must check the panel’s technical manual for the maximum "current draw"
allowed per zone to determine the limit.
13. A "Heat Detector" that triggers when the temperature rises 15°F in one minute is
called:
A. Fixed Temperature
B. Rate-of-Rise
, 2026 UPDATED QUESTIONS DOWNLOAD
C. Photoelectric
D. Ionization
Answer: B. Rate-of-Rise
Rationale: Rate-of-rise detectors respond to rapid changes in heat rather than a specific set
point.
14. Which tool is used to pull wire through a conduit?
A. Multimeter
B. Fish tape
C. Level
D. Wire strippers
Answer: B. Fish tape
Rationale: Fish tape is a long, flexible steel ribbon used to navigate wires through narrow paths
and piping.
15. What is "Inductance"?
A. The ability to store electricity in a battery.
B. The property of a circuit that opposes changes in current, often caused by coils of wire.
C. A short circuit.
D. The color of the wire.
Answer: B. The property of a circuit that opposes changes in current.
Rationale: Inductance is a factor in AC circuits and can affect how signals travel through long
wire runs near power lines.
16. A "Waterflow Switch" is used in which type of system?
A. Burglar alarm
B. Fire sprinkler system
C. HVAC system
D. Access control
Answer: B. Fire sprinkler system
Rationale: These switches detect the movement of water inside sprinkler pipes, indicating a
head has opened or a leak has occurred.
17. "Power Limiting" cables are designed to:
A. Save money on electricity.
B. Prevent the cable from starting a fire if a fault occurs.
C. Make the siren quieter.
D. Stop the battery from overcharging.
Answer: B. Prevent the cable from starting a fire if a fault occurs.
Rationale: Power-limited circuits restrict the amount of energy available to prevent ignition of
the wire insulation.
