2026 UPDATED QUESTIONS DOWNLOAD

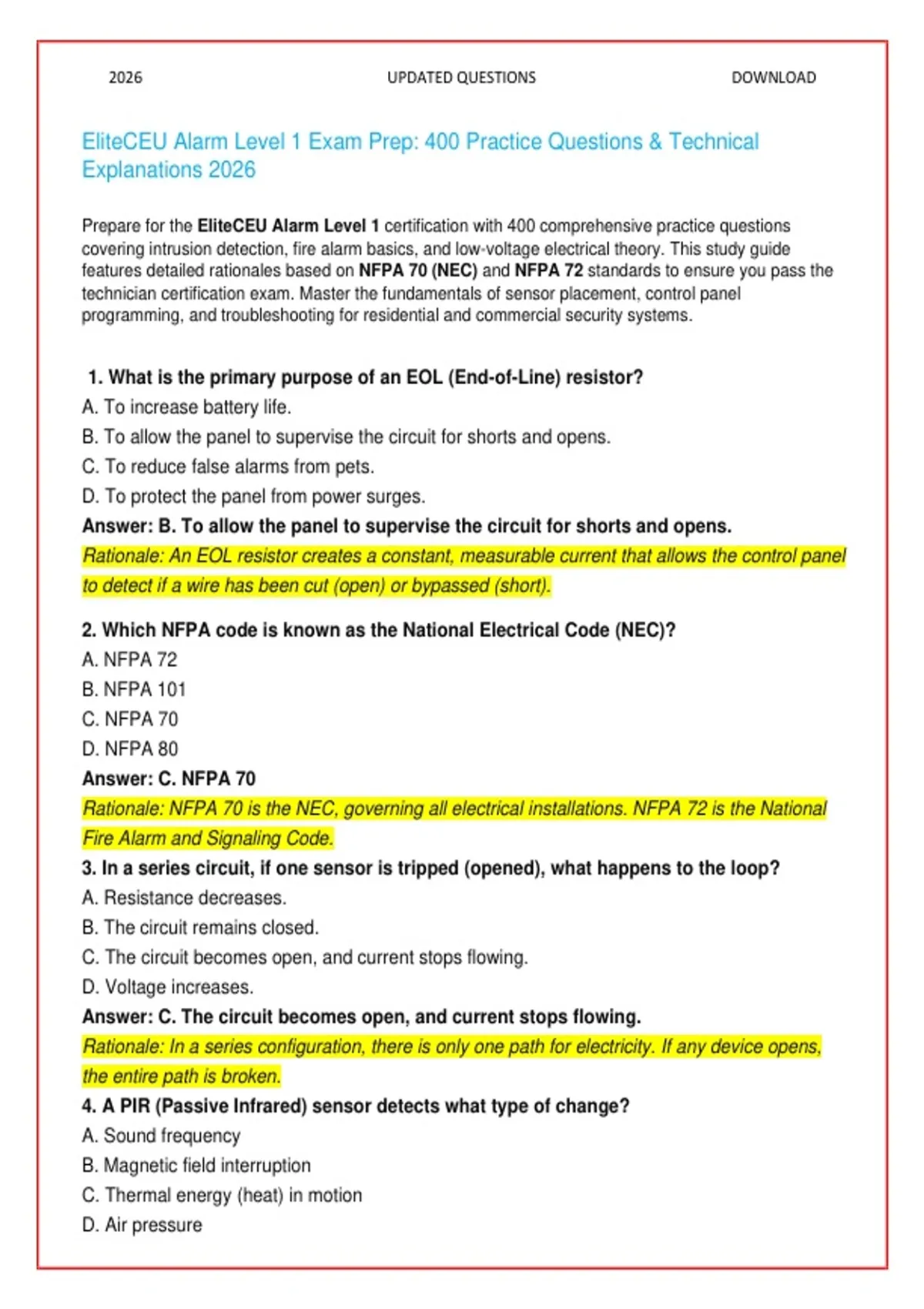

EliteCEU Alarm Level 1 Exam Prep: 400 Practice Questions & Technical
Explanations 2026
Prepare for the EliteCEU Alarm Level 1 certification with 400 comprehensive practice questions
covering intrusion detection, fire alarm basics, and low-voltage electrical theory. This study guide
features detailed rationales based on NFPA 70 (NEC) and NFPA 72 standards to ensure you pass the
technician certification exam. Master the fundamentals of sensor placement, control panel
programming, and troubleshooting for residential and commercial security systems.
1. What is the primary purpose of an EOL (End-of-Line) resistor?
A. To increase battery life.
B. To allow the panel to supervise the circuit for shorts and opens.
C. To reduce false alarms from pets.
D. To protect the panel from power surges.
Answer: B. To allow the panel to supervise the circuit for shorts and opens.
Rationale: An EOL resistor creates a constant, measurable current that allows the control panel
to detect if a wire has been cut (open) or bypassed (short).
2. Which NFPA code is known as the National Electrical Code (NEC)?
A. NFPA 72
B. NFPA 101
C. NFPA 70
D. NFPA 80
Answer: C. NFPA 70
Rationale: NFPA 70 is the NEC, governing all electrical installations. NFPA 72 is the National
Fire Alarm and Signaling Code.
3. In a series circuit, if one sensor is tripped (opened), what happens to the loop?
A. Resistance decreases.
B. The circuit remains closed.
C. The circuit becomes open, and current stops flowing.
D. Voltage increases.
Answer: C. The circuit becomes open, and current stops flowing.
Rationale: In a series configuration, there is only one path for electricity. If any device opens,
the entire path is broken.
4. A PIR (Passive Infrared) sensor detects what type of change?
A. Sound frequency
B. Magnetic field interruption
C. Thermal energy (heat) in motion
D. Air pressure
, 2026 UPDATED QUESTIONS DOWNLOAD
Answer: C. Thermal energy (heat) in motion
Rationale: PIR sensors do not "see" images; they detect the movement of heat (infrared
energy) against a stable background.
5. What is the standard height for mounting a manual fire alarm pull station?
A. 36 to 42 inches
B. 42 to 48 inches
C. 48 to 54 inches
D. 60 inches
Answer: B. 42 to 48 inches
Rationale: ADA and NFPA 72 requirements specify that the operable part of the pull station
must be between 42 and 48 inches from the floor.
6. Which type of glassbreak sensor is best at filtering out environmental noise?
A. Simple shock sensor
B. Dual-technology (Acoustic + Flex)
C. Vibration sensor
D. Magnetic foil
Answer: B. Dual-technology (Acoustic + Flex)
Rationale: Dual-tech sensors require both the low-frequency "thud" of an impact (flex) and the
high-frequency "shatter" sound to trigger, reducing false alarms.
7. Ohm’s Law states that Voltage (E) is equal to:
A. I / R
B. I + R
C. I x R
D. R / I
Answer: C. I x R
Rationale: Voltage equals Current (Amps) multiplied by Resistance (Ohms).
8. A smoke detector should not be mounted within how many inches of a corner?
A. 2 inches
B. 4 inches
C. 12 inches
D. 18 inches
Answer: B. 4 inches
Rationale: Dead air space occurs in corners where walls meet ceilings, preventing smoke from
reaching the sensor quickly.
9. What does the term "Normally Closed" (NC) mean in a standby state?
A. The circuit is broken.
B. Current is flowing through the loop.
, 2026 UPDATED QUESTIONS DOWNLOAD
C. The alarm is sounding.
D. The panel is powered off.
Answer: B. Current is flowing through the loop.
Rationale: In a "Normally Closed" loop, the switches are closed when the system is armed and
secure, allowing current to flow.
10. Which wire gauge is thicker: 18 AWG or 22 AWG?
A. 22 AWG
B. 18 AWG
C. They are the same.
D. It depends on the voltage.
Answer: B. 18 AWG
Rationale: In the American Wire Gauge system, the smaller the number, the thicker the wire.
11. What is the secondary power source for most alarm panels?
A. Solar panels
B. Lead-acid backup battery
C. AA alkaline batteries
D. Diesel generator
Answer: B. Lead-acid backup battery
Rationale: Most panels use a 12V sealed lead-acid battery to maintain operation during AC
power failures.
12. A "Hardwired" zone refers to:
A. A wireless transmitter.
B. A physical wire connecting the sensor to the panel.
C. A software-only zone.
D. A telephone line.
Answer: B. A physical wire connecting the sensor to the panel.
Rationale: Hardwired zones use copper conductors to transmit signals rather than radio
frequencies (RF).
13. Which technology is most effective for protecting a large warehouse area with high
ceilings?
A. PIR Motion Detector
B. Beam Detector
C. Magnetic Contacts
D. Glassbreak Sensor
Answer: B. Beam Detector
Rationale: Projected beam detectors use a light transmitter and receiver to cover long
distances where standard PIRs would be ineffective.
, 2026 UPDATED QUESTIONS DOWNLOAD
14. What is a "False Alarm"?
A. An alarm caused by a burglar.
B. An alarm triggered by an authorized user.
C. An alarm triggered by a non-emergency condition (pets, equipment, etc.).
D. An alarm that failed to sound.
Answer: C. An alarm triggered by a non-emergency condition.
Rationale: False alarms are "nuisance" alarms that occur without an actual intrusion or fire.
15. What type of sensor is commonly used to protect a double-hung window?
A. Panic button
B. Magnetic contact
C. Water sensor
D. Heat detector
Answer: B. Magnetic contact
Rationale: Magnetic reed switches are the standard for monitoring the opening and closing of
doors and windows.
16. Which of the following can cause a PIR to false alarm?
A. A spider crawling across the lens.
B. Sunlight reflecting off a mirror.
C. A curtain blowing in front of a vent.
D. All of the above.
Answer: D. All of the above.
Rationale: PIRs detect changes in thermal energy; movement or light-induced heat changes
can trip the sensor.
17. What is the standard voltage for most residential alarm systems?
A. 5V DC
B. 12V DC
C. 24V DC
D. 120V AC
Answer: B. 12V DC
Rationale: While the transformer plugs into 120V AC, the internal circuitry and sensors typically
operate on 12V DC.
18. A "Stay" arming mode typically bypasses which zones?
A. Front Door
B. Windows
C. Interior Motion Detectors
D. Smoke Detectors
Answer: C. Interior Motion Detectors
