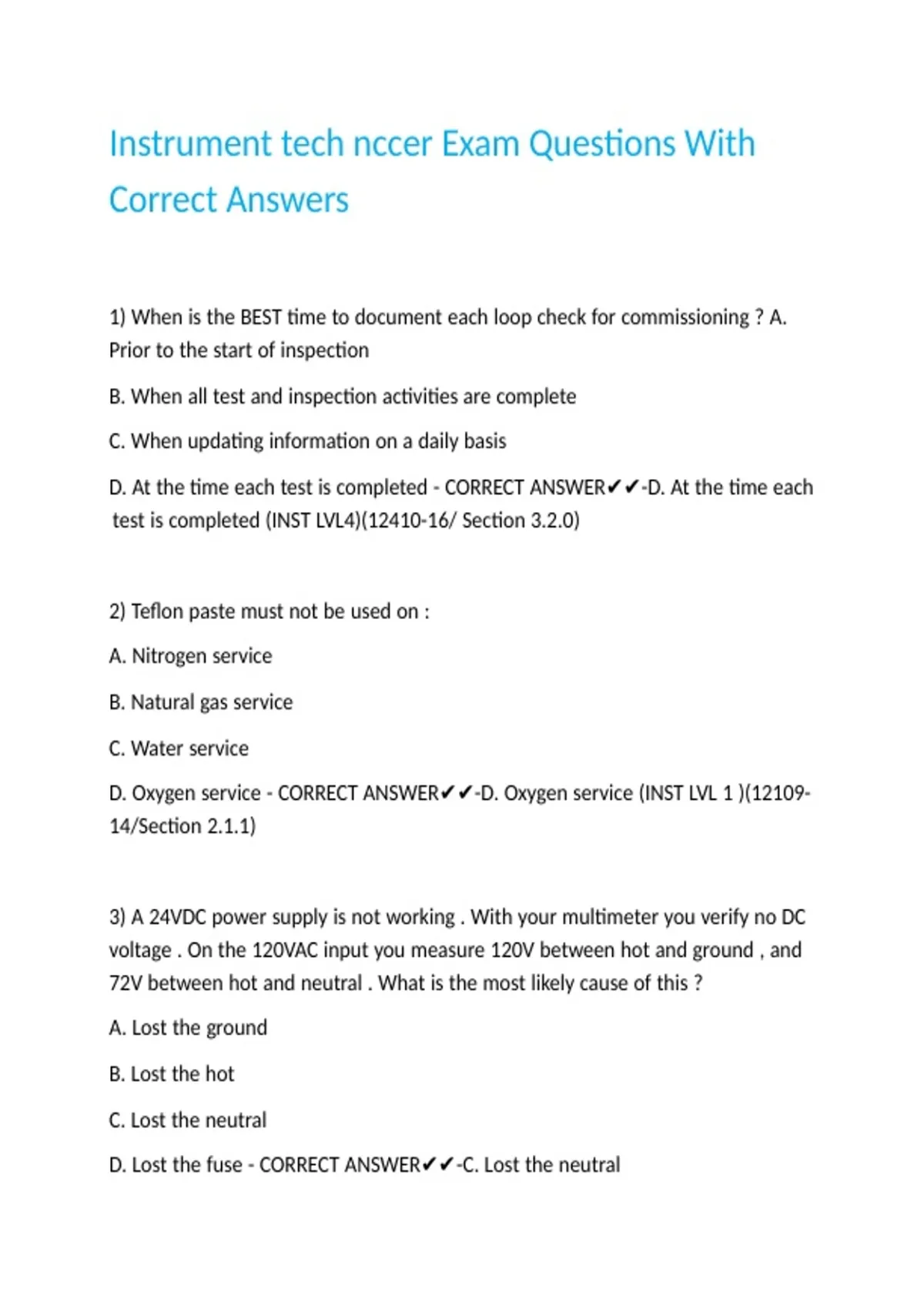

Instrument tech nccer Exam Questions With Correct Answers

Instrument tech nccer Exam Questions With
Correct Answers

1) When is the BEST time to document each loop check for commissioning ? A.
| | | | | | | | | | | | | | |


Prior to the start of inspection
| | | | | |




B. When all test and inspection activities are complete
| | | | | | | | |




C. When updating information on a daily basis
| | | | | | | |




D. At the time each test is completed - CORRECT ANSWER✔✔-D. At the time each
| | | | | | | | | | | | | |


test is completed (INST LVL4)(12410-16/ Section 3.2.0)
| | | | | | |




2) Teflon paste must not be used on :
| | | | | | | | |




A. Nitrogen service
| | |




B. Natural gas service
| | | |




C. Water service
| | |




D. Oxygen service - CORRECT ANSWER✔✔-D. Oxygen service (INST LVL 1 )(12109-
| | | | | | | | | | |


14/Section 2.1.1) |




3) A 24VDC power supply is not working . With your multimeter you verify no DC
| | | | | | | | | | | | | | | |


voltage . On the 120VAC input you measure 120V between hot and ground , and
| | | | | | | | | | | | | | |


72V between hot and neutral . What is the most likely cause of this ?
| | | | | | | | | | | | | | |




A. Lost the ground
| | | |




B. Lost the hot
| | | |




C. Lost the neutral
| | | |




D. Lost the fuse - CORRECT ANSWER✔✔-C. Lost the neutral
| | | | | | | | |

,4) Gain increase when tube :
| | | | | |




A. Back bends are made
| | | | |




B. Bend radius increases
| | | |




C. Size decreases
| | |




D. Long radius elbows are used - CORRECT ANSWER✔✔-B. Bend radius increases
| | | | | | | | | | | |


(INST LVL 2)(12302-15 section 2.1.1)
| | | |




5) A temperature measuring device that produces a voltage as the temperature
| | | | | | | | | | | |


changes is a / an : | | | | | |




A. RTD
| |




B. Thermistor
| |




C. Thermometer
| |




D. Thermocouple - CORRECT ANSWER✔✔-D. Thermocouple (INST LVL 2) (12110-
| | | | | | | | |


15 section 1.2.2)
| |




6) A pressure piping code is found in :
| | | | | | | | |




A. ANSI B 31.1
| | | |




B. NEC 690 .
| | | |




C. OSHA1910 .
| | |




D. ISA S 5.1 - CORRECT ANSWER✔✔-A. ANSI B 31.1
| | | | | | | | |




7) When marking tubing for cutting , the preferred method is
| | | | | | | | | | |




A. Scribe a mark into the tube with a sharp object .
| | | | | | | | | | | |

,B. Mark the tube with a grease pencil
| | | | | | | |




C. Mark the tube with a felt tip pen
| | | | | | | | |




D. Mark the tube with a crayon - CORRECT ANSWER✔✔-C. Mark the tube with a
| | | | | | | | | | | | | | |


felt tip pen
| |




8) An example of direct measurement indicator is a :
| | | | | | | | | |




A. Pressure gauge
| | |




B. Bulb thermometer
| | |




C. Sight glass
| | |




D. Flowmeter - CORRECT ANSWER✔✔-C. Sight glass
| | | | | |




9) On the image , how many hand valves are installed on Tank 1201C
| | | | | | | | | | | | | |




A. 1
| |




B. 2
| |




C. 3
| |




D. 4 - CORRECT ANSWER✔✔-C. 3
| | | | |




10) What is the first step in troubleshooting a problem in a system ?
| | | | | | | | | | | | | |




A. Turn off power to the instrument
| | | | | | |




B. Stimulate an input
| | | |




C. Verify that there is a problem
| | | | | | |




D. Stimulate an output - CORRECT ANSWER✔✔-C. Verify that there is a problem
| | | | | | | | | | | |




11) Where can the appropriate elevation of an instrument be found ?
| | | | | | | | | | | |

, A. Location drawing
| | |




B. P & ID
| | | |




C. Flow diagram
| | |




D. Loop drawing - CORRECT ANSWER✔✔-A. Location drawing
| | | | | | |




12) Chemical cleaning of tubing attached to instruments may cause damage to
| | | | | | | | | | | |


sensor |




A. Electronics
| |




B. Paint
| |




C. Elements
| |




D. Bolts - CORRECT ANSWER✔✔-C. Elements
| | | | |




13) When making 90 - degree tubing bend , allowance for springback should be :
| | | | | | | | | | | | | | |


A. 6 to 8 degrees
| | | | |




B. 4-5 degrees
| | |




C. 1 to 3 degrees
| | | | |




D. 0 degrees - CORRECT ANSWER✔✔-C. 1 to 3 degrees
| | | | | | | | |




14) Cable shields should be connected to the :
| | | | | | | | |




A. Signal ground reference point
| | | | |




B. Ground at each accessible location
| | | | | |




C. First accessible grounding electrode
| | | | |




D. Raceway or cable tray in which the cable is routed - CORRECT ANSWER✔✔-B.
| | | | | | | | | | | | | |


Ground at each accessible location
| | | |
