EE 202 Lab 6 AC Analysis, Simulations, and Hardware Experiments Exam QUESTIONS AND CORRECT VERIFIED ANSWERS |ALREADY GRADED A+|

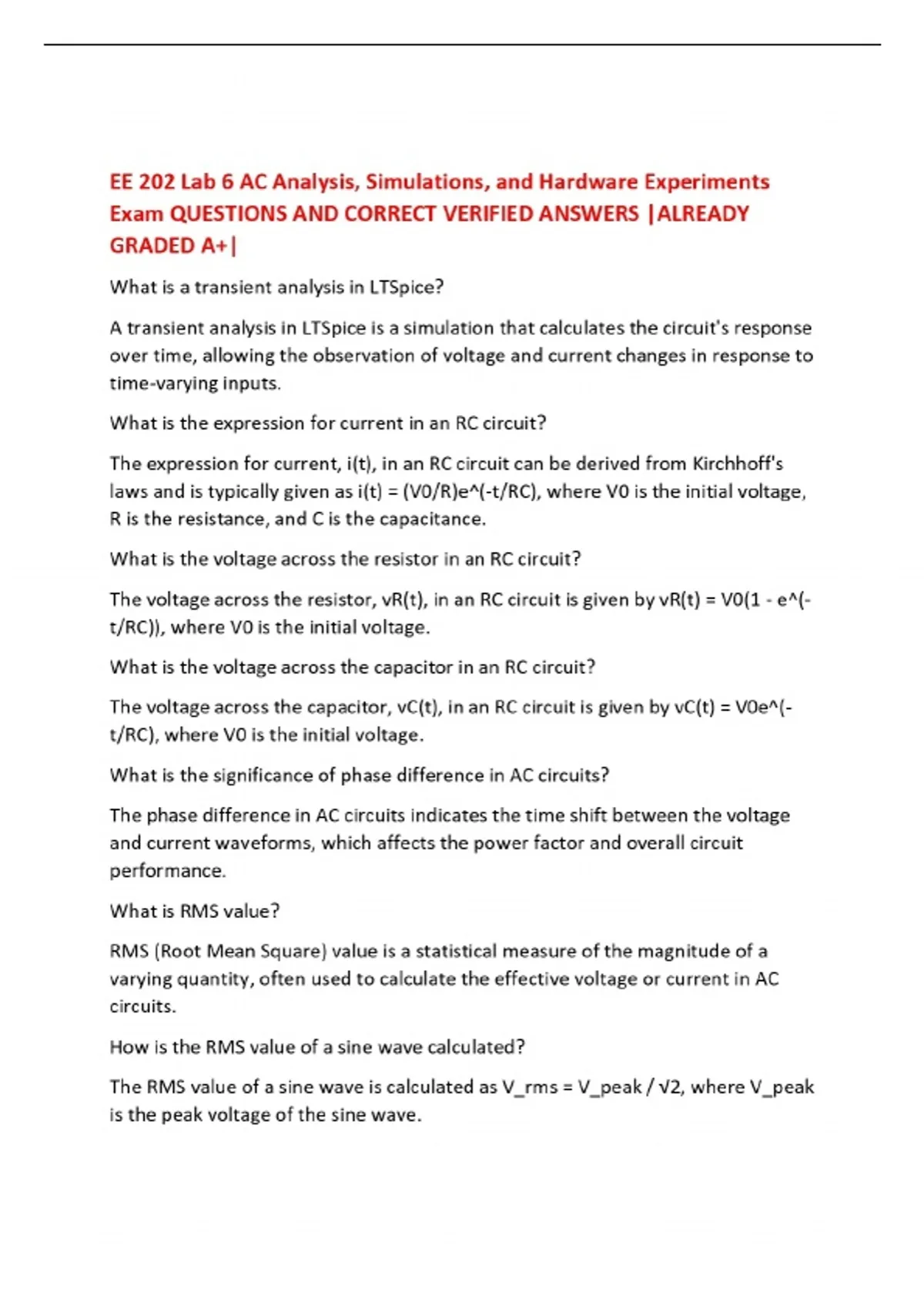

EE 202 Lab 6 AC Analysis, Simulations, and Hardware Experiments Exam QUESTIONS AND CORRECT VERIFIED ANSWERS |ALREADY GRADED A+| What is a transient analysis in LTSpice? A transient analysis in LTSpice is a simulation that calculates the circuit's response over time, allowing the observation of voltage and current changes in response to time-varying inputs. What is the expression for current in an RC circuit? The expression for current, i(t), in an RC circuit can be derived from Kirchhoff's laws and is typically given as i(t) = (V0/R)e^(-t/RC), where V0 is the initial voltage, R is the resistance, and C is the capacitance. What is the voltage across the resistor in an RC circuit? The voltage across the resistor, vR(t), in an RC circuit is given by vR(t) = V0(1 - e^( t/RC)), where V0 is the initial voltage. What is the voltage across the capacitor in an RC circuit? The voltage across the capacitor, vC(t), in an
