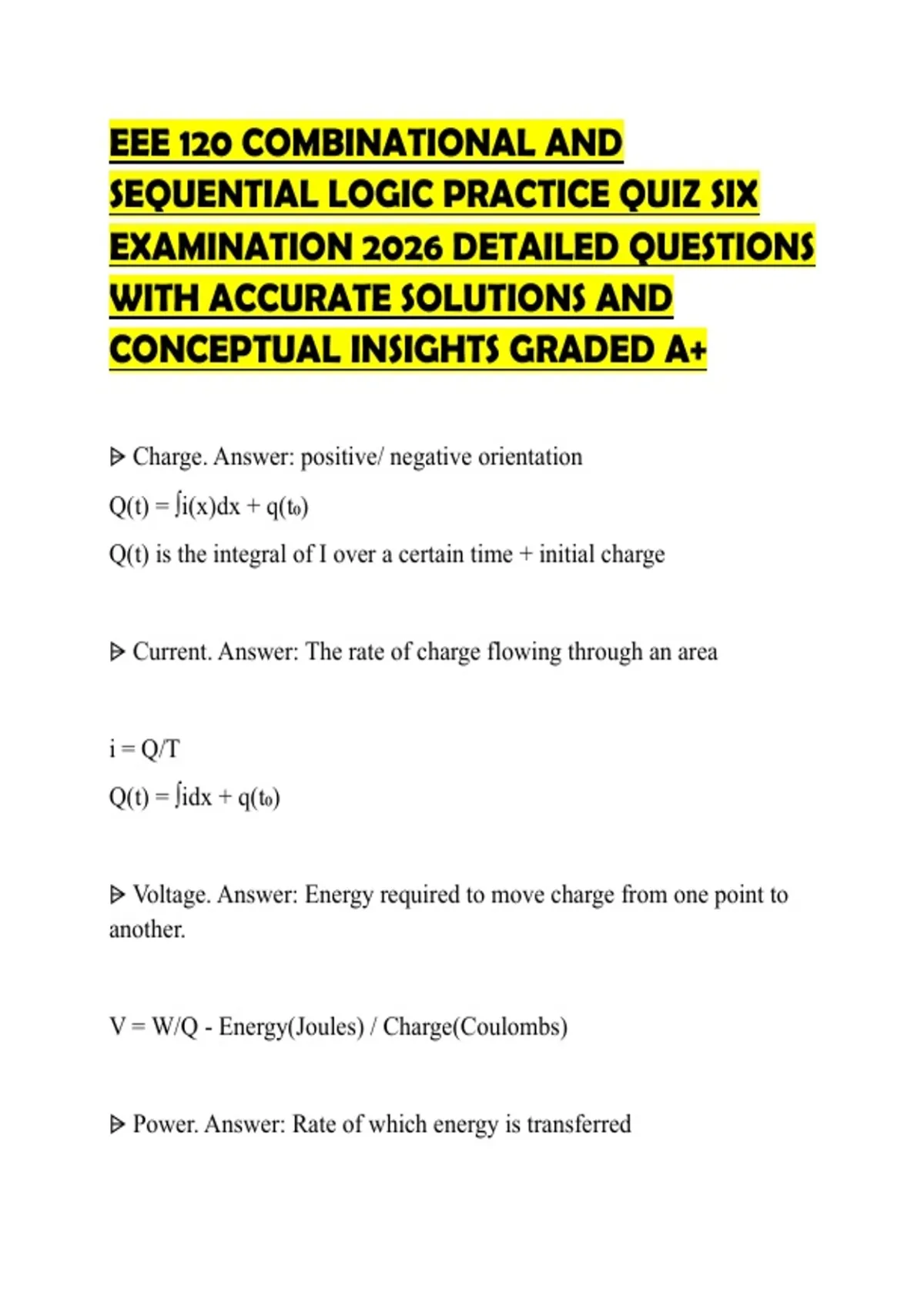

EEE 120 COMBINATIONAL AND SEQUENTIAL LOGIC PRACTICE QUIZ SIX EXAMINATION 2026 DETAILED QUESTIONS WITH ACCURATE SOLUTIONS AND CONCEPTUAL INSIGHTS GRADED A+

EEE 120 COMBINATIONAL AND
SEQUENTIAL LOGIC PRACTICE QUIZ SIX
EXAMINATION 2026 DETAILED QUESTIONS
WITH ACCURATE SOLUTIONS AND
CONCEPTUAL INSIGHTS GRADED A+

⩥ Charge. Answer: positive/ negative orientation
Q(t) = ∫i(x)dx + q(t₀)
Q(t) is the integral of I over a certain time + initial charge


⩥ Current. Answer: The rate of charge flowing through an area


i = Q/T
Q(t) = ∫idx + q(t₀)


⩥ Voltage. Answer: Energy required to move charge from one point to
another.


V = W/Q - Energy(Joules) / Charge(Coulombs)


⩥ Power. Answer: Rate of which energy is transferred

, P = dw/dt or P = V * I


Power can be found by taking the interval from t0 to t1 of power


∫P * dt = ∫ dw/dt * dt = ∫dw


⩥ Passive Sign Convention. Answer: A voltage drop exists from high
voltage terminal (+) to lower terminal (-).


-Current moving through a drop in voltage means a loss in energy.


Positive Power means energy absorbed, Negative power means energy
delivered/generated


-Current will flow through voltage drops and must match with the
voltage when flipping current/voltage symbols, sign must also switch.


⩥ Conservation of Power. Answer: Power is conserved within a circuit,
Power Generated will be equal to power absorbed


⩥ Resistance Devices. Answer: Measured through Ohms or Siemens( G
/ (1/r) )
