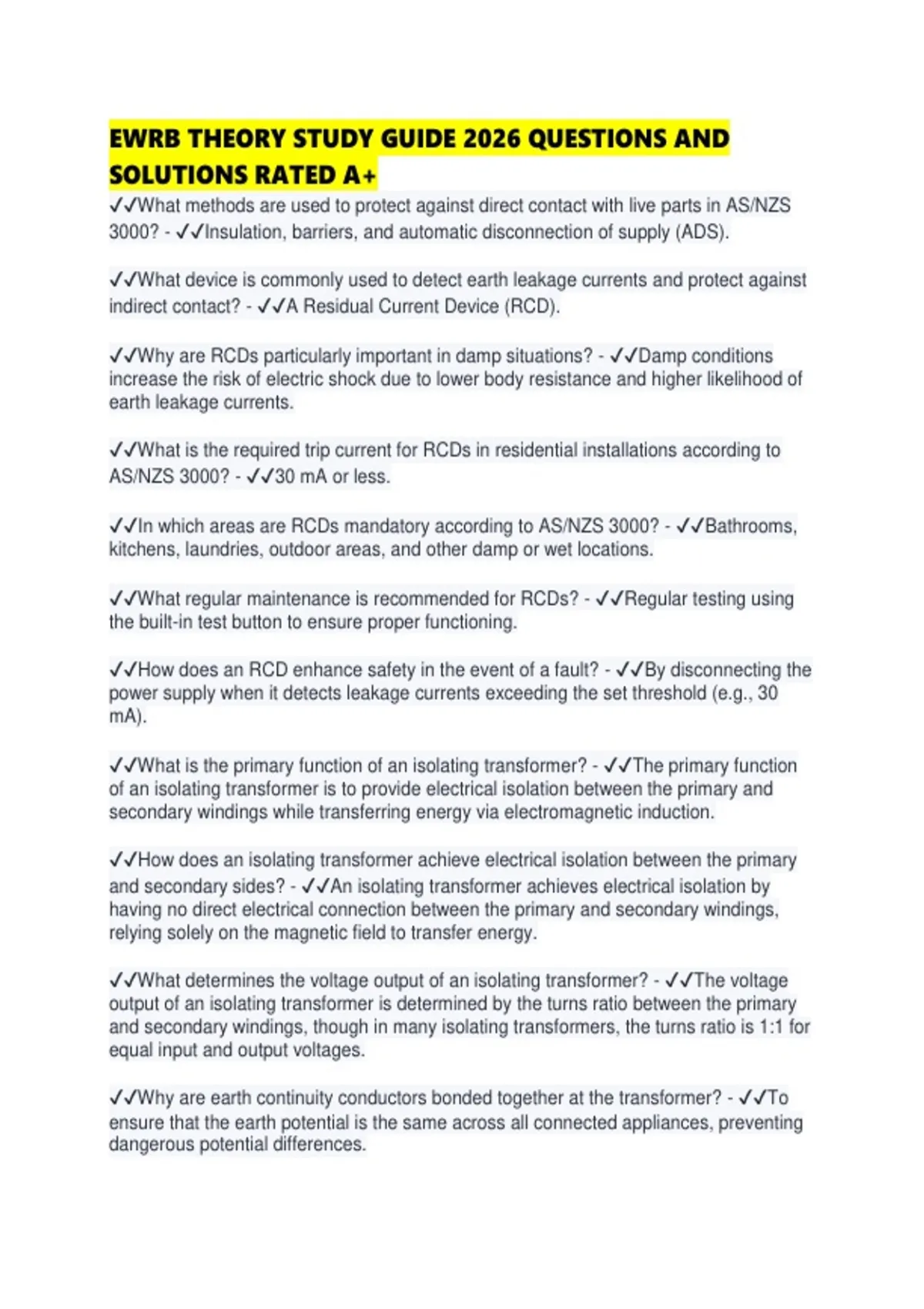

EWRB THEORY STUDY GUIDE 2026 QUESTIONS AND
SOLUTIONS RATED A+
✔✔What methods are used to protect against direct contact with live parts in AS/NZS
3000? - ✔✔Insulation, barriers, and automatic disconnection of supply (ADS).
✔✔What device is commonly used to detect earth leakage currents and protect against
indirect contact? - ✔✔A Residual Current Device (RCD).
✔✔Why are RCDs particularly important in damp situations? - ✔✔Damp conditions
increase the risk of electric shock due to lower body resistance and higher likelihood of
earth leakage currents.
✔✔What is the required trip current for RCDs in residential installations according to
AS/NZS 3000? - ✔✔30 mA or less.
✔✔In which areas are RCDs mandatory according to AS/NZS 3000? - ✔✔Bathrooms,
kitchens, laundries, outdoor areas, and other damp or wet locations.
✔✔What regular maintenance is recommended for RCDs? - ✔✔Regular testing using
the built-in test button to ensure proper functioning.
✔✔How does an RCD enhance safety in the event of a fault? - ✔✔By disconnecting the
power supply when it detects leakage currents exceeding the set threshold (e.g., 30
mA).
✔✔What is the primary function of an isolating transformer? - ✔✔The primary function
of an isolating transformer is to provide electrical isolation between the primary and
secondary windings while transferring energy via electromagnetic induction.
✔✔How does an isolating transformer achieve electrical isolation between the primary
and secondary sides? - ✔✔An isolating transformer achieves electrical isolation by
having no direct electrical connection between the primary and secondary windings,
relying solely on the magnetic field to transfer energy.
✔✔What determines the voltage output of an isolating transformer? - ✔✔The voltage
output of an isolating transformer is determined by the turns ratio between the primary
and secondary windings, though in many isolating transformers, the turns ratio is 1:1 for
equal input and output voltages.
✔✔Why are earth continuity conductors bonded together at the transformer? - ✔✔To
ensure that the earth potential is the same across all connected appliances, preventing
dangerous potential differences.
, ✔✔What is the risk of earthing the appliances when connected to an isolating
transformer? - ✔✔It could create a difference in potential between appliances, leading
to electric shock or malfunction.
✔✔What is the main purpose of an isolating transformer? - ✔✔To isolate the secondary
circuit from the primary supply and prevent direct earth contact.
✔✔Why should the earth continuity conductors not be earthed in a system with an
isolating transformer? - ✔✔It would allow unwanted current flow to the ground,
compromising the safety provided by the transformer's isolation.
✔✔How does bonding the earth continuity conductors at the transformer enhance
safety? - ✔✔It ensures a safe return path for fault currents, preventing them from
flowing through dangerous or unintended routes.
✔✔What happens if the earth continuity conductors are not properly bonded at the
transformer? - ✔✔There may be potential differences that could lead to electrical
hazards, such as shocks or fires, during fault conditions.
✔✔Why is insulation resistance important for protection against electric shock? -
✔✔Insulation resistance ensures that the electrical system can handle peak voltages
without allowing dangerous leakage currents, preventing electric shock.
✔✔What happens if insulation cannot handle peak voltages? - ✔✔If insulation cannot
handle peak voltages, it may break down, allowing leakage currents that could lead to
electric shock or equipment damage.
✔✔What is the danger of simultaneously contacting active (phase) and neutral
conductors? - ✔✔It creates a complete circuit for current to flow through the body,
which can result in an electric shock.
✔✔Why is it dangerous to touch both the active (phase) and earth conductors? -
✔✔Touching both can provide a path for the current to flow through the body, leading to
electric shock, as the earth conductor may be at a different potential.
✔✔What are the effects of voltage on the severity of an electric shock? - ✔✔Higher
voltage increases the current that flows through the body, making the shock more
severe.
✔✔How does the duration of contact with electricity affect the severity of a shock? -
✔✔The longer the contact, the more current flows through the body, increasing the
severity of the shock and potential injury.
