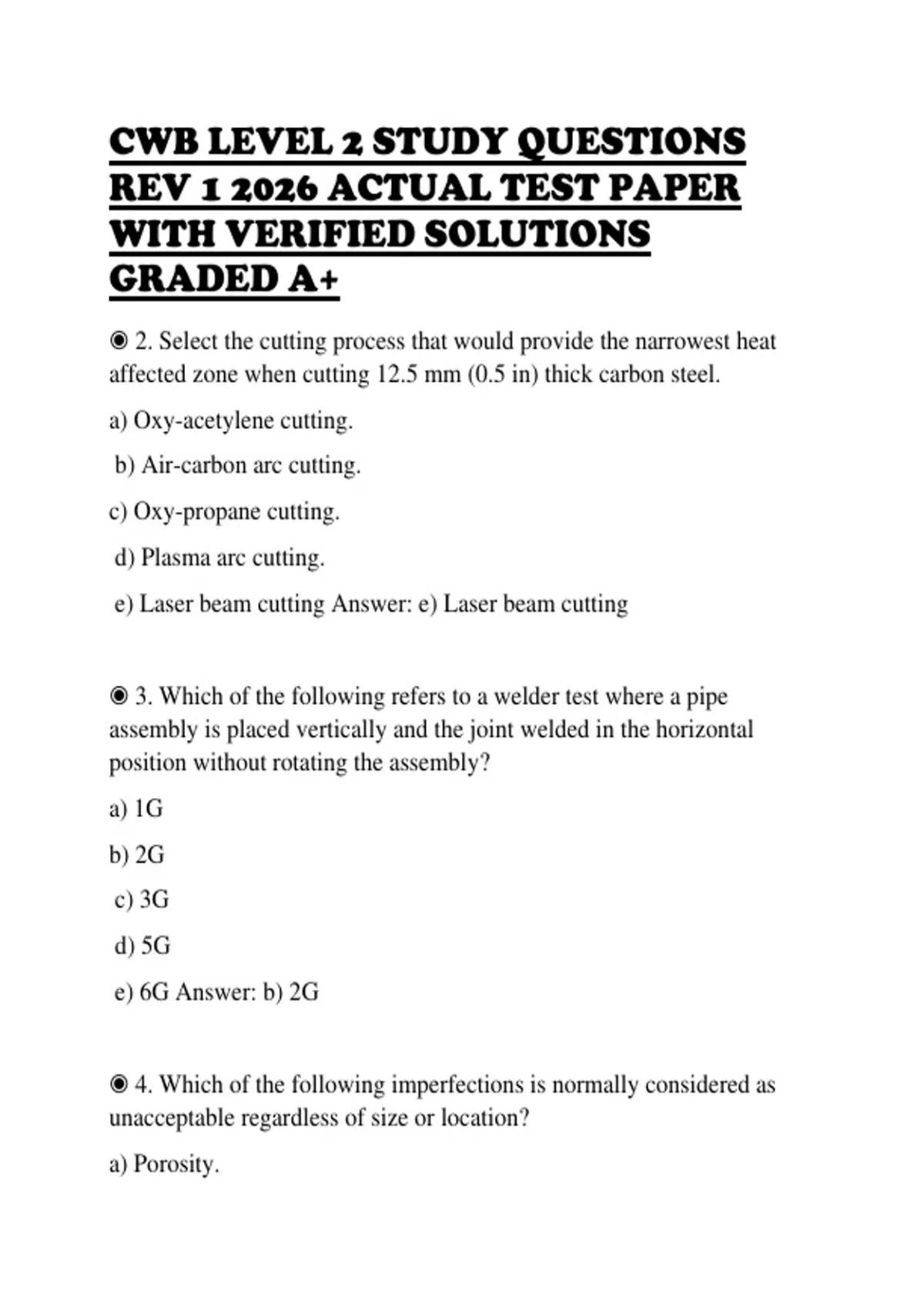

CWB LEVEL 2 STUDY QUESTIONS
REV 1 2026 ACTUAL TEST PAPER
WITH VERIFIED SOLUTIONS
GRADED A+
◉ 2. Select the cutting process that would provide the narrowest heat
affected zone when cutting 12.5 mm (0.5 in) thick carbon steel.
a) Oxy-acetylene cutting.
b) Air-carbon arc cutting.
c) Oxy-propane cutting.
d) Plasma arc cutting.
e) Laser beam cutting Answer: e) Laser beam cutting
◉ 3. Which of the following refers to a welder test where a pipe
assembly is placed vertically and the joint welded in the horizontal
position without rotating the assembly?
a) 1G
b) 2G
c) 3G
d) 5G
e) 6G Answer: b) 2G
◉ 4. Which of the following imperfections is normally considered as
unacceptable regardless of size or location?
a) Porosity.
,b) Crack.
c) Inadequate penetration.
d) Lamination.
e) Burn-through. Answer: b) Crack.
◉ 5. Select the correct penetrameter thickness for 2% sensitivity when
radiographing a weldment 1 .25 inches in thickness.
a) 0.012 in.
b) 0.015 in.
c) 0.025 in
d) 0.030 in. Answer: c) 0.025 in
◉ 6. Which of the following statements concerning porosity is true?
a) Porosity cannot be trapped within a weld.
b) Porosity moves up through later passes and will show only in a final
pass.
c) Porosity is restricted to the centre line of a weld.
d) Porosity can result from faulty welder technique.
e) Porosity can be dissipated by an appropriate heat treatment. Answer:
d) Porosity can result from faulty welder technique.
◉ 7. An irregular, dense white spot is seen on the radiograph of a weld.
Assuming it was caused by the welding process used, which one of the
processes below would be responsible?
,a) SMAW process.
b) GTAW process.
c) GMAW process.
d) ST process.
e) ESW process. Answer: b) GTAW process.
◉ 8. Which of the following operations is known to result in the
emission of ionizing radiation at levels dangerous to human health?
A) shield metal arc welding.
B) Plasma arc welding.
C) Operation of high voltage portable generator sets.
d) Radiographic inspection.
e) Electroslag and electrogas welding. Answer: d) Radiographic
inspection.
◉ 9. The ultrasonic transducer is pressed against the plate of a welded
joint. The sound travels
longitudinally through the plate to the opposite side. The signal seen on
the UT screen that comes from this opposite side of the plate:
a) Is the initial pulse signal.
b) Is the back reflection signal.
c) Is the front reflection signal.
d) Must be equal in amplitude to any defect signal.
e) Cannot be used for establishing the thickness of the material under
test. Answer: b) Is the back reflection signal.
, ◉ 11. Which of the following is a stainless steel electrode?
a) E4918-1
b) E4918-A1
c) E4818
d) E308-16
e) E4111 Answer: d) E308-16
◉ 12. Reverse polarity refers to the use of a:
a) AC power source, electrode +
b) DC power source, electrode+
c) AC power source, electrode-
d) DC power source, electrode- Answer: b) DC power source,
electrode+
◉ 13. Which welding process(es) can result in metallic inclusions in the
weld?
a) SMAW.
b) FCAW.
c) GMAW.
d) GTAW
e) SAW Answer: d) GTAW
