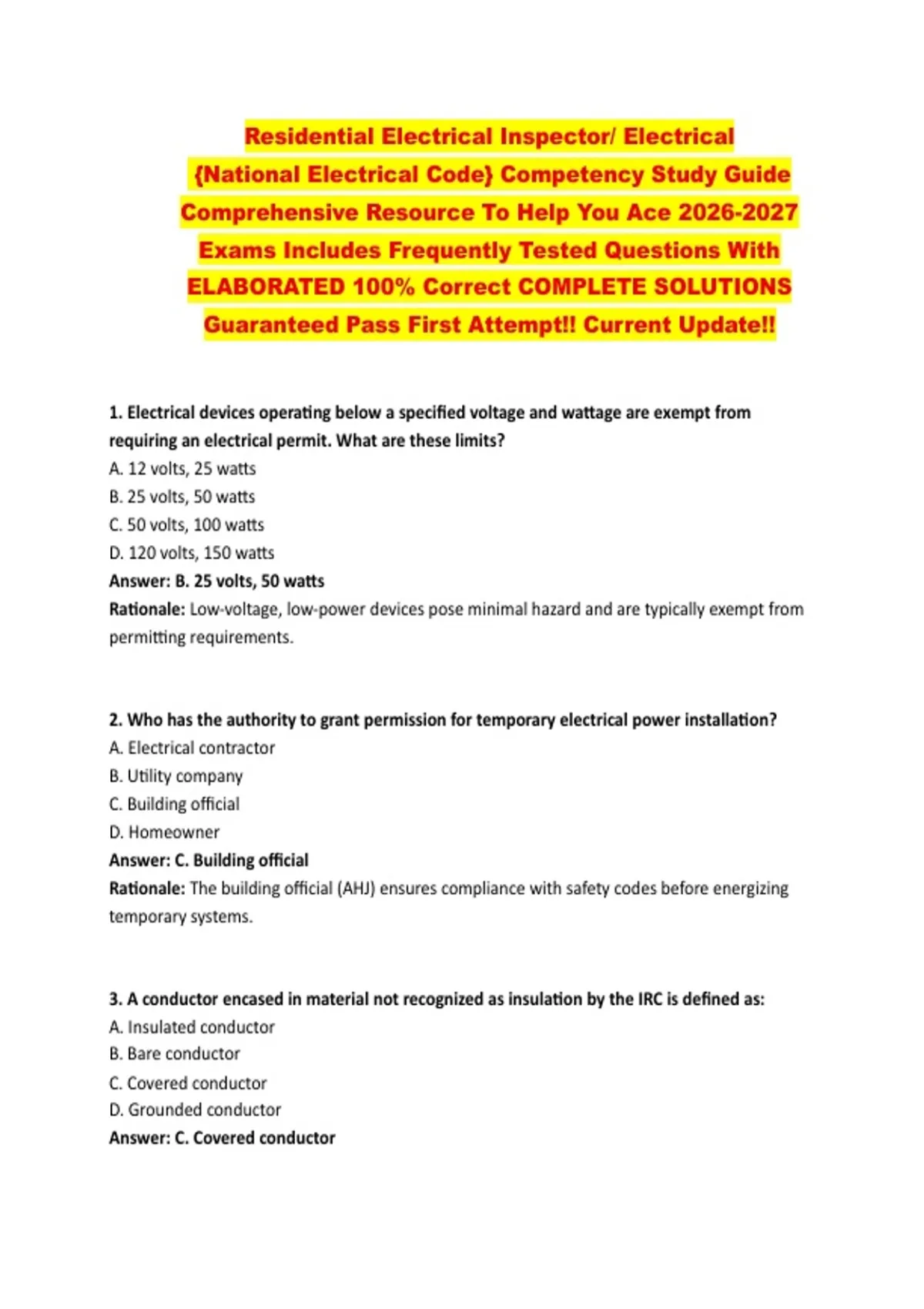

Residential Electrical Inspector/ Electrical
{National Electrical Code} Competency Study Guide
Comprehensive Resource To Help You Ace 2026-2027
Exams Includes Frequently Tested Questions With
ELABORATED 100% Correct COMPLETE SOLUTIONS
Guaranteed Pass First Attempt!! Current Update!!
1. Electrical devices operating below a specified voltage and wattage are exempt from
requiring an electrical permit. What are these limits?
A. 12 volts, 25 watts
B. 25 volts, 50 watts
C. 50 volts, 100 watts
D. 120 volts, 150 watts
Answer: B. 25 volts, 50 watts
Rationale: Low-voltage, low-power devices pose minimal hazard and are typically exempt from
permitting requirements.
2. Who has the authority to grant permission for temporary electrical power installation?
A. Electrical contractor
B. Utility company
C. Building official
D. Homeowner
Answer: C. Building official
Rationale: The building official (AHJ) ensures compliance with safety codes before energizing
temporary systems.
3. A conductor encased in material not recognized as insulation by the IRC is defined as:
A. Insulated conductor
B. Bare conductor
C. Covered conductor
D. Grounded conductor
Answer: C. Covered conductor
,Rationale: “Covered” means protected but not meeting formal insulation standards for
electrical safety.
4. Energized parts must be enclosed or guarded when operating at a minimum of:
A. 30 volts
B. 40 volts
C. 50 volts
D. 60 volts
Answer: C. 50 volts
Rationale: Voltages ≥50V are considered hazardous and require guarding to prevent accidental
contact.
5. What is the minimum free conductor length required at an outlet, junction box, or switch
point?
A. 4 inches
B. 5 inches
C. 6 inches
D. 8 inches
Answer: C. 6 inches
Rationale: Ensures sufficient length for safe splicing and device termination.
6. The minimum size for copper conductors used in feeders and branch circuits is:
A. No. 16 AWG
B. No. 14 AWG
C. No. 12 AWG
D. No. 10 AWG
Answer: B. No. 14 AWG
Rationale: NEC sets #14 AWG as the smallest allowable for general branch circuit conductors.
7. Overhead service conductors above residential driveways must maintain a minimum
vertical clearance of:
A. 10 feet
B. 12 feet
C. 15 feet
,D. 18 feet
Answer: B. 12 feet
Rationale: Provides safe clearance from vehicles and pedestrian activity.
8. Service-entrance cable supports must be installed within ______ of the service head and at
intervals not exceeding ______.
A. 6 in, 24 in
B. 12 in, 30 in
C. 18 in, 36 in
D. 24 in, 48 in
Answer: B. 12 inches, 30 inches
Rationale: Proper support prevents strain and mechanical damage to service conductors.
9. The minimum horizontal clearance between an open service conductor and the side of a
door is:
A. 2 feet
B. 3 feet
C. 4 feet
D. 5 feet
Answer: B. 3 feet
Rationale: Prevents accidental contact during entry/exit through doorways.
10. Open service conductors must be at least ______ above a roof with a 5:12 slope.
A. 2 feet
B. 3 feet
C. 4 feet
D. 6 feet
Answer: B. 3 feet
Rationale: Ensures safe clearance for maintenance and roof access.
11. True or False: Service disconnecting means may be installed in a bathroom.
A. True
B. False
, Answer: B. False
Rationale: Bathrooms are prohibited due to moisture and increased shock hazard.
12. A metal underground water pipe must be in contact with earth for at least:
A. 5 feet
B. 8 feet
C. 10 feet
D. 12 feet
Answer: C. 10 feet
Rationale: Ensures effective grounding contact with earth.
True or False. The calculated load of a feeder shall not be less than the sum of the loads on the
supplied branch circuits before any applicable demand factors have been applied. - Correct
Answer: False
Branch circuits are permitted to be rated for ___ amps when supplying lighting units or other
utilization equipment. - Correct Answer: Both 15 or 20
No. 14 copper conductors are permitted to have a maximum overcurrent protection device
rating of many amps? - Correct Answer: 15 amps
Which of the following is considered to be a standard ampere rating for fuses? 25amps,
55amps, 75amps, 95amps - Correct Answer: 25amps
What is the minimum size a circuit conductor is required to be when a branch circuit having
two or more outlets is rated at 20 amps? - Correct Answer: 12 AWG
Fixed utilization equipment shall be supplied with a minimum ___-ampere branch circuit. -
Correct Answer: 30
