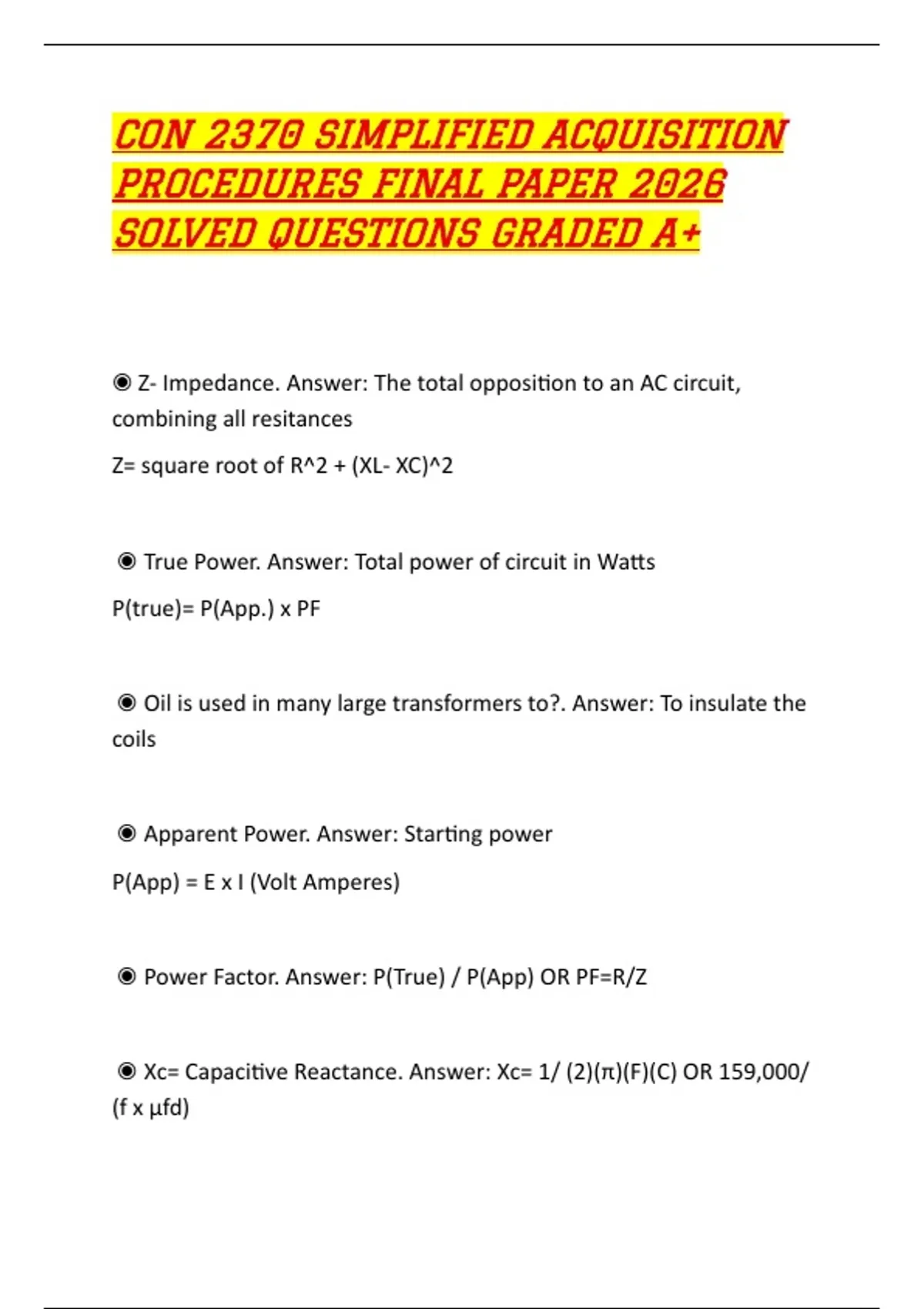

CON 2370 SIMPLIFIED ACQUISITION
PROCEDURES FINAL PAPER 2026
SOLVED QUESTIONS GRADED A+
◉ Z- Impedance. Answer: The total opposition to an AC circuit,
combining all resitances
Z= square root of R^2 + (XL- XC)^2
◉ True Power. Answer: Total power of circuit in Watts
P(true)= P(App.) x PF
◉ Oil is used in many large transformers to?. Answer: To insulate the
coils
◉ Apparent Power. Answer: Starting power
P(App) = E x I (Volt Amperes)
◉ Power Factor. Answer: P(True) / P(App) OR PF=R/Z
◉ Xc= Capacitive Reactance. Answer: Xc= 1/ (2)(π)(F)(C) OR 159,000/
(f x μfd)
,◉ Xl= inductive reactance. Answer: Xl= (2)(π)(F)(L)
◉ Circuit breakers used for switching shall be marked:. Answer: SWD
or HID
◉ An insulated wire shall have its AWG marking every _______ feet.
Answer: Two
◉ The cold resistance is ________ than the hot resistance.. Answer:
Less than
◉ Celsius to Fahrenheit. Answer: F = 9/5C + 32
◉ Wire Temp. Abbreviations. Answer: No H = 60° C
1 H = 75°C
2 H= 90°
◉ Voltage is _________ to the # of turns. Answer: Proportional
◉ To select the proper fuse, it is necessary to know the.... Answer:
voltage and amperage
◉ When under ordinary conditions, device boxes for concealed work
shall have a depth of not less than.... Answer: 1/2"
, ◉ The largest size conductor that may be used in under floor
raceway is.... Answer: that for which it is designed for
◉ A 277V light circuit may not be used to supply.... Answer: A
standard medium base
◉ To determine the insulation resistance of a newly installed wiring
system, best procedure is t megger test.... Answer: between the
wires and from each wire to the conduit
◉ Fixed appliance versus portable appliance ampacitiy ratings.
Answer: Fixed appliance= 50%
Portable appliance = 80%
◉ In a three wire attachment plug.... Answer: you must identify one
of the terminals.
◉ Fuse holders for current limiting type fuses shall prevent the
insertion of fuses that are.... Answer: 1) Smaller rating
2) non- current limiting type
AND
3) higher voltage
