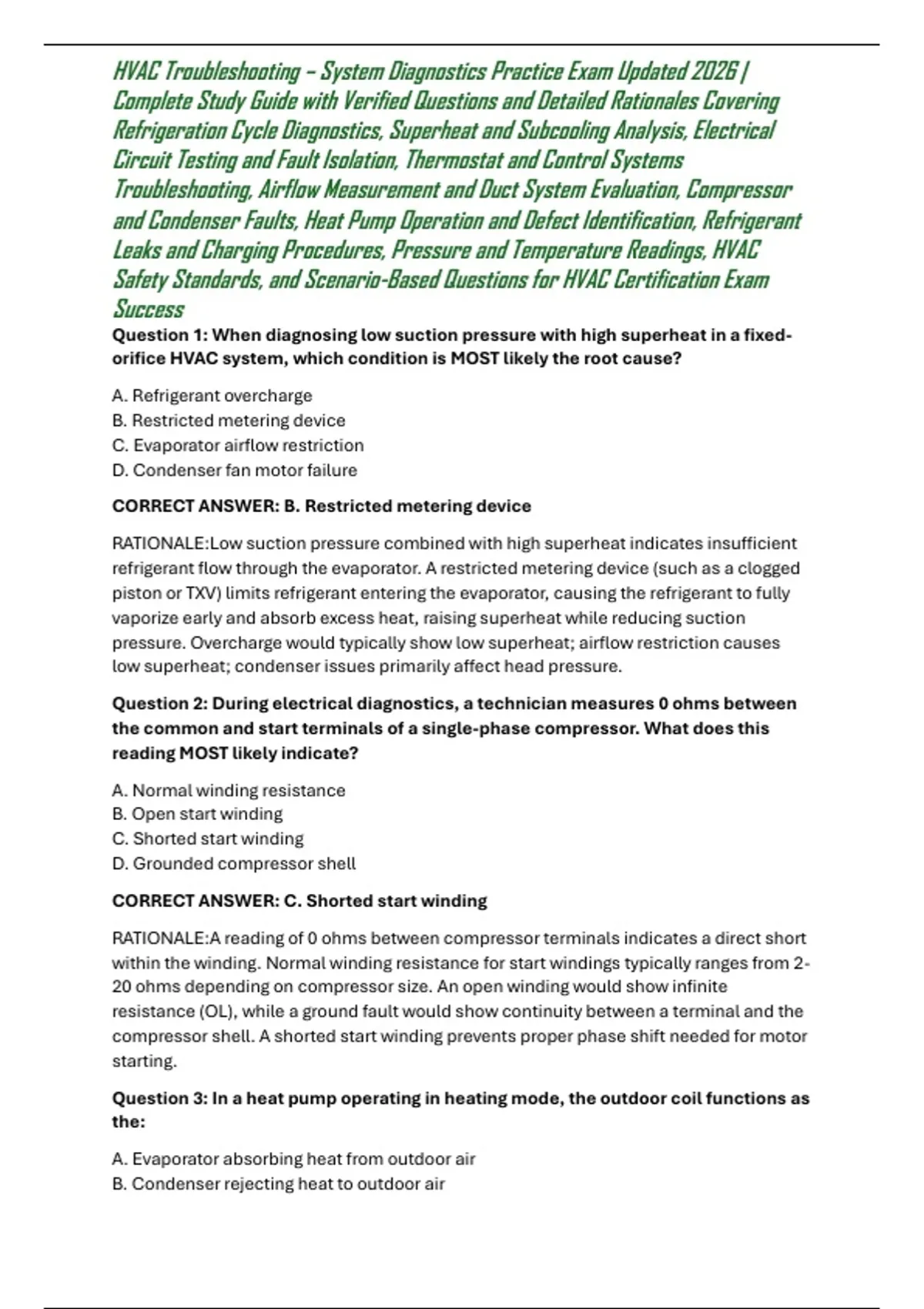

HVAC Troubleshooting – System Diagnostics Practice Exam Updated 2026 |
Complete Study Guide with Verified Questions and Detailed Rationales Covering
Refrigeration Cycle Diagnostics, Superheat and Subcooling Analysis, Electrical
Circuit Testing and Fault Isolation, Thermostat and Control Systems
Troubleshooting, Airflow Measurement and Duct System Evaluation, Compressor
and Condenser Faults, Heat Pump Operation and Defect Identification, Refrigerant
Leaks and Charging Procedures, Pressure and Temperature Readings, HVAC
Safety Standards, and Scenario-Based Questions for HVAC Certification Exam
Success
Question 1: When diagnosing low suction pressure with high superheat in a fixed-
orifice HVAC system, which condition is MOST likely the root cause?
A. Refrigerant overcharge
B. Restricted metering device
C. Evaporator airflow restriction
D. Condenser fan motor failure
CORRECT ANSWER: B. Restricted metering device
RATIONALE:Low suction pressure combined with high superheat indicates insufficient
refrigerant flow through the evaporator. A restricted metering device (such as a clogged
piston or TXV) limits refrigerant entering the evaporator, causing the refrigerant to fully
vaporize early and absorb excess heat, raising superheat while reducing suction
pressure. Overcharge would typically show low superheat; airflow restriction causes
low superheat; condenser issues primarily affect head pressure.
Question 2: During electrical diagnostics, a technician measures 0 ohms between
the common and start terminals of a single-phase compressor. What does this
reading MOST likely indicate?
A. Normal winding resistance
B. Open start winding
C. Shorted start winding
D. Grounded compressor shell
CORRECT ANSWER: C. Shorted start winding
RATIONALE:A reading of 0 ohms between compressor terminals indicates a direct short
within the winding. Normal winding resistance for start windings typically ranges from 2-
20 ohms depending on compressor size. An open winding would show infinite
resistance (OL), while a ground fault would show continuity between a terminal and the
compressor shell. A shorted start winding prevents proper phase shift needed for motor
starting.
Question 3: In a heat pump operating in heating mode, the outdoor coil functions as
the:
A. Evaporator absorbing heat from outdoor air
B. Condenser rejecting heat to outdoor air
,C. Receiver storing excess refrigerant
D. Accumulator preventing liquid slugging
CORRECT ANSWER: A. Evaporator absorbing heat from outdoor air
RATIONALE:During heating mode, the reversing valve redirects refrigerant flow so the
outdoor coil becomes the evaporator. The refrigerant absorbs heat from the outdoor
ambient air (even at low temperatures) and carries it indoors where it condenses in the
indoor coil to release heat. This fundamental heat pump principle allows efficient
heating by moving heat rather than generating it.
Question 4: Which diagnostic tool is MOST appropriate for verifying proper
combustion in a gas furnace?
A. Digital multimeter
B. Refrigerant manifold gauge set
C. Combustion analyzer
D. Psychrometer
CORRECT ANSWER: C. Combustion analyzer
RATIONALE:A combustion analyzer directly measures flue gas composition including
oxygen, carbon monoxide, carbon dioxide, and stack temperature to calculate
combustion efficiency and verify safe operation. Multimeters test electrical parameters;
gauge sets measure refrigerant pressures; psychrometers measure air humidity. Proper
combustion analysis is critical for safety, efficiency, and emissions compliance in fossil
fuel appliances.
Question 5: A technician observes frost forming only on the first few circuits of a
multi-circuit evaporator coil. This symptom MOST likely indicates:
A. Refrigerant undercharge
B. Uneven refrigerant distribution
C. Excessive superheat setting
D. Condenser subcooling too high
CORRECT ANSWER: B. Uneven refrigerant distribution
RATIONALE:Frost pattern irregularities across evaporator circuits typically signal
distributor tube issues, clogged circuit feeders, or improper TXV balancing causing
uneven refrigerant flow. Undercharge would cause uniform frost or no frost; superheat
settings affect overall coil performance; subcooling relates to liquid line conditions
before the metering device. Proper distribution ensures all coil surfaces participate in
heat transfer.
Question 6: When measuring three-phase voltage at a compressor contactor, one
leg reads 0V while the other two read 240V. What is the MOST probable cause?
A. Blown fuse on one phase
B. Normal voltage imbalance
,C. Grounded compressor winding
D. Faulty pressure switch
CORRECT ANSWER: A. Blown fuse on one phase
RATIONALE:A single-phase loss in a three-phase system (single-phasing) typically
results from a blown fuse, open contactor pole, or broken conductor on one leg. This
condition causes excessive current in the remaining phases, leading to compressor
overheating and potential burnout. Normal imbalance is typically <3%; grounded
windings would trip breakers; pressure switches don't affect individual phases.
Question 7: Which parameter is CRITICAL to verify BEFORE evacuating a
refrigeration system?
A. Compressor amp draw
B. System leak integrity
C. Thermostat calibration
D. Air filter cleanliness
CORRECT ANSWER: B. System leak integrity
RATIONALE:Evacuation removes non-condensables and moisture, but if leaks exist, air
and moisture will re-enter the system immediately after evacuation, causing acid
formation, copper plating, and compressor failure. Leak testing with nitrogen or
electronic detectors must precede evacuation. While other parameters matter for
system operation, leak integrity is fundamental to successful evacuation and long-term
reliability.
Question 8: In a TXV-equipped system, if the bulb is improperly insulated and
exposed to ambient air, what effect will this have on superheat control?
A. Superheat will decrease causing floodback
B. Superheat will increase causing compressor overheating
C. Superheat will oscillate uncontrollably
D. No effect as TXVs self-compensate
CORRECT ANSWER: A. Superheat will decrease causing floodback
RATIONALE:The TXV bulb senses evaporator outlet temperature. If uninsulated and
exposed to warmer ambient air, the bulb reads artificially high temperature, causing the
valve to open excessively and feed too much refrigerant. This reduces superheat,
potentially allowing liquid refrigerant to return to the compressor (floodback), causing
mechanical damage. Proper bulb installation with thermal paste and insulation is
critical for accurate control.
Question 9: During a performance check, a system shows normal suction pressure
but abnormally high discharge pressure. Which component should be inspected
FIRST?
, A. Evaporator fan motor
B. Condenser coil cleanliness
C. Liquid line filter-drier
D. Thermostatic expansion valve
CORRECT ANSWER: B. Condenser coil cleanliness
RATIONALE:High discharge pressure with normal suction pressure typically indicates
condenser heat rejection problems. Dirty coils, blocked airflow, or faulty condenser
fans reduce heat transfer, causing refrigerant to condense at higher
pressure/temperature. Evaporator issues would affect suction pressure; filter-driers
affect flow but rarely cause isolated high head pressure; TXV problems primarily impact
superheat and suction pressure.
Question 10: What is the PRIMARY purpose of measuring subcooling in the liquid
line?
A. To verify compressor lubrication
B. To confirm proper refrigerant charge in TXV systems
C. To calculate evaporator airflow CFM
D. To diagnose electrical phase imbalance
CORRECT ANSWER: B. To confirm proper refrigerant charge in TXV systems
RATIONALE:Subcooling (liquid refrigerant temperature below condensing temperature)
indicates the amount of liquid refrigerant stored in the condenser. In TXV systems,
proper subcooling (typically 8-14°F) ensures the metering device receives 100% liquid
refrigerant without flash gas. It's the primary charging method for TXV systems, while
superheat is used for fixed-orifice systems. Subcooling doesn't directly relate to
lubrication, airflow, or electrical diagnostics.
Question 11: A heat pump fails to defrost properly, with ice accumulating on the
outdoor coil. Which sensor failure is MOST likely responsible?
A. Indoor coil temperature sensor
B. Outdoor ambient temperature sensor
C. Defrost termination thermostat
D. Compressor discharge temperature sensor
CORRECT ANSWER: C. Defrost termination thermostat
RATIONALE:The defrost termination thermostat (or sensor) signals the control board
when the outdoor coil has warmed sufficiently to end defrost mode. If failed open,
defrost may terminate prematurely leaving ice; if failed closed, defrost may not initiate
or may run excessively. While ambient sensors influence defrost initiation timing,
termination control directly affects ice removal completion. Indoor sensors and
discharge sensors serve different control functions.
