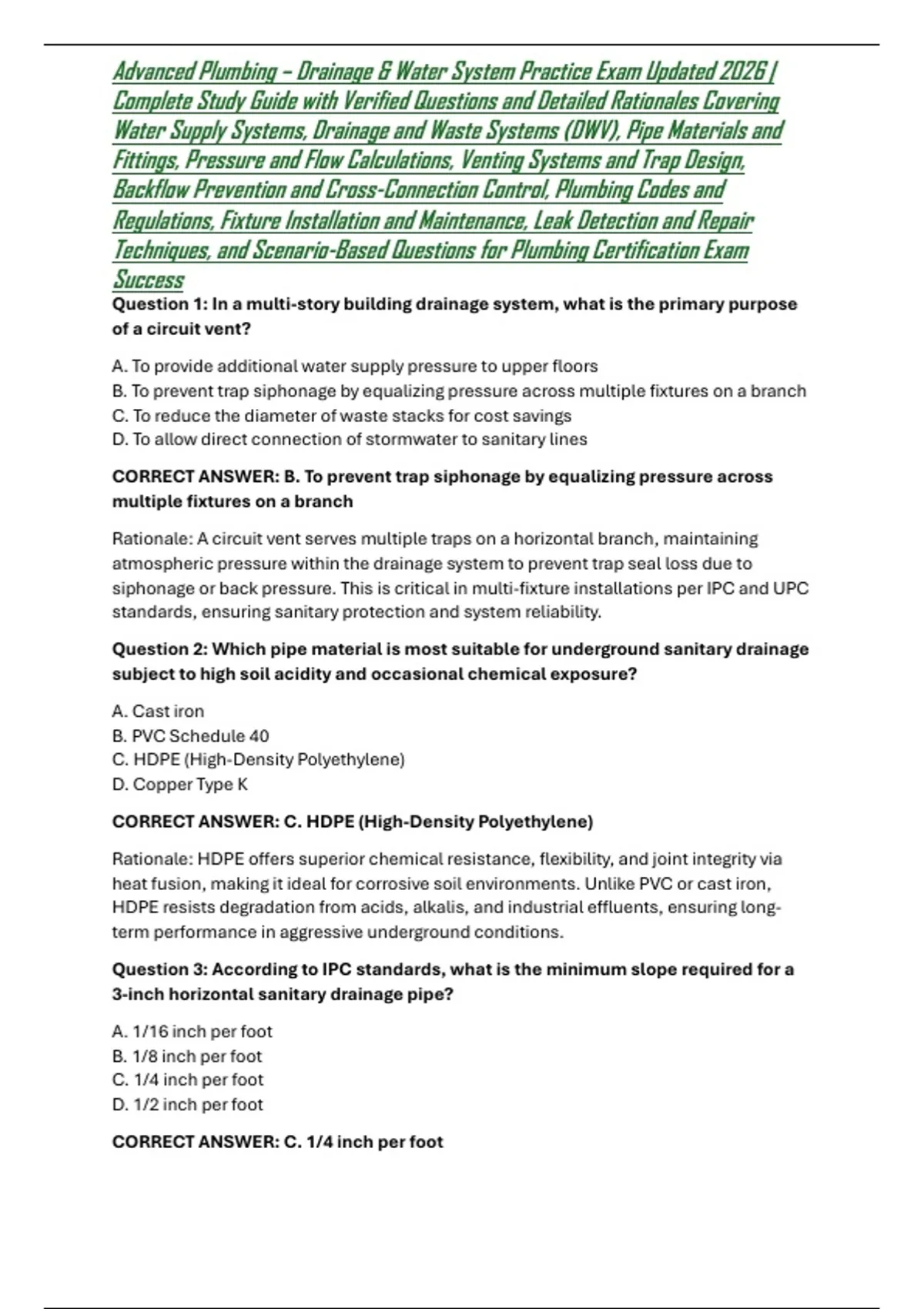

Advanced Plumbing – Drainage & Water System Practice Exam Updated 2026 |
Complete Study Guide with Verified Questions and Detailed Rationales Covering
Water Supply Systems, Drainage and Waste Systems (DWV), Pipe Materials and
Fittings, Pressure and Flow Calculations, Venting Systems and Trap Design,
Backflow Prevention and Cross-Connection Control, Plumbing Codes and
Regulations, Fixture Installation and Maintenance, Leak Detection and Repair
Techniques, and Scenario-Based Questions for Plumbing Certification Exam
Success
Question 1: In a multi-story building drainage system, what is the primary purpose
of a circuit vent?
A. To provide additional water supply pressure to upper floors
B. To prevent trap siphonage by equalizing pressure across multiple fixtures on a branch
C. To reduce the diameter of waste stacks for cost savings
D. To allow direct connection of stormwater to sanitary lines
CORRECT ANSWER: B. To prevent trap siphonage by equalizing pressure across
multiple fixtures on a branch
Rationale: A circuit vent serves multiple traps on a horizontal branch, maintaining
atmospheric pressure within the drainage system to prevent trap seal loss due to
siphonage or back pressure. This is critical in multi-fixture installations per IPC and UPC
standards, ensuring sanitary protection and system reliability.
Question 2: Which pipe material is most suitable for underground sanitary drainage
subject to high soil acidity and occasional chemical exposure?
A. Cast iron
B. PVC Schedule 40
C. HDPE (High-Density Polyethylene)
D. Copper Type K
CORRECT ANSWER: C. HDPE (High-Density Polyethylene)
Rationale: HDPE offers superior chemical resistance, flexibility, and joint integrity via
heat fusion, making it ideal for corrosive soil environments. Unlike PVC or cast iron,
HDPE resists degradation from acids, alkalis, and industrial effluents, ensuring long-
term performance in aggressive underground conditions.
Question 3: According to IPC standards, what is the minimum slope required for a
3-inch horizontal sanitary drainage pipe?
A. 1/16 inch per foot
B. 1/8 inch per foot
C. 1/4 inch per foot
D. 1/2 inch per foot
CORRECT ANSWER: C. 1/4 inch per foot
,Rationale: IPC Table 704.1 specifies a minimum slope of 1/4 inch per foot for 3-inch
horizontal drainage piping to maintain self-scouring velocity (typically 2 ft/sec) while
preventing sediment deposition and ensuring efficient waste transport without
excessive water usage.
Question 4: What is the primary function of a backwater valve in a building drainage
system?
A. To regulate water pressure entering the building
B. To prevent reverse flow from the public sewer into the building during surcharge
events
C. To filter solids from wastewater before discharge
D. To vent negative pressure in the drainage stack
CORRECT ANSWER: B. To prevent reverse flow from the public sewer into the
building during surcharge events
Rationale: Backwater valves are check valves installed in building drains to block
sewage backflow during municipal sewer overloads or flooding. They are essential in
low-lying areas or combined sewer systems to protect interior fixtures from
contamination and property damage.
Question 5: In hydraulic design of water distribution systems, what does the term
"fixture unit" primarily represent?
A. The physical weight of a plumbing fixture
B. A weighted measure of a fixture's water demand and discharge characteristics
C. The number of fixtures connected to a single branch
D. The pressure loss across a fixture's supply valve
CORRECT ANSWER: B. A weighted measure of a fixture's water demand and
discharge characteristics
Rationale: Fixture units (FU) quantify both supply demand (water supply fixture units,
WSFU) and drainage load (drainage fixture units, DFU) based on flow rate, duration, and
frequency of use. This standardized metric enables accurate pipe sizing and system
balancing per plumbing codes.
Question 6: Which venting configuration is required when a fixture trap is located
more than 6 feet from its vent stack termination?
A. Individual vent
B. Common vent
C. Wet vent
D. Remote vent with increased diameter
CORRECT ANSWER: A. Individual vent
Rationale: IPC Section 905.1 limits the trap-to-vent distance based on pipe diameter;
exceeding this requires an individual vent directly connected to the trap arm to prevent
,seal depletion. For most residential fixtures, 6 feet is the maximum for 1¼-inch arms
without additional venting.
Question 7: What is the critical velocity threshold in potable water piping to avoid
water hammer and pipe erosion?
A. 3 feet per second
B. 5 feet per second
C. 8 feet per second
D. 10 feet per second
CORRECT ANSWER: B. 5 feet per second
Rationale: Industry standards (AWWA, ASPE) recommend limiting water velocity to 5 fps
in building distribution systems to minimize water hammer risks, reduce pipe wear, and
control noise. Higher velocities increase kinetic energy, exacerbating pressure surges
during valve closure.
Question 8: Which device is specifically designed to prevent backflow due to
backsiphonage in a high-hazard cross-connection?
A. Atmospheric vacuum breaker
B. Pressure-type vacuum breaker
C. Reduced pressure zone assembly (RPZ)
D. Double check valve assembly
CORRECT ANSWER: C. Reduced pressure zone assembly (RPZ)
Rationale: RPZ assemblies provide the highest level of backflow protection for high-
hazard connections (e.g., chemical injection, medical facilities). They feature two
independent check valves with a monitored relief valve between them, discharging to
atmosphere if either check fails, ensuring zero contamination risk.
Question 9: In a gravity sanitary sewer system, what is the primary consequence of
installing a pipe with insufficient slope?
A. Increased flow velocity causing pipe abrasion
B. Solids deposition leading to blockages and hydrogen sulfide generation
C. Excessive venting requirements
D. Reduced fixture unit capacity
CORRECT ANSWER: B. Solids deposition leading to blockages and hydrogen sulfide
generation
Rationale: Inadequate slope reduces flow velocity below the self-cleansing threshold
(~2 ft/sec), allowing solids to settle. Anaerobic decomposition of settled organic matter
produces hydrogen sulfide, which corrodes concrete and metal pipes and creates odor
and safety hazards.
, Question 10: Which testing method is required for newly installed sanitary drainage
piping before concealment?
A. Hydrostatic pressure test at 10 psi for 15 minutes
B. Air test at 5 psi for 15 minutes with no pressure drop
C. Smoke test for 30 minutes
D. Dye test with fluorescent tracer
CORRECT ANSWER: B. Air test at 5 psi for 15 minutes with no pressure drop
Rationale: IPC Section 312.3 mandates air or water testing for drainage systems. Air
testing at 5 psi for 15 minutes is common for DWV systems; no pressure drop confirms
joint integrity and absence of leaks before walls or floors are closed, ensuring code
compliance and system reliability.
Question 11: What is the minimum air gap required for an indirect waste receptor
discharging from a commercial food preparation sink?
A. 1 inch
B. 2 inches
C. Twice the diameter of the indirect waste pipe, minimum 1 inch
D. No air gap required if a trap is installed
CORRECT ANSWER: C. Twice the diameter of the indirect waste pipe, minimum 1
inch
Rationale: IPC Section 802.1.2 requires an air gap of at least twice the effective opening
diameter (minimum 1 inch) for indirect wastes to prevent back-siphonage
contamination. This is critical in food service where wastewater may contain pathogens
or chemicals.
Question 12: Which factor is most critical when sizing a grease interceptor for a
commercial kitchen?
A. Total fixture unit load
B. Peak flow rate and grease retention time
C. Building height and water pressure
D. Type of venting system
CORRECT ANSWER: B. Peak flow rate and grease retention time
Rationale: Grease interceptors are sized based on flow rate (gpm) and required
retention time (typically 30 minutes) to allow fats, oils, and grease (FOG) to cool,
separate, and float. Undersizing leads to FOG discharge into sewers, causing blockages
and regulatory violations.
Question 13: In a high-rise building, why are pressure-reducing valves (PRVs)
typically installed on water supply risers?
