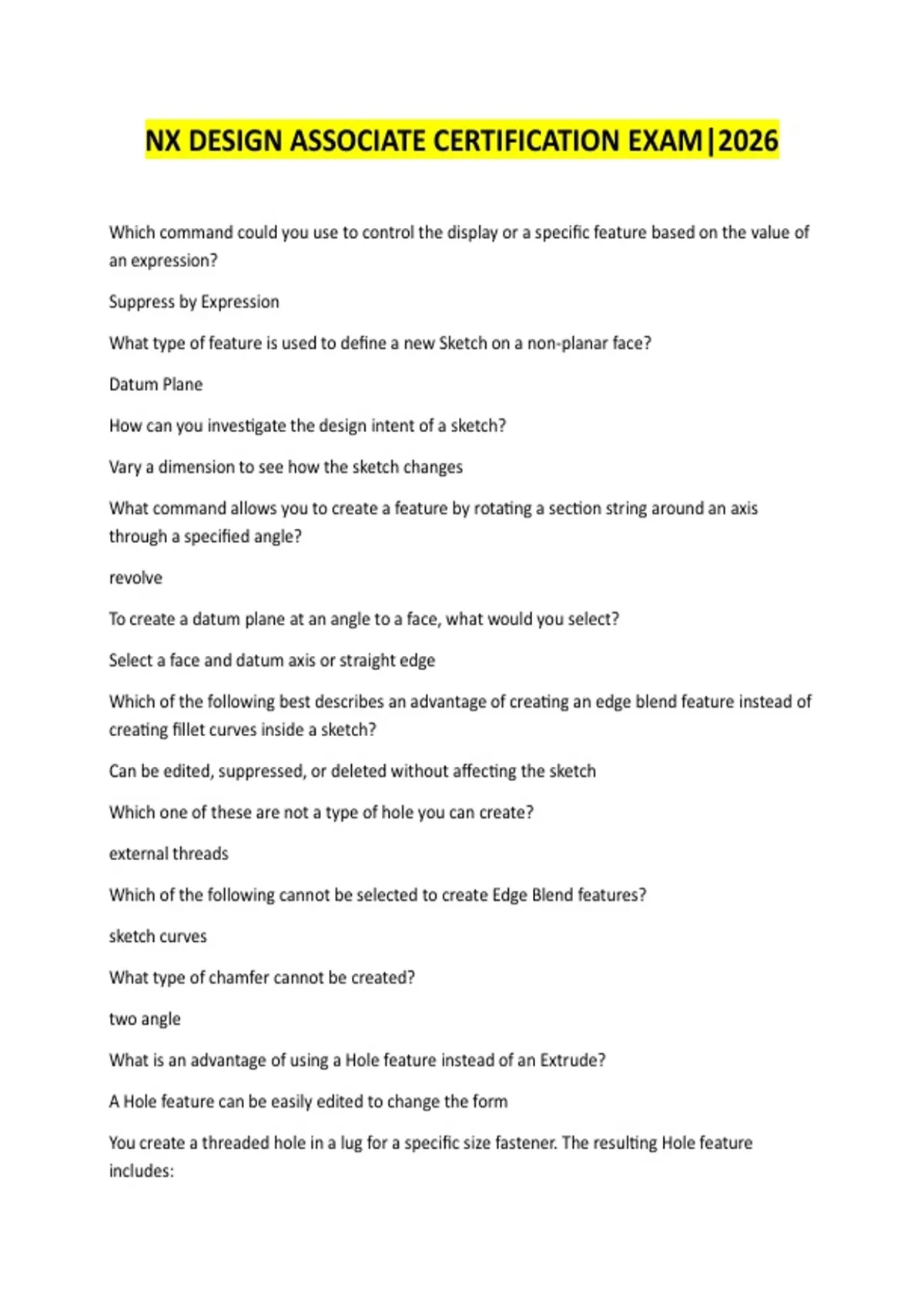

NX DESIGN ASSOCIATE CERTIFICATION EXAM|2026
Which command could you use to control the display or a specific feature based on the value of
an expression?
Suppress by Expression
What type of feature is used to define a new Sketch on a non-planar face?
Datum Plane
How can you inves!gate the design intent of a sketch?
Vary a dimension to see how the sketch changes
What command allows you to create a feature by rota!ng a sec!on string around an axis
through a specified angle?
revolve
To create a datum plane at an angle to a face, what would you select?
Select a face and datum axis or straight edge
Which of the following best describes an advantage of crea!ng an edge blend feature instead of
crea!ng fillet curves inside a sketch?
Can be edited, suppressed, or deleted without affec!ng the sketch
Which one of these are not a type of hole you can create?
external threads
Which of the following cannot be selected to create Edge Blend features?
sketch curves
What type of chamfer cannot be created?
two angle
What is an advantage of using a Hole feature instead of an Extrude?
A Hole feature can be easily edited to change the form
You create a threaded hole in a lug for a specific size fastener. The resul!ng Hole feature
includes:
, A single feature The hole, threads, and the entry and exit chamfers
Why would you use a separate Thread command?
To create external threads
You can create a chamfer feature or chamfer curves inside a sketch. What is a poten!al
advantage of crea!ng chamfers in a sketch?
Your model history will have fewer features
Why would you want to deac!vate the Timestamp Order op!on in the Part Navigator?
To view solid bodies in the model
When selec!ng a feature in the Part Navigator, what do the colors of the text above and below
the selected Feature mean?
The Parent- and Child rela!onships
When selec!ng a feature in the Part Navigator what color does the text of its children features
then become?
blue
In the Part Navigator how can you list the parameters, expressions, and values of a feature
without using the Show Dimensions command?
Open the Details Group
A3er using the Show Dimensions command on a sketch how do you erase the temporarily-
displayed dimensions from the graphics window?
Use the Refresh command
By default, what happens to the child features when their parent feature is deleted?
The child features are automa!cally deleted
Which Synchronous Modeling command can be used to change the radii of this feature
regardless of the feature history?
Resize Blend
Which Synchronous Modeling command can be used to transform faces in a linear direc!on,
angular direc!on, or from point to point?
Move Face
