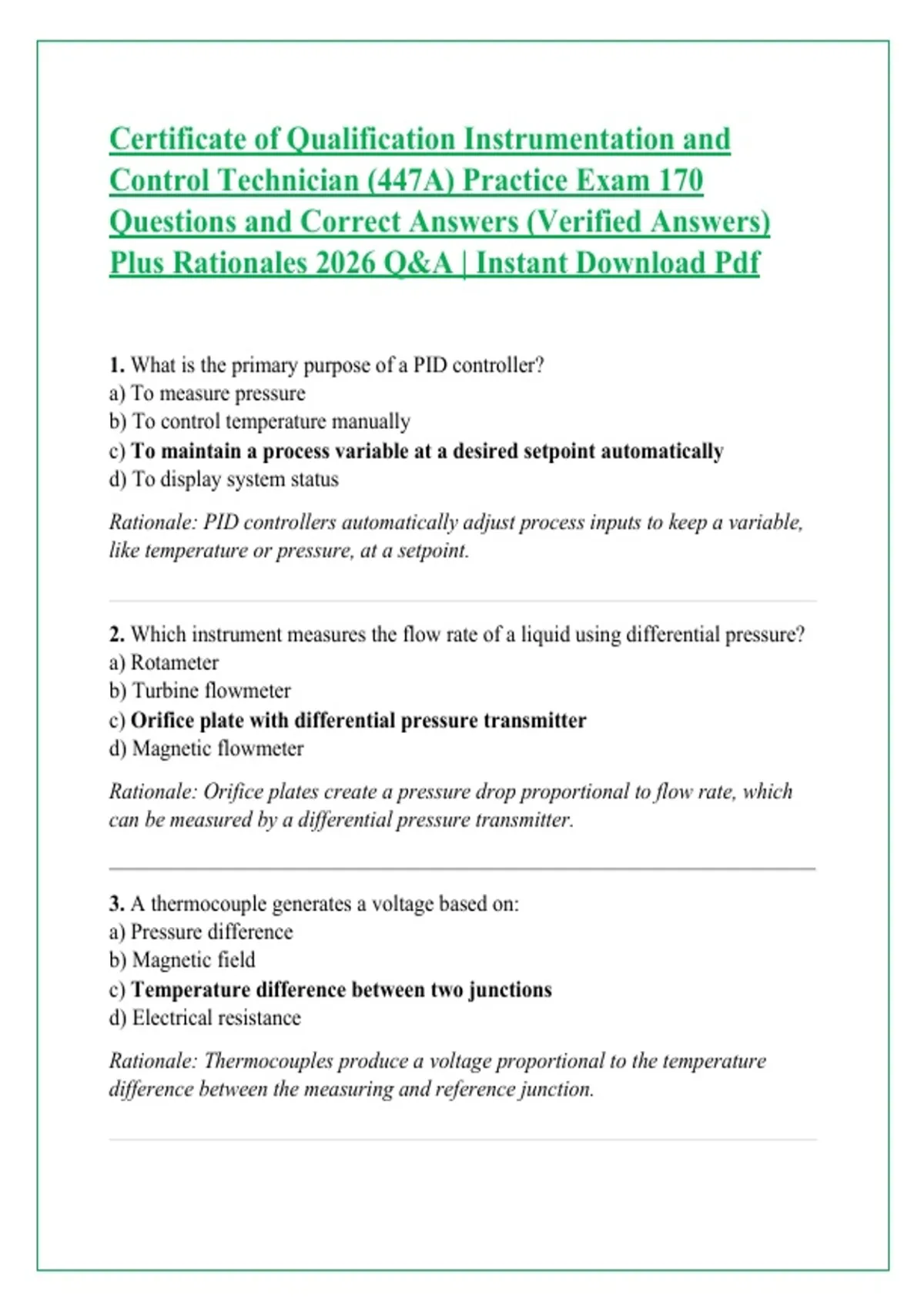

Certificate of Qualification Instrumentation and
Control Technician (447A) Practice Exam 170
Questions and Correct Answers (Verified Answers)
Plus Rationales 2026 Q&A | Instant Download Pdf
1. What is the primary purpose of a PID controller?
a) To measure pressure
b) To control temperature manually
c) To maintain a process variable at a desired setpoint automatically
d) To display system status
Rationale: PID controllers automatically adjust process inputs to keep a variable,
like temperature or pressure, at a setpoint.
2. Which instrument measures the flow rate of a liquid using differential pressure?
a) Rotameter
b) Turbine flowmeter
c) Orifice plate with differential pressure transmitter
d) Magnetic flowmeter
Rationale: Orifice plates create a pressure drop proportional to flow rate, which
can be measured by a differential pressure transmitter.
3. A thermocouple generates a voltage based on:
a) Pressure difference
b) Magnetic field
c) Temperature difference between two junctions
d) Electrical resistance
Rationale: Thermocouples produce a voltage proportional to the temperature
difference between the measuring and reference junction.
,4. Which of the following is a standard signal for analog instrumentation in
Canada?
a) 0–5 V
b) 4–20 mA
c) 1–10 A
d) 4–20 mA
Rationale: 4–20 mA is a widely used industrial standard for transmitting analog
signals over long distances.
5. What type of valve is typically used for precise flow control?
a) Gate valve
b) Ball valve
c) Globe valve
d) Check valve
Rationale: Globe valves allow fine control of flow due to their linear or equal
percentage characteristics.
6. What is the main function of a PLC in a control system?
a) Display data
b) Measure pressure
c) Automate control of processes
d) Convert signals
Rationale: PLCs execute programmed logic to automate processes, replacing
manual control.
7. Which sensor is commonly used to measure liquid level?
a) Thermistor
b) Capacitance level sensor
c) Strain gauge
d) Tachometer
Rationale: Capacitance level sensors detect level changes by measuring the
change in capacitance between electrodes.
,8. What is the purpose of a Hart protocol in instrumentation?
a) Signal amplification
b) Digital communication over analog lines
c) Mechanical actuation
d) Temperature calibration
Rationale: HART allows digital data and diagnostics to be transmitted over the
same 4–20 mA loop.
9. Which type of transmitter is most suitable for corrosive liquids?
a) Electromagnetic
b) Orifice
c) Magnetic flowmeter
d) Venturi
Rationale: Magnetic flowmeters have no moving parts and are compatible with
corrosive fluids.
10. In a control loop, the “process variable” refers to:
a) Desired setpoint
b) Controller output
c) Measured value of the process
d) Final control element
Rationale: The process variable is the actual value being measured and controlled
(e.g., temperature, pressure).
11. What does RTD stand for?
a) Resistance Temperature Detector
b) Rapid Thermal Device
c) Real-Time Data logger
d) Rotary Temperature Dial
, Answer: a) Resistance Temperature Detector
Rationale: RTD is a temperature sensor that changes resistance with temperature,
typically using platinum.
12. Which device converts a pneumatic signal to an electrical signal?
a) I/P converter
b) P/I converter
c) A/D converter
d) D/A converter
Answer: b) P/I converter
*Rationale: A P/I converter converts a pneumatic input (e.g., 3-15 psi) to an analog
electrical output (e.g., 4-20 mA).*
13. A 4-20 mA signal representing 0-100% flow indicates 75% flow. What is the
current?
a) 8 mA
b) 12 mA
c) 16 mA
d) 20 mA
Answer: c) 16 mA
*Rationale: 4 mA = 0%, 20 mA = 100%. Each 1% = 0.16 mA. 75% × 0.16 = 12
mA + 4 mA = 16 mA.*
14. Which of the following is a final control element?
a) Pressure transmitter
b) RTD
c) Control valve
d) Flow switch
Answer: c) Control valve
Rationale: The final control element is the device that physically adjusts the
process, such as a valve or variable speed drive.
