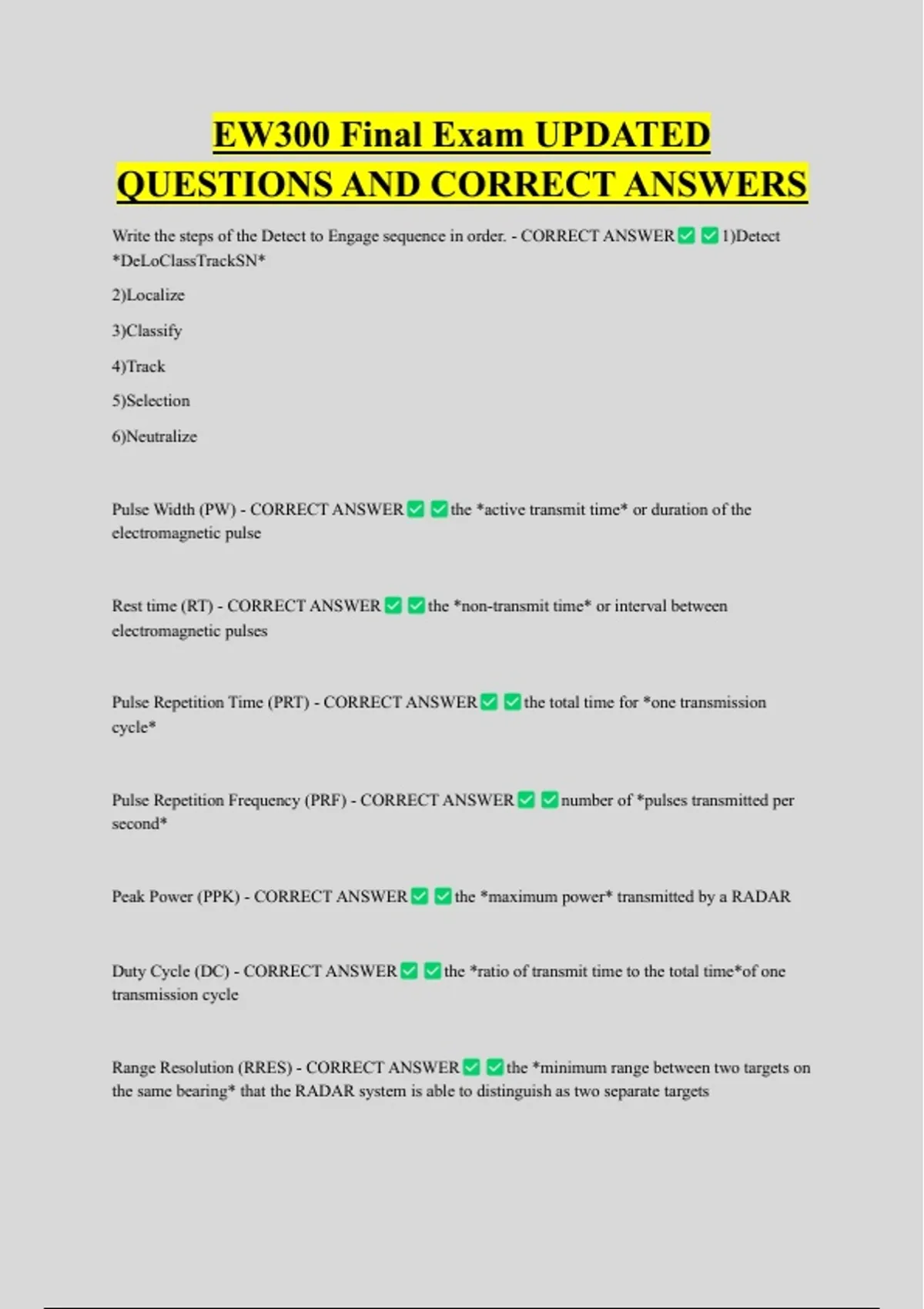

EW300 Final Exam UPDATED
QUESTIONS AND CORRECT ANSWERS
Write the steps of the Detect to Engage sequence in order. - CORRECT ANSWER 1)Detect
*DeLoClassTrackSN*
2)Localize
3)Classify
4)Track
5)Selection
6)Neutralize
Pulse Width (PW) - CORRECT ANSWER the *active transmit time* or duration of the
electromagnetic pulse
Rest time (RT) - CORRECT ANSWER the *non-transmit time* or interval between
electromagnetic pulses
Pulse Repetition Time (PRT) - CORRECT ANSWER the total time for *one transmission
cycle*
Pulse Repetition Frequency (PRF) - CORRECT ANSWER number of *pulses transmitted per
second*
Peak Power (PPK) - CORRECT ANSWER the *maximum power* transmitted by a RADAR
Duty Cycle (DC) - CORRECT ANSWER the *ratio of transmit time to the total time*of one
transmission cycle
Range Resolution (RRES) - CORRECT ANSWER the *minimum range between two targets on
the same bearing* that the RADAR system is able to distinguish as two separate targets
,Cross Range Resolution (RCROSS) - CORRECT ANSWER the *minimum angular resolution*
between two targets of the same range which the RADAR system is able to distinguish as two targets
Which of the following changes would result in a decrease in maximum radar range (Rmax)? -
CORRECT ANSWER -Reduced *RADAR cross section* of target
-Widening *beamwidth* (azimuth or elevation)
How does a Track While Scan (TWS) system respond when a target fails to appear in an established
tracking gate ? - CORRECT ANSWER *Establish a turn gate* around the last known position
of the target.
Reflection - CORRECT ANSWER When an EM wave strikes a conductive surface and
*bounces off* it at an angle equal to the incident angle.
Diffraction - CORRECT ANSWER The tendency of EM waves to *spread out, or bend *around
objects.
Refraction - CORRECT ANSWER When an EM wave passes into a *medium with a different
SPEED of propagation*, and the EM wave bends towards/into the *medium of SLOWER* wave
propagation.
Interference - CORRECT ANSWER The property by which EM waves *superimpose and their
energies* combine when overlapping.
Basic Pulse RADAR - CORRECT ANSWER Detects bearing and range to target using a
*single antenna*
Basic Contiunuous Wave RADAR - CORRECT ANSWER Detects bearing and *relative
velocity* of target using *2 antennas*.
-Receiver
-*Two Antennas*
-*Mixer*
-Transmitter
, Pulse Doppler RADAR - CORRECT ANSWER Detects *bearing, range, and relative velocity;
ALL 3* of a target using a mixer and 1 antenna.
Frequency Modulated Continuous Wave RADAR (FMCW) - CORRECT
ANSWER Determines target bearing, relative velocity, and range with 2 anttenas *and
changing frequency* over a given time period.
Put the following "gates" in the order used by a track-while-scan radar during a normal tracking
sequence: - CORRECT ANSWER 1)*Acquisition* gate
2)Tracking gate
3)Turn gate -----*R before U*
Beamforming can be achieved by which two means? - CORRECT ANSWER 1)quasi-optical
reflectors
2)antenna array
Electromagnetic wave energy is attenuated due to - CORRECT ANSWER 1)Spreading
2)Scattering
3)Absorption
What type of interference occurs when overlapping EM waves have 0 degrees of phase difference
between them? - CORRECT ANSWER Constructive
The radar cross section of a target is dependent upon: - CORRECT ANSWER 1)Size
2)shape
3)construction *material *
4)*aspect angle* of the target.
Pulse Compression - CORRECT ANSWER is a *signal processing technique* in which the
receiver is able to resolve two or more targets with overlapping returns down the same bearing but
differ in range by varying the carrier frequency.
