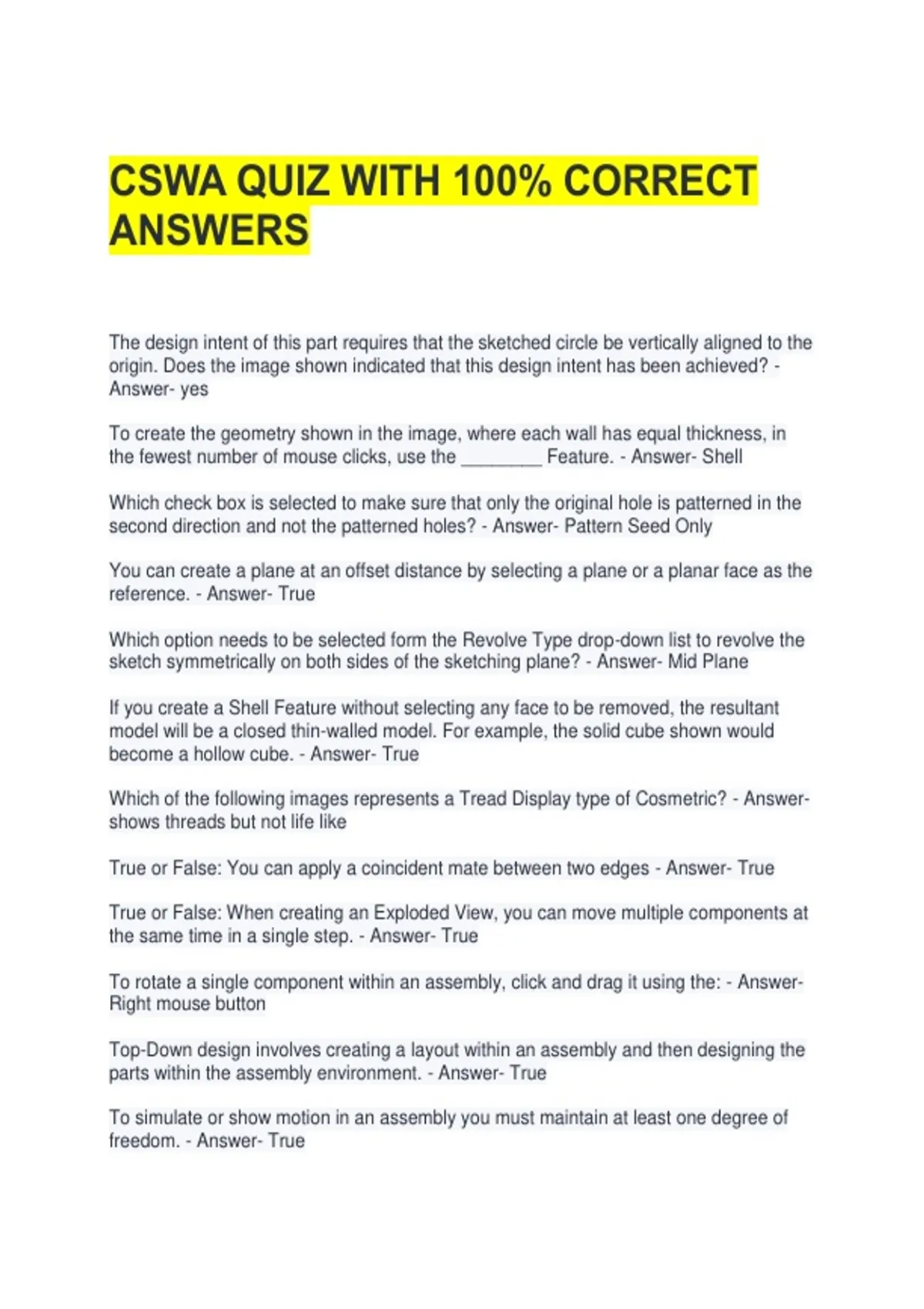

CSWA QUIZ WITH 100% CORRECT
ANSWERS
The design intent of this part requires that the sketched circle be vertically aligned to the
origin. Does the image shown indicated that this design intent has been achieved? -
Answer- yes
To create the geometry shown in the image, where each wall has equal thickness, in
the fewest number of mouse clicks, use the ________ Feature. - Answer- Shell
Which check box is selected to make sure that only the original hole is patterned in the
second direction and not the patterned holes? - Answer- Pattern Seed Only
You can create a plane at an offset distance by selecting a plane or a planar face as the
reference. - Answer- True
Which option needs to be selected form the Revolve Type drop-down list to revolve the
sketch symmetrically on both sides of the sketching plane? - Answer- Mid Plane
If you create a Shell Feature without selecting any face to be removed, the resultant
model will be a closed thin-walled model. For example, the solid cube shown would
become a hollow cube. - Answer- True
Which of the following images represents a Tread Display type of Cosmetric? - Answer-
shows threads but not life like
True or False: You can apply a coincident mate between two edges - Answer- True
True or False: When creating an Exploded View, you can move multiple components at
the same time in a single step. - Answer- True
To rotate a single component within an assembly, click and drag it using the: - Answer-
Right mouse button
Top-Down design involves creating a layout within an assembly and then designing the
parts within the assembly environment. - Answer- True
To simulate or show motion in an assembly you must maintain at least one degree of
freedom. - Answer- True
ANSWERS
The design intent of this part requires that the sketched circle be vertically aligned to the
origin. Does the image shown indicated that this design intent has been achieved? -
Answer- yes
To create the geometry shown in the image, where each wall has equal thickness, in
the fewest number of mouse clicks, use the ________ Feature. - Answer- Shell
Which check box is selected to make sure that only the original hole is patterned in the
second direction and not the patterned holes? - Answer- Pattern Seed Only
You can create a plane at an offset distance by selecting a plane or a planar face as the
reference. - Answer- True
Which option needs to be selected form the Revolve Type drop-down list to revolve the
sketch symmetrically on both sides of the sketching plane? - Answer- Mid Plane
If you create a Shell Feature without selecting any face to be removed, the resultant
model will be a closed thin-walled model. For example, the solid cube shown would
become a hollow cube. - Answer- True
Which of the following images represents a Tread Display type of Cosmetric? - Answer-
shows threads but not life like
True or False: You can apply a coincident mate between two edges - Answer- True
True or False: When creating an Exploded View, you can move multiple components at
the same time in a single step. - Answer- True
To rotate a single component within an assembly, click and drag it using the: - Answer-
Right mouse button
Top-Down design involves creating a layout within an assembly and then designing the
parts within the assembly environment. - Answer- True
To simulate or show motion in an assembly you must maintain at least one degree of
freedom. - Answer- True
