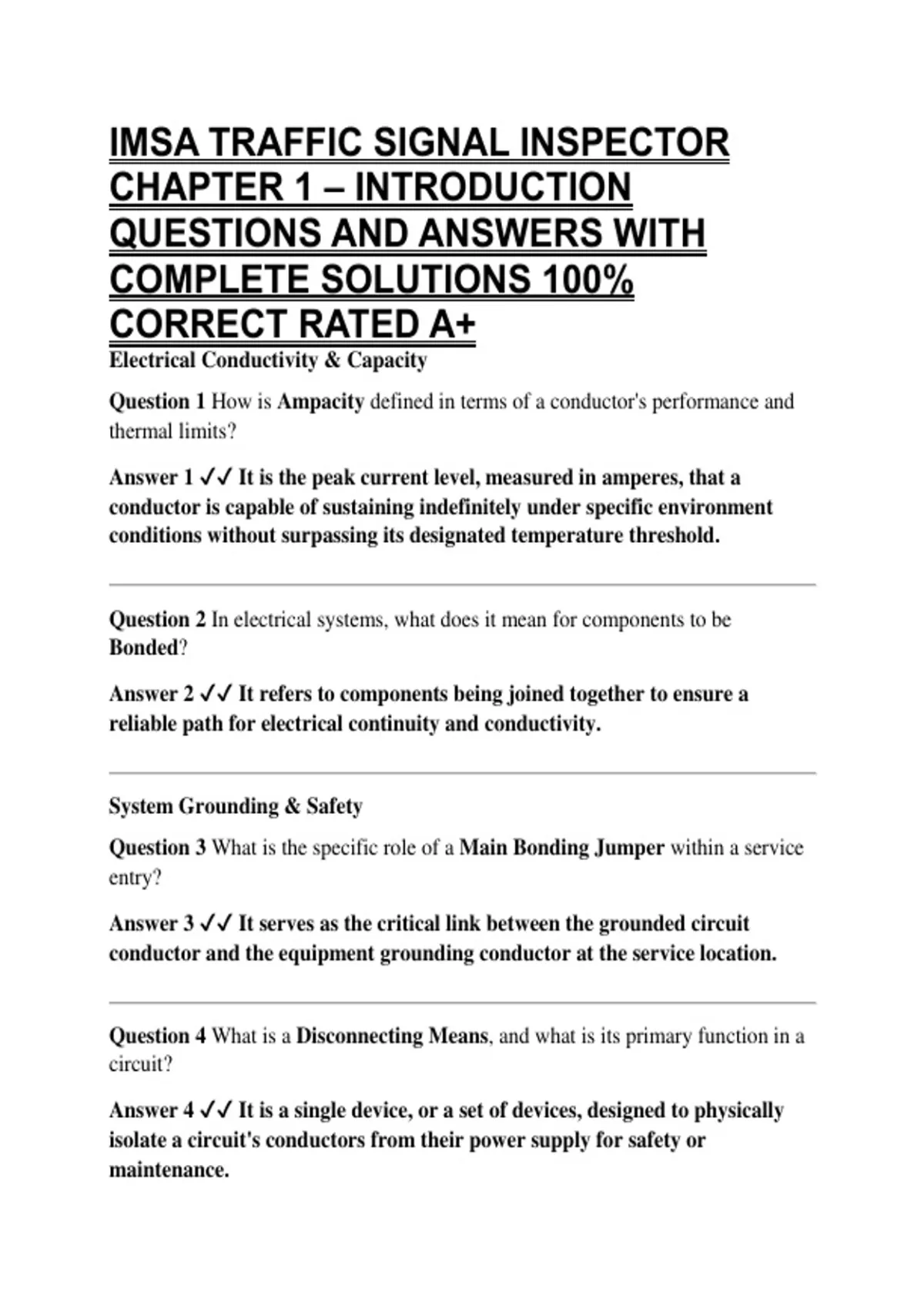

IMSA TRAFFIC SIGNAL INSPECTOR
CHAPTER 1 – INTRODUCTION
QUESTIONS AND ANSWERS WITH
COMPLETE SOLUTIONS 100%
CORRECT RATED A+
Electrical Conductivity & Capacity
Question 1 How is Ampacity defined in terms of a conductor's performance and
thermal limits?
Answer 1 ✔✔ It is the peak current level, measured in amperes, that a
conductor is capable of sustaining indefinitely under specific environment
conditions without surpassing its designated temperature threshold.
Question 2 In electrical systems, what does it mean for components to be
Bonded?
Answer 2 ✔✔ It refers to components being joined together to ensure a
reliable path for electrical continuity and conductivity.
System Grounding & Safety
Question 3 What is the specific role of a Main Bonding Jumper within a service
entry?
Answer 3 ✔✔ It serves as the critical link between the grounded circuit
conductor and the equipment grounding conductor at the service location.
Question 4 What is a Disconnecting Means, and what is its primary function in a
circuit?
Answer 4 ✔✔ It is a single device, or a set of devices, designed to physically
isolate a circuit's conductors from their power supply for safety or
maintenance.
, Effective Ground-Fault Current Path -ANSWER ✔✔Intentionally constructed,
low-impedance path intended to carry current under ground-fault conditions from
the point of s ground-fault in the system to the electrical supply source that
facilitates the operation of the overcurrent device(s) of ground fault detectors on
high-impedance grounded systems.
Equipment -ANSWER ✔✔General term: fittings, devices, appliances, luminaries,
apparatus, machinery, ect. in connection with an electrical installation.
Equipment Grounding Conductor (EGC) -ANSWER ✔✔The conductive path(s)
installed to connect normally non-current carrying metal parts of equipment
together and to the system grounded conductor to the grounding electrode
conductor, or both.
Grounded (grounding) -ANSWER ✔✔Connected to a ground or a conductive body
that extends to the ground connection.
Grounded Conductor -ANSWER ✔✔What is commonly referred to as the "neutral
wire" the NEC calls this the --------- conductor. Usually white in color.
Grounding Conductor -ANSWER ✔✔What is usually referred to as the "ground
wire", the NEC and CEC call the --------- conductor. This wire is usually green or
bare.
Grounding Electrode -ANSWER ✔✔A conducting object through which a direct
connection with Earth is established.
