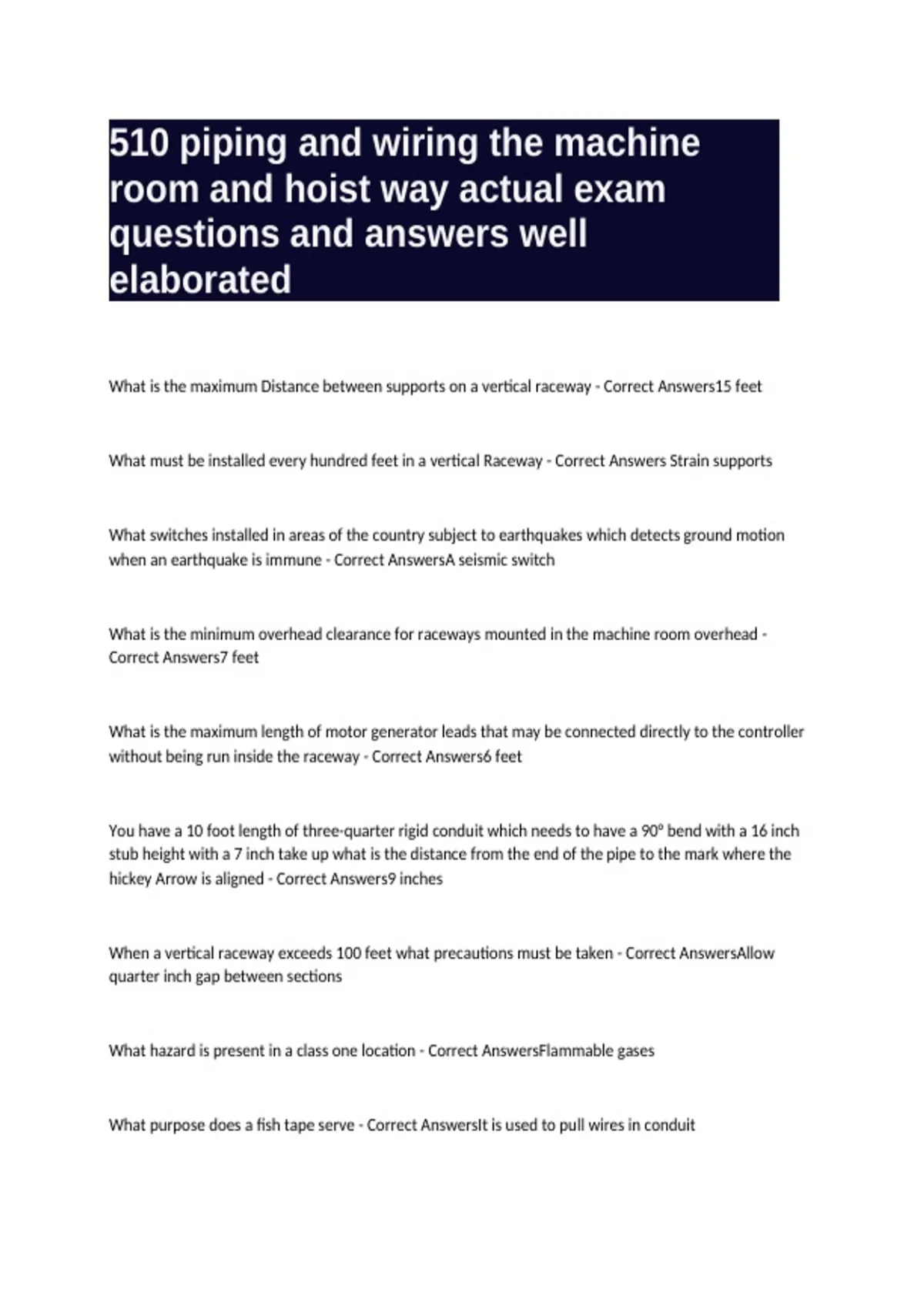

510 piping and wiring the machine room and hoist way actual exam questions and answers well elaborated

What is the maximum Distance between supports on a vertical raceway - Correct Answers15 feet What must be installed every hundred feet in a vertical Raceway - Correct Answers Strain supports What switches installed in areas of the country subject to earthquakes which detects ground motion when an earthquake is immune - Correct AnswersA seismic switch What is the minimum overhead clearance for raceways mounted in the machine room overhead - Correct Answers7 feet What is the maximum length of motor generator leads that may be connected directly to the controller without being run inside the raceway - Correct Answers6 feet You have a 10 foot length of three-quarter rigid conduit which needs to have a 90° bend with a 16 inch stub height with a 7 inch take up what is the distance from the end of the pipe to the mark where the hickey Arrow is aligned - Correct Answers9 inches When a vertical raceway exceeds 100 feet what precautions must be taken - Correct AnswersAllow quarter inch gap between sections What hazard is present in a class one location - Correct AnswersFlammable gases What purpose does a fish tape serve - Correct AnswersIt is used to pull wires in conduit How many threads per inch are on a 10-24 Machine screw - Correct Answers24 Interlocks are always wired in what manner - Correct AnswersSeries Why would you wear a grounding wrist strap - Correct AnswersTo prevent damage to sensitive solid state circuits Which of the following devices are included in a traction elevator safety circuit - Correct AnswersFinal terminal stopping limit and pit stop switch What is the difference between multi cord and hoistway wire and cable - Correct AnswersHoistway wiring cable has no outer jacket What is another name for large ring terminal connectors - Correct AnswersLugs After large wires have been joined how should the connection be finished - Correct AnswersUse rubber tape for insulation and electrical tape for abrasion resistance What is the least number of motor leads that can be found on a three phase AC motor - Correct AnswersThree With standard three phase AC motor lead Marking what is the marking on the other end of the winding that begins at T1 - Correct AnswersT4 What is a common error with using wire nuts - Correct AnswersStripping too much wire Where position indicators are used on several floors they are all connected how - Correct AnswersIn parallel
